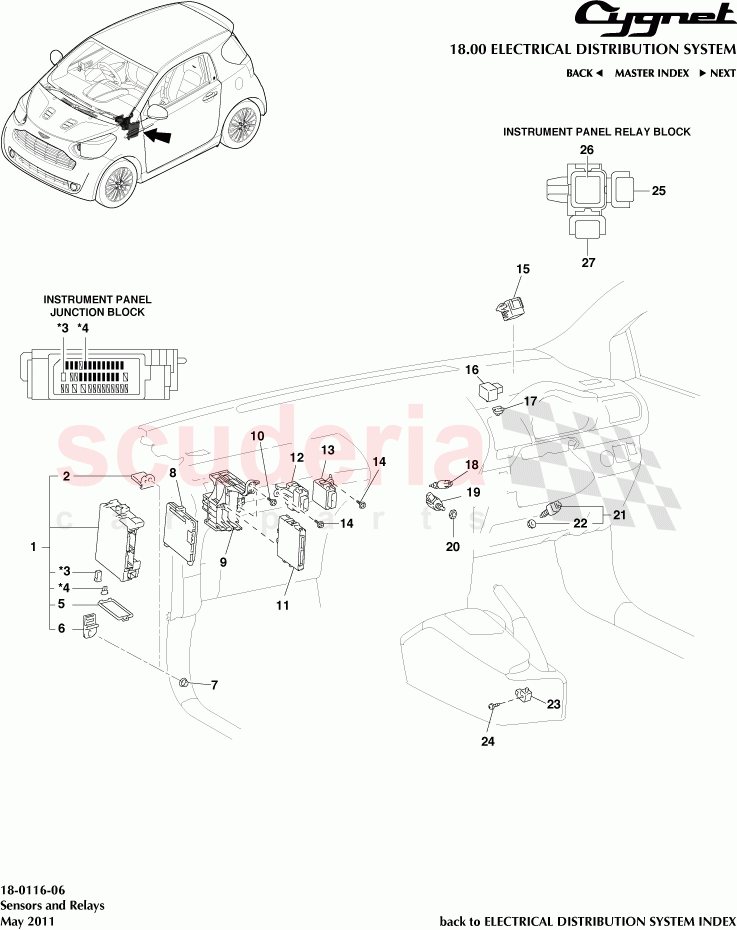

# Part Qty on
Diagram
Price
(each)
Buy
- 82730-74040 - Block Assy, IP, AUTO 1 Enquire
- 90982-08296 - Fusible Link, 50A, Female, COLD CLIMATE SPEC, LHD Enquire
- 90982-08302 - 50A-30A-50A,FEMALE Enquire
- 90982-08306 - Fusible Link, 30A, Terminal:Female, IP J/B $13.90
- 90982-08294 - Fusible Link, 40A, Terminal: Female $13.39
- 90982-08295 - Fusible Link, 30A, Terminal:Female, Engine Room R/B Enquire
- 90982-09020 - Fuse, Fuse Block, 7.5A Mini Fuse $1.24
- 90982-09021 - Fuse, Fuse Block, 10A Mini Fuse $1.24
- 90982-09022 - Fuse, Fuse Block, 15A Mini Fuse $1.24
- 90982-09023 - Fuse, Fuse Block, 20A Mini Fuse $1.24
- 90982-09024 - Fuse, Fuse Block, 25A Mini Fuse $1.24
- 90982-09025 - Fuse, Fuse Block, 30A Mini Fuse $1.24
- 89220-74120 - Computer, Multiplex Network Body, RHD 1 Enquire
- 89220-74030 - Computer, Multiplex Network Body, LHD 1 Enquire
- 89220-74040 - Computer, Multiplex Network Body, COLD CLIMATE SPEC, LHD 1 Enquire
- 82877-74010 - Box, Computer Integration, RHS, LHD 1 Enquire
- 89681-74020 - Computer, Power management Control, Wirless Door Lock Smart Key, AUTO 1 Enquire
14 90159-70003 - Screw, W/Washer, RHD 2 $1.05
1 82730-74060 - Block Assy, IP, MAN 1 Enquire
2 82673-74010 - Bracket, Junction Block 1 Enquire
3 90982-08300 - Fusible Link, 50A-30A-50A, Female, COLD CLIMATE SPEC, LHD Enquire
4 90982-09019 - Fuse, Fuse Block, 5A Mini Fuse $1.24
5 82672-74020 - Cover, Junction Block 1 Enquire
6 82673-74020 - Bracket, Junction Block 1 Enquire
7 94151-80600 - Nut 2 Enquire
8 89220-74060 - Computer, Multiplex Network Body, UK SPEC, RHD 1 Enquire
9 82878-74010 - Box, Computer Integration, LHS, RHD 1 Enquire
10 90159-60613 - Screw, W/Washer 2 $0.75
11 89681-74040 - Computer, Power management Control, Wirless Door Lock Smart Key, MAN 1 Enquire
12 85970-74010 - Relay Assy, Double Lock Door Control, RHD 1 Enquire
13 85940-74010 - Relay Assy, Windshield Wiper 1 Enquire
15 82660-74010 - Block Assy, Relay 1 Enquire
16 81980-46010 - Flasher Assy, Turn Signal 1 Enquire
17 82711-1E320 - Clamp, Wiring 1 $1.39
18 88280-42010 - Switch Assy, Clutch 1 Enquire
19 84520-42010 - Switch Assy, Clutch Start 1 $51.71
20 90170-10017 - Nut 1 $1.07
21 84340-19025 - Switch Assy, Stop Lamp 1 $32.12
22 84345-51010 - Adjuster, Stop Lamp Switch Mounting 1 Enquire
23 84550-16060 - Switch Assy, Parking Brake 1 Enquire
24 93315-14012 - Screw, W/Washer 1 $1.16
27 90987-02027 - Relay, Daytime Running Light System, Cold Climate Spec, LHD 1 Enquire
26 90987-02025 - Relay, Heater, No.1 1 Enquire
