Find Your Part
# Part Qty on
Diagram
Price
(each)
Buy
- 87010-74080 - Unit Assy, Air Conditioner, LHD 1 Enquire
- 87010-74100 - Unit Assy, Air Conditioner, COLD AREA SPEC, LHD 1 Enquire
- 87200-74040 - Accessory Assy, Heater, LHD 1 Enquire
- 87103-74040 - Motor Sub-Assy, Blower W/ Fan, LHD
*11/2008 to 12/2010
1 Enquire
- 87103-74041 - Motor Sub-Assy, Blower W/ Fan, LHD
*From 01/2011
1 Enquire
- 88515-68010 - Valve, Cooler Expansion
*From 10/2010
1 Enquire
- 87106-74040 - Servo Sub-Assy, Damper, No.1, LHD 1 Enquire
- 82212-74020 - Harness Assy, Air Conditioner, LHD 1 Enquire
- 87245-74150 - Hose, Heater Water, Outlet, MAN
*From 03/2011
1 Enquire
16 87245-74101 - Hose, Heater Water, Outlet, AUTO
*05/2009 to 02/2011
1 Enquire
- 87245-74091 - Hose, Heater Water, Inlet, AUTO 1 Enquire
- 88650-74032 - Amplifier Assy, Air Conditioner-Front Air Con-AUTO
*From 11/2010
1 Enquire
- 88650-74041 - Amplifier Assy, Air Conditioner-Front Air Con-Auto, COLD CLIMATE SPEC
*05/2009 to 10/2010
1 Enquire
- 88650-74042 - Amplifier Assy, Air Conditioner-Front Air Con-Auto, COLD CLIMATE SPEC
*From 11/2010
1 Enquire

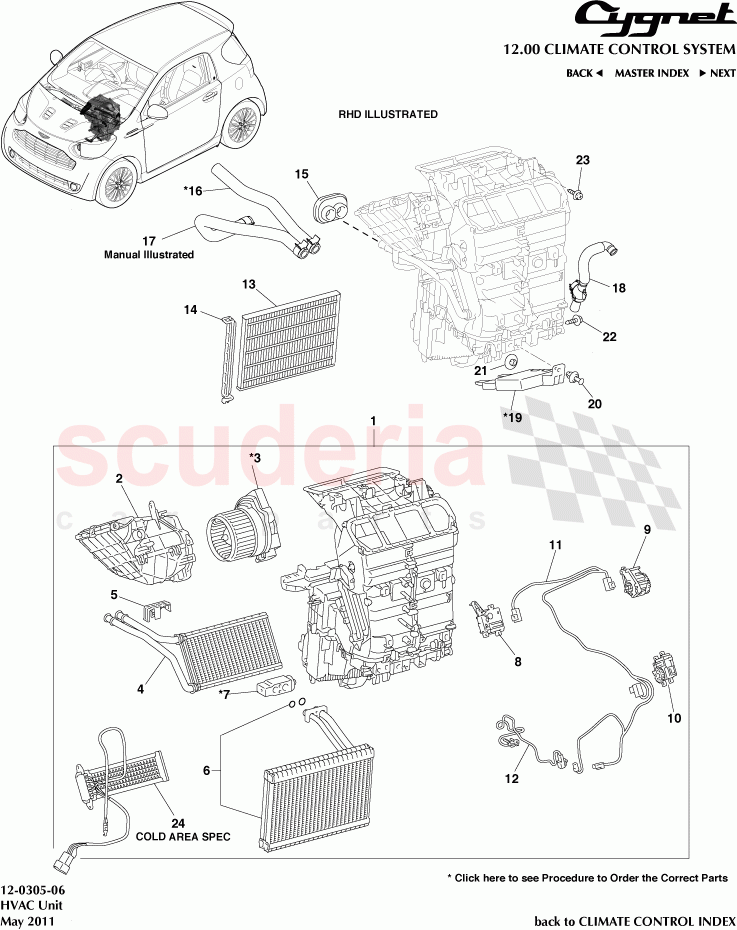

1 87010-74030 - Unit Assy, Air Conditioner, RHD 1 Enquire
2 87200-74020 - Accessory Assy, Heater, RHD 1 Enquire
3 87103-74021 - Motor Sub-Assy, Blower W/ Fan, RHD 1 $306.99
4 87107-74010 - Unit Sub-Assy, Heater Radiator 1 Enquire
5 87237-74010 - Cover, Cooler No.1 1 Enquire
6 88501-74010 - Evaporator Sub-Assy, Cooler, No.1 1 Enquire
7 88515-74010 - Valve, Cooler Expansion
*11/2008 to 10/2010
1 $163.13
8 87106-74030 - Servo Sub-Assy, Damper, No.1, RHD 1 Enquire
9 87106-74020 - Servo Sub-Assy, Damper, (for mode) 1 Enquire
10 87106-74010 - Servo Sub-Assy, Damper, (for airmix) 1 Enquire
11 82212-74010 - Harness Assy, Air Conditioner, RHD 1 Enquire
12 88620-74010 - Thermistor, Cooler, No.1 1 Enquire
13 88568-YZZ01 - AIR FILTER 1 $11.23
14 88548-74010 - Case, Air Filter 1 $6.17
15 87128-74010 - Grommet, Heater 1 $7.44
17 87245-74110 - Hose, Heater Water, Inlet, MAN 1 Enquire
18 88505-74011 - Duct Sub-Assy, Air Conditioner 1 Enquire
19 88650-74031 - Amplifier Assy, Air Conditioner-Front Air Con-AUTO
*05/2009 to 10/2010
1 Enquire
20 90467-07214 - Clip, Front Fender Liner 1 $1.13
21 90179-06282 - Nut 1 $1.13
22 90159-60383 - Screw W/Washer Tapping 1 $1.06
23 90159-70003 - Screw, W/Washer, RHD 2 $1.05
24 87710-74030 - Quick Heater Assy, COLD AREA SPEC 1 Enquire
