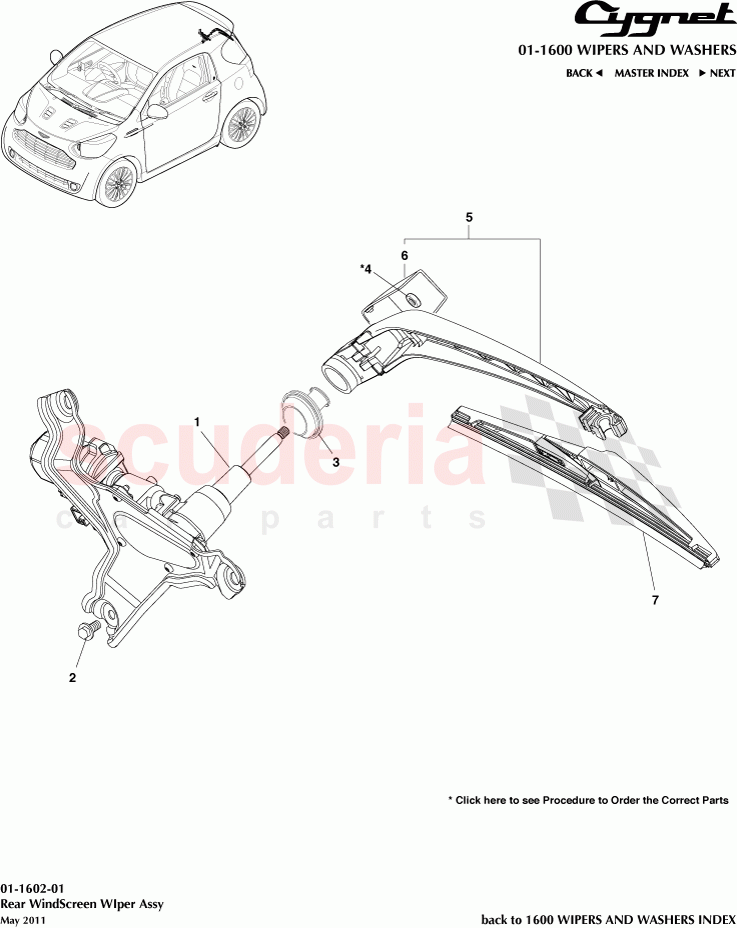

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8513074010	Motor Assy, Rear Wiper	$324.89	To Order

Photo	Part No	Description	Price (each)	Stock
	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	$4.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8514352030	Grommet, Rear Wiper Motor Assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9017906158	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8524174010	Arm, Rear Wiper	$68.49	To Order

Photo	Part No	Description	Price (each)	Stock
	8529242010	Cap, Rear Wiper Arm	$7.22	To Order

Photo	Part No	Description	Price (each)	Stock
	8524212090	Blade, Rear wiper	$18.10	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9415180600	Nut	9415180600 Nut *From 12/2010	-	1	Enquire
1	8513074010	Motor Assy, Rear Wiper	8513074010 Motor Assy, Rear Wiper	$324.89	1
2	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10) IN STOCK	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) IN STOCK	$4.80	3
3	8514352030	Grommet, Rear Wiper Motor Assy	8514352030 Grommet, Rear Wiper Motor Assy	-	1	Enquire
4	9017906158	Nut	9017906158 Nut *To 12/2010	-	1	Enquire
5	8524174010	Arm, Rear Wiper	8524174010 Arm, Rear Wiper	$68.49	1
6	8529242010	Cap, Rear Wiper Arm	8529242010 Cap, Rear Wiper Arm	$7.22	1
7	8524212090	Blade, Rear wiper	8524212090 Blade, Rear wiper	$18.10	1
