Name: Seat rear centre armrest multifunct
Rating: 5.0 (1 reviews)

Seat rear centre armrest multifunct of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023)

View All

Rolls Royce Phantom Extended RR12(2017-2023) - Seat rear centre armrest multifunct

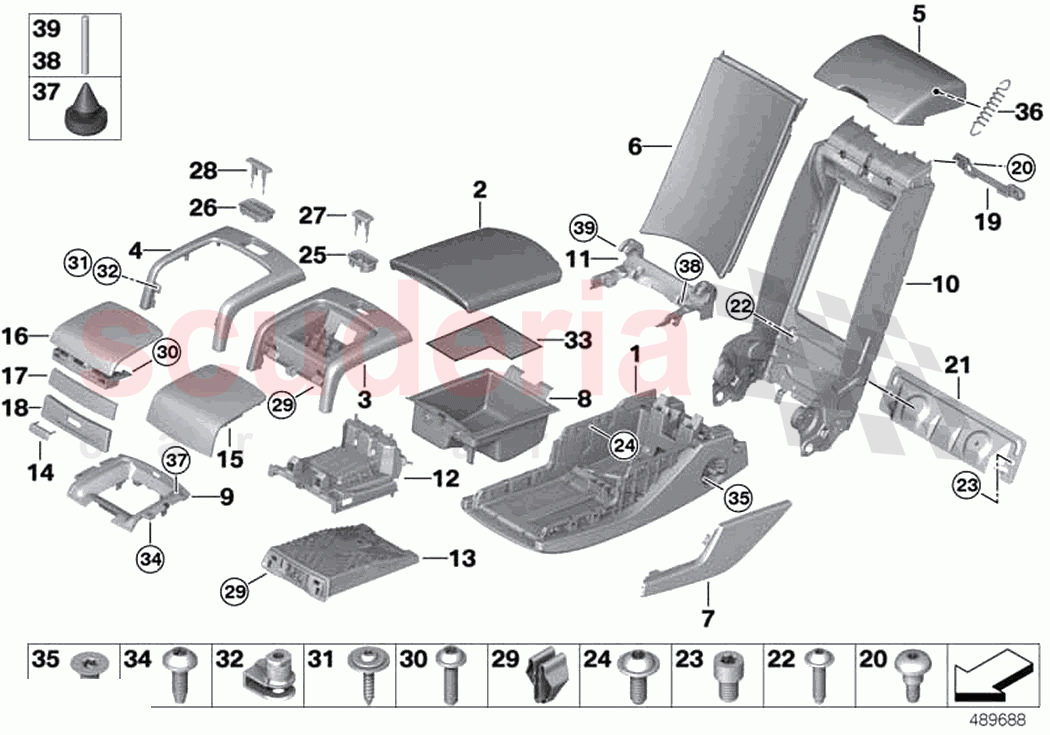

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	52207486176	Armrest lower leather	$1,122.33	To Order

Photo	Part No	Description	Price (each)	Stock
	52207441780	Cover, armrest leather	$668.84	To Order

Photo	Part No	Description	Price (each)	Stock
	52207471564	Cover, leather, front	$701.47	To Order

Photo	Part No	Description	Price (each)	Stock
	52207490104	Backrest upholstery	$580.16	To Order

Photo	Part No	Description	Price (each)	Stock
	52207441786	Protective cover, leather	$452.78	To Order
	52207490112	Protective cover, leather	$968.90	To Order

Photo	Part No	Description	Price (each)	Stock
	52207471591	Trim, armrest, side, left	$591.05	To Order
	52207471592	Trim, armrest, side, right	$591.05	To Order
	52207471587	Trim, armrest, side, left	$473.69	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	52207471529	Center armrest tray	$178.21	To Order

Photo	Part No	Description	Price (each)	Stock
	52207467596	Cover frame	$242.16	To Order

Photo	Part No	Description	Price (each)	Stock
	52207467556	Frame, cover	$702.60	To Order

Photo	Part No	Description	Price (each)	Stock
	52207467613	Supporting bracket	$26.97	To Order

Photo	Part No	Description	Price (each)	Stock
	52207467595	Support for centre armrest	$90.01	To Order

Photo	Part No	Description	Price (each)	Stock
	52207955803	Drink holder	$1,920.82	To Order

Photo	Part No	Description	Price (each)	Stock
	52207481083	Key button	$105.38	To Order

Photo	Part No	Description	Price (each)	Stock
	52207471575	Trim, armrest, wood, top	$3,031.17	To Order

Photo	Part No	Description	Price (each)	Stock
	52207471580	Trim front wood	$728.03	To Order

Photo	Part No	Description	Price (each)	Stock
	52207468270	Trim, drinks holder, wood	$171.31	To Order

Photo	Part No	Description	Price (each)	Stock
	52209182437	Suspension top	$31.82	To Order

Photo	Part No	Description	Price (each)	Stock
	7149159862	Oval-head screw with dog point	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	52207439110	Bracket lower	$158.91	To Order

Photo	Part No	Description	Price (each)	Stock
	7149171963	Oval-head screw with search tip	$1.68	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904655	ISA screw	$2.48	To Order

Photo	Part No	Description	Price (each)	Stock
	7149145029	Torx bolt	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	52207467592	Trim, button	$106.43	To Order

Photo	Part No	Description	Price (each)	Stock
	52207467589	Button rear	$119.20	To Order
	52207467590	Button front	$119.24	To Order

Photo	Part No	Description	Price (each)	Stock
	7147321144	Clamp	$0.98	To Order

Photo	Part No	Description	Price (each)	Stock
	54107055524	Fillister head screw	$2.07	To Order

Photo	Part No	Description	Price (each)	Stock
	7149240740	Fillister head screw	$0.85	To Order

Photo	Part No	Description	Price (each)	Stock
	7149200938	C-clip plastic nut	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	52207498335	Storing partition insert	$587.73	To Order

Photo	Part No	Description	Price (each)	Stock
	7147122390	Fillister head screw	$0.85	To Order

Photo	Part No	Description	Price (each)	Stock
	54128169957	Torx-countersunk screw	$3.72	To Order

Photo	Part No	Description	Price (each)	Stock
	52207304621	Tension spring	$3.67	To Order

Photo	Part No	Description	Price (each)	Stock
	52207304656	Bump stop	$35.63	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907938	Groove pin	$4.21	To Order

Photo	Part No	Description	Price (each)	Stock
	7119908053	Dowel pin	$3.29	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	52207938100	Spring, drink holder	52207938100 Spring, drink holder	$0.85	1
-	52207304619	Spring	52207304619 Spring	$3.01	1
-	52207304620	Spring	52207304620 Spring	$3.49	1
-	52207467591	Slider	52207467591 Slider	$9.53	1
-	52207471551	Slider	52207471551 Slider	$9.53	1
1	52207486176	Armrest lower leather	52207486176 Armrest lower leather COLOUR NEUTRAL	$1,122.33	1
2	52207441780	Cover, armrest leather	52207441780 Cover, armrest leather COLOUR NEUTRAL	$668.84	1
4	52207471564	Cover, leather, front	52207471564 Cover, leather, front COLOUR NEUTRAL	$701.47	1
5	52207490104	Backrest upholstery	52207490104 Backrest upholstery COLOUR NEUTRAL	$580.16	1
6	52207441786	Protective cover, leather	52207441786 Protective cover, leather COLOUR NEUTRAL	$452.78	1
6	52207490112	Protective cover, leather	52207490112 Protective cover, leather COLOUR NEUTRAL	$968.90	1
7	52207471591	Trim, armrest, side, left	52207471591 Trim, armrest, side, left COLOUR NEUTRAL	$591.05	1
7	52207471592	Trim, armrest, side, right	52207471592 Trim, armrest, side, right COLOUR NEUTRAL	$591.05	1
7	52207471587	Trim, armrest, side, left	52207471587 Trim, armrest, side, left COLOUR NEUTRAL	$473.69	1
7	52207471588	Trim, armrest, side, right	52207471588 Trim, armrest, side, right COLOUR NEUTRAL	$473.69	1
8	52207471529	Center armrest tray	52207471529 Center armrest tray	$178.21	1
9	52207467596	Cover frame	52207467596 Cover frame	$242.16	1
10	52207467556	Frame, cover	52207467556 Frame, cover	$702.60	1
11	52207467613	Supporting bracket	52207467613 Supporting bracket	$26.97	1
12	52207467595	Support for centre armrest	52207467595 Support for centre armrest	$90.01	1
13	52207955803	Drink holder	52207955803 Drink holder	$1,920.82	1
14	52207481083	Key button	52207481083 Key button CHROM	$105.38	1
16	52207471575	Trim, armrest, wood, top	52207471575 Trim, armrest, wood, top QUOTE VENEER	$3,031.17	1
17	52207471580	Trim front wood	52207471580 Trim front wood QUOTE VENEER	$728.03	1
18	52207468270	Trim, drinks holder, wood	52207468270 Trim, drinks holder, wood QUOTE VENEER	$171.31	1
19	52209182437	Suspension top	52209182437 Suspension top	$31.82	1
20	7149159862	Oval-head screw with dog point	7149159862 Oval-head screw with dog point M6X10	$1.65	2
21	52207439110	Bracket lower	52207439110 Bracket lower	$158.91	1
22	7149171963	Oval-head screw with search tip	7149171963 Oval-head screw with search tip M8X35	$1.68	2
23	7129904655	ISA screw	7129904655 ISA screw M8X12-ZNS3	$2.48	2
24	7149145029	Torx bolt	7149145029 Torx bolt 2,8X10MM	$1.54	-
26	52207467592	Trim, button	52207467592 Trim, button	$106.43	1
28	52207467589	Button rear	52207467589 Button rear	$119.20	1
28	52207467590	Button front	52207467590 Button front	$119.24	1
29	7147321144	Clamp	7147321144 Clamp	$0.98	4
30	54107055524	Fillister head screw	54107055524 Fillister head screw 4X15	$2.07	4
31	7149240740	Fillister head screw	7149240740 Fillister head screw 4X20	$0.85	2
32	7149200938	C-clip plastic nut	7149200938 C-clip plastic nut	$0.76	2
33	52207498335	Storing partition insert	52207498335 Storing partition insert COLOUR NEUTRAL	$587.73	1
34	7147122390	Fillister head screw	7147122390 Fillister head screw 4X12MM	$0.85	4
35	54128169957	Torx-countersunk screw	54128169957 Torx-countersunk screw ISA L=9.5MM	$3.72	4
36	52207304621	Tension spring	52207304621 Tension spring	$3.67	1
37	52207304656	Bump stop	52207304656 Bump stop	$35.63	2
38	7119907938	Groove pin	7119907938 Groove pin 4X35-ST-PHR	$4.21	2
39	7119908053	Dowel pin	7119908053 Dowel pin M6X35-ST-PHR	$3.29	2

Seat Rear Centre Armrest Multifunct

Rolls Royce Phantom Extended RR12(2017-2023)

Rolls Royce Phantom Extended RR12(2017-2023) - Seat rear centre armrest multifunct

Add to Shopping Cart
