Seat Rear Seat Frame Comfort Seat

Rolls Royce Phantom Extended RR12(2017-2023)

Find Your Part

Rolls Royce Phantom Extended RR12(2017-2023) - Seat rear seat frame comfort seat

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
52207454553 Seat mechanism, comfort seat, left $4,053.04 To Order
52207454554 Seat mechanism, comfort seat, right $4,053.04 To Order
Photo Part No Description Price (each) Stock
52207454555 Seat pan left $809.79 To Order
52207454556 Seat pan, right $809.79 To Order
Photo Part No Description Price (each) Stock
52209475297 Seat pan left $5,002.86 To Order
52209475298 Seat pan, right $5,002.86 To Order
Photo Part No Description Price (each) Stock
52207433380 Mechanics foot rest $12,375.94 To Order
Photo Part No Description Price (each) Stock
52207451158 Cover $12.14 To Order
Photo Part No Description Price (each) Stock
52207416011 Rear panel backrest upper section $138.33 To Order
Photo Part No Description Price (each) Stock
52207467893 Slot cover, left $235.03 To Order
52207467894 Slot cover, right $235.03 To Order
Photo Part No Description Price (each) Stock
52207479273 Cable holder $5.51 To Order
Photo Part No Description Price (each) Stock
54619907089 Torx bolt $1.66 To Order
Photo Part No Description Price (each) Stock
52207462168 Oval-head screw with washer $10.10 To Order
Photo Part No Description Price (each) Stock
7129905095 Hex nut $1.88 IN STOCK
Photo Part No Description Price (each) Stock
52207220722 Fixing kit, clips $15.87 To Order
Photo Part No Description Price (each) Stock
52207070497 Repair kit f buffer and sliding piece $51.16 To Order
Photo Part No Description Price (each) Stock
7129908644 ISA screw $10.82 To Order
Photo Part No Description Price (each) Stock
61138038489 Plug-in connection bracket $4.15 To Order
Photo Part No Description Price (each) Stock
61131378908 Bracket, plug connection black $3.24 To Order
Photo Part No Description Price (each) Stock
7147950592 Washer $10.61 To Order
Photo Part No Description Price (each) Stock
7147450108 ISA screw $2.37 To Order
View All

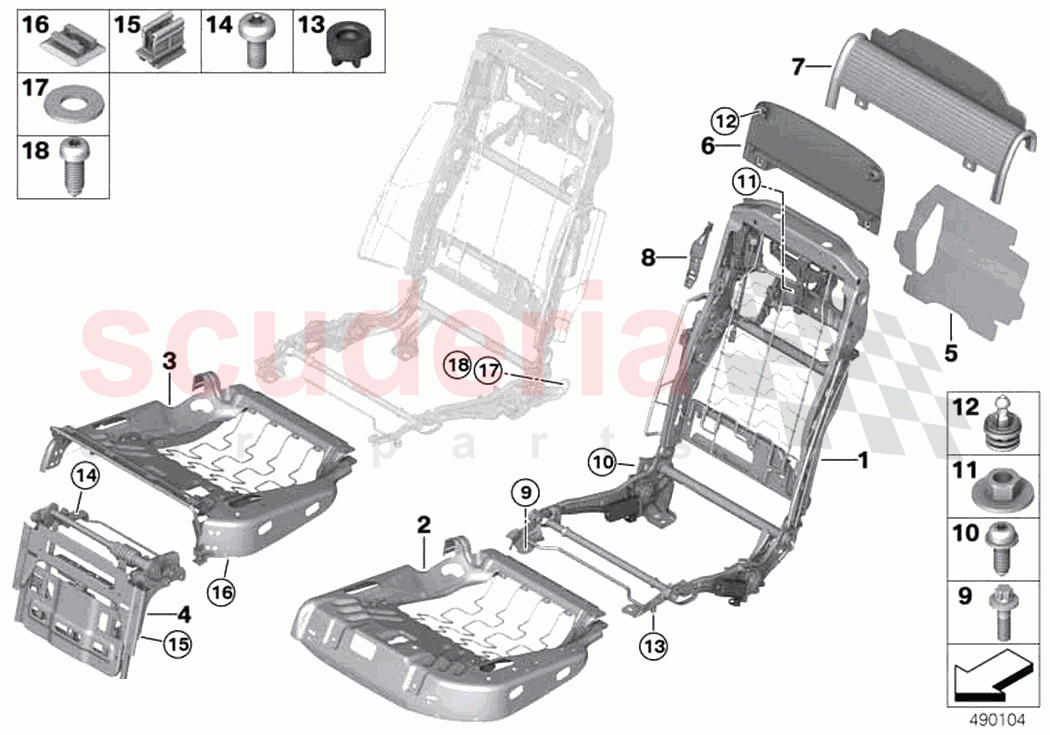

Seat rear seat frame comfort seat of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 52207454553
Seat mechanism, comfort seat, left 		$4,053.04 1
1 52207454554
Seat mechanism, comfort seat, right 		$4,053.04 1
2 52207454555
Seat pan left 		$809.79 1
2 52207454556
Seat pan, right 		$809.79 1
3 52209475297
Seat pan left 		$5,002.86 1
3 52209475298
Seat pan, right 		$5,002.86 1
4 52207433380
Mechanics foot rest 		$12,375.94 2
5 52207451158
Cover 		$12.14 2
6 52207416011
Rear panel backrest upper section
SCHWARZ 		$138.33 2
7 52207467893
Slot cover, left 		$235.03 1
7 52207467894
Slot cover, right 		$235.03 1
8 52207479273
Cable holder 		$5.51 2
9 54619907089
Torx bolt
M8X20 ZNS3 		$1.66 8
10 52207462168
Oval-head screw with washer
ISA M12 X 27 		$10.10 2
11 7129905095
Hex nut
BM8-8-ZNS3
IN STOCK 		$1.88 6
12 52207220722
Fixing kit, clips 		$15.87 4
13 52207070497
Repair kit f buffer and sliding piece 		$51.16 4
14 7129908644
ISA screw
M8X16 10.9 ZNS3 		$10.82 4
15 61138038489
Plug-in connection bracket 		$4.15 2
16 61131378908
Bracket, plug connection black 		$3.24 2
17 7147950592
Washer
13-300 HV-ZNS3 		$10.61 2
18 7147450108
ISA screw
M12 X 27 ZNS3 		$2.37 2
