Name: Seat rear electrical system and drives
Rating: 5.0 (1 reviews)

View All

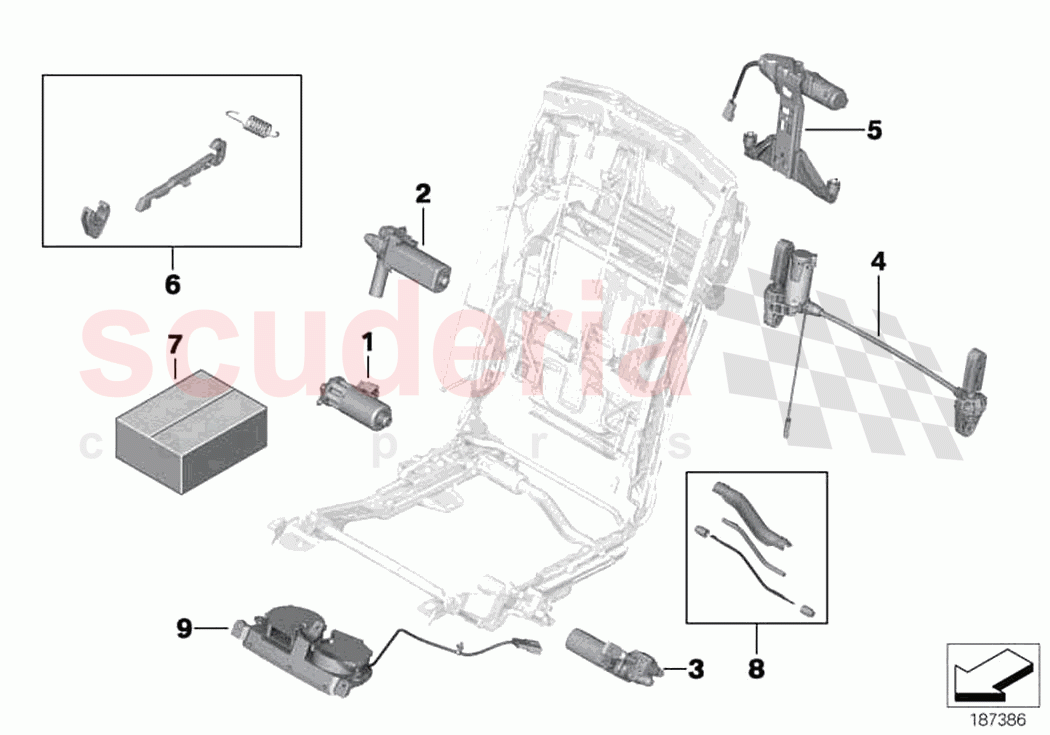

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	52209181793	Drive, longitudinal seat adjustment left	$377.92	To Order

Photo	Part No	Description	Price (each)	Stock
	52209181815	Drive, backrest angle adjustment, left	$314.94	To Order
	52209181816	Drive, backrest angle adjustment, right	$314.94	To Order

Photo	Part No	Description	Price (each)	Stock
	52209181813	Drive, seat angle adjustment left	$377.92	To Order
	52209181814	Drive, seat angle adjustment right	$377.92	To Order

Photo	Part No	Description	Price (each)	Stock
	52209181817	Actuator f upper backrest adjustment	$314.94	To Order

Photo	Part No	Description	Price (each)	Stock
	52209181795	Drive, vertical headrest adjustment	$283.44	To Order

Photo	Part No	Description	Price (each)	Stock
	52209181836	Repair kit, seat frame	$12.55	To Order

Photo	Part No	Description	Price (each)	Stock
	52209181838	Fixing kit, drive units	$84.12	To Order

Photo	Part No	Description	Price (each)	Stock
	52209181808	Set of flexible shafts	$116.33	To Order

Photo	Part No	Description	Price (each)	Stock
	52209164295	Fan	$301.55	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	52209181793	Drive, longitudinal seat adjustment left	52209181793 Drive, longitudinal seat adjustment left	$377.92	2
2	52209181815	Drive, backrest angle adjustment, left	52209181815 Drive, backrest angle adjustment, left	$314.94	1
2	52209181816	Drive, backrest angle adjustment, right	52209181816 Drive, backrest angle adjustment, right	$314.94	1
3	52209181813	Drive, seat angle adjustment left	52209181813 Drive, seat angle adjustment left	$377.92	1
3	52209181814	Drive, seat angle adjustment right	52209181814 Drive, seat angle adjustment right	$377.92	1
4	52209181817	Actuator f upper backrest adjustment	52209181817 Actuator f upper backrest adjustment	$314.94	2
5	52209181795	Drive, vertical headrest adjustment	52209181795 Drive, vertical headrest adjustment	$283.44	2
6	52209181836	Repair kit, seat frame	52209181836 Repair kit, seat frame	$12.55	2
7	52209181838	Fixing kit, drive units	52209181838 Fixing kit, drive units	$84.12	2
8	52209181808	Set of flexible shafts	52209181808 Set of flexible shafts	$116.33	2
9	52209164295	Fan	52209164295 Fan	$301.55	2

Seat Rear Electrical System And Drives

Rolls Royce Ghost RR4(2017-2019)
