Brake Pipe Front

Rolls Royce Ghost RR4(2017-2019)

Find Your Part

Rolls Royce Ghost RR4(2017-2019) - Brake pipe front

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
34306782561 Pipeline with pressure hose $193.08 To Order
Photo Part No Description Price (each) Stock
34306782560 Pipeline with pressure hose $198.74 To Order
Photo Part No Description Price (each) Stock
34306795279 Pipe with protective hose $222.51 To Order
Photo Part No Description Price (each) Stock
34306782556 Pipe with protective hose $206.58 To Order
Photo Part No Description Price (each) Stock
34326783530 Connector, quadruple $23.35 To Order
Photo Part No Description Price (each) Stock
34326775108 Pipe $44.09 To Order
34326792643 Pipe $44.09 To Order
Photo Part No Description Price (each) Stock
34326775112 Pipe $44.09 To Order
34326792645 Pipe $44.09 To Order
Photo Part No Description Price (each) Stock
34326775103 Pipe $44.09 To Order
34326792649 Pipe $44.09 To Order
Photo Part No Description Price (each) Stock
34326775105 Pipe $44.09 To Order
34326792647 Pipe $44.09 To Order
Photo Part No Description Price (each) Stock
34326788481 Brake hose front $110.92 To Order
34326853414 Brake hose front $191.76 To Order
Photo Part No Description Price (each) Stock
34341163565 Clip $4.52 To Order
Photo Part No Description Price (each) Stock
34326782683 Bracket, brake pipe, double $9.61 To Order
Photo Part No Description Price (each) Stock
34326793237 Brake pipe bracket $11.51 To Order
Photo Part No Description Price (each) Stock
34306766380 Retaining clip $0.97 To Order
Photo Part No Description Price (each) Stock
34326855500 Brake pipe bracket $1.32 To Order
Photo Part No Description Price (each) Stock
34326783529 Cover $13.24 To Order
Photo Part No Description Price (each) Stock
34306784201 Line clip, double $3.76 To Order
34326871117 Line clip, double $1.32 To Order
Photo Part No Description Price (each) Stock
34326757257 Line clip, single $3.76 To Order
View All

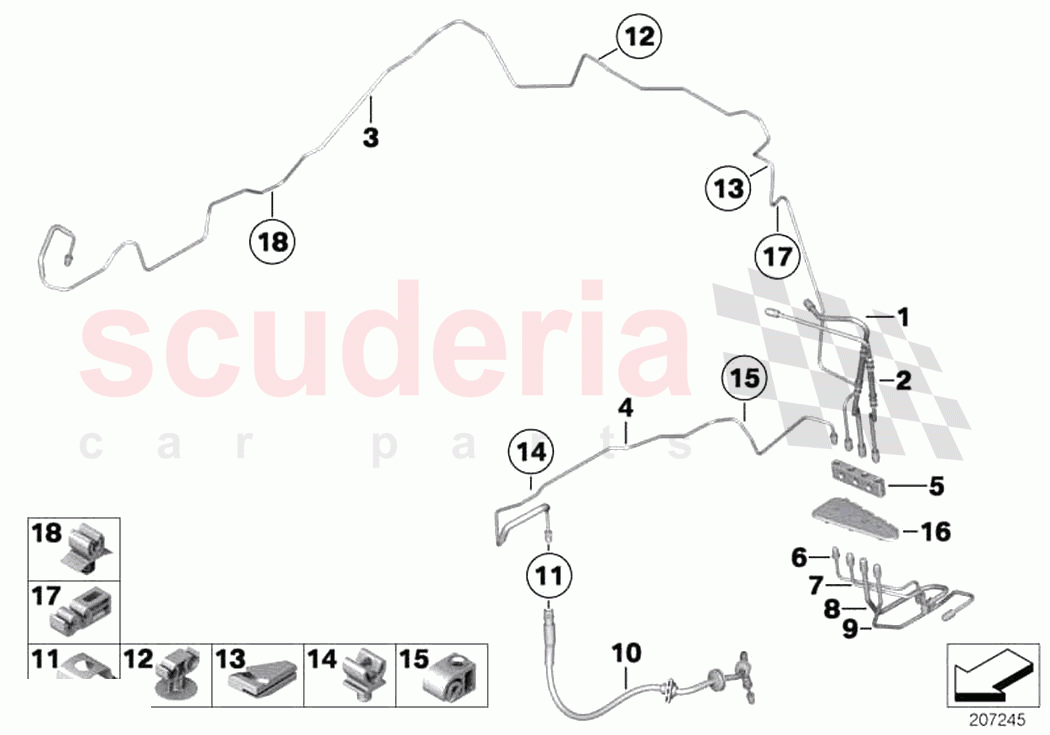

Brake pipe front of Rolls Royce Rolls Royce Ghost RR4(2017-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 34306782561
Pipeline with pressure hose
M12/M12 		$193.08 1
2 34306782560
Pipeline with pressure hose
M12/M12 		$198.74 1
3 34306795279
Pipe with protective hose
M10/M12 		$222.51 1
4 34306782556
Pipe with protective hose
M10/M10 		$206.58 1
5 34326783530
Connector, quadruple 		$23.35 1
6 34326775108
Pipe
M10/M10; from 08.2012 		$44.09 1
6 34326792643
Pipe
to 08.2012 		$44.09 1
7 34326775112
Pipe
M12/M12; from 08.2012 		$44.09 1
7 34326792645
Pipe
to 08.2012 		$44.09 1
8 34326775103
Pipe
D=8MM; from 08.2012 		$44.09 1
8 34326792649
Pipe
to 08.2012 		$44.09 1
9 34326775105
Pipe
D=8MM; from 08.2012 		$44.09 1
9 34326792647
Pipe
to 08.2012 		$44.09 1
10 34326788481
Brake hose front
from 09.2011 		$110.92 2
10 34326853414
Brake hose front
to 09.2011 		$191.76 2
11 34341163565
Clip 		$4.52 2
12 34326782683
Bracket, brake pipe, double 		$9.61 2
13 34326793237
Brake pipe bracket 		$11.51 1
14 34306766380
Retaining clip 		$0.97 2
15 34326855500
Brake pipe bracket 		$1.32 1
16 34326783529
Cover 		$13.24 1
17 34306784201
Line clip, double
from 07.2015 		$3.76 1
17 34326871117
Line clip, double 		$1.32 1
18 34326757257
Line clip, single 		$3.76 1
