Name: Brake pipe rear
Rating: 5.0 (1 reviews)

View All

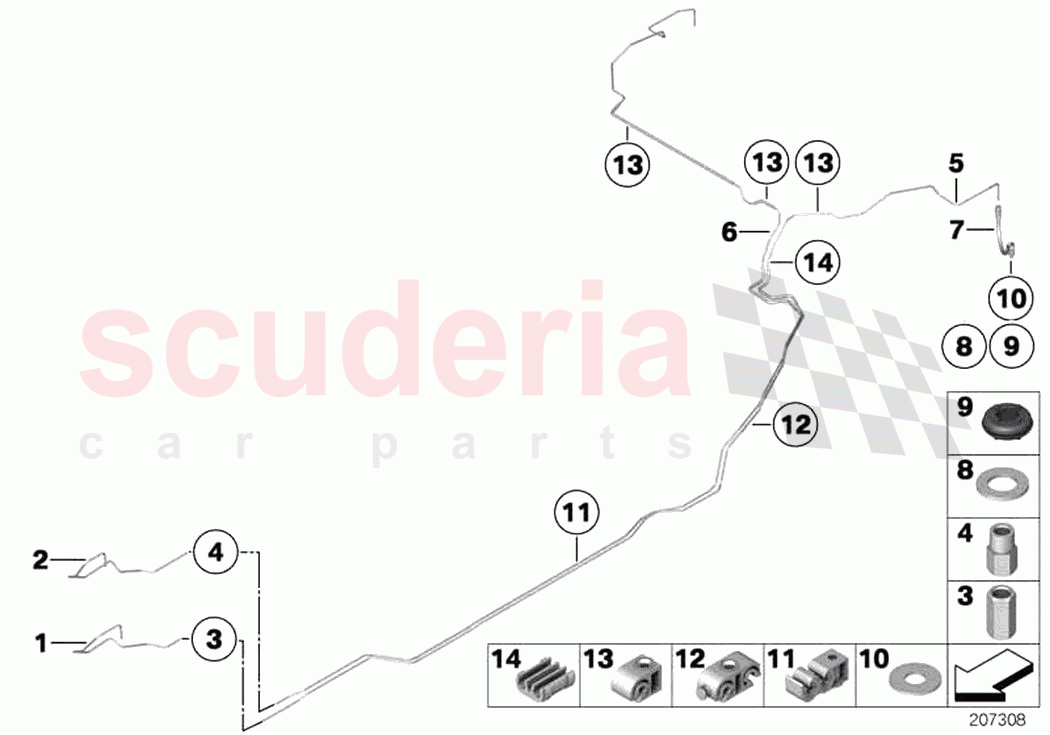

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	34326868935	Connection piece	$10.14	To Order

Photo	Part No	Description	Price (each)	Stock
	34326868934	Connection piece	$10.39	To Order

Photo	Part No	Description	Price (each)	Stock
	34326789263	Brake hose rear	$50.50	To Order

Photo	Part No	Description	Price (each)	Stock
	34301163613	Washer	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	34306865954	Rubber grommet	$4.11	To Order

Photo	Part No	Description	Price (each)	Stock
	37131114028	Washer	$2.29	To Order

Photo	Part No	Description	Price (each)	Stock
	34326880898	Brake pipe bracket	$4.70	To Order

Photo	Part No	Description	Price (each)	Stock
	34326855500	Brake pipe bracket	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	34321107991	Spacer holder	$5.27	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	34326789228	Pipe	34326789228 Pipe M12/M12	$44.20	1
1	34326792651	Pipe	34326792651 Pipe M12/M12	$44.20	1
2	34326789230	Pipe	34326789230 Pipe M10/M10	$44.20	1
2	34326792653	Pipe	34326792653 Pipe M10/M12	$44.20	1
3	34326868935	Connection piece	34326868935 Connection piece M12X1	$10.14	1
4	34326868934	Connection piece	34326868934 Connection piece M10X1	$10.39	1
5	34306782568	Pipe with protective hose	34306782568 Pipe with protective hose M10/M12	$146.49	1
5	34306794129	Pipe with protective hose	34306794129 Pipe with protective hose M10/M12	$146.49	1
6	34306782570	Pipe with protective hose	34306782570 Pipe with protective hose M10/M10	$170.01	1
6	34306794131	Pipe with protective hose	34306794131 Pipe with protective hose M10/M10	$170.01	1
7	34326789263	Brake hose rear	34326789263 Brake hose rear	$50.50	2
8	34301163613	Washer	34301163613 Washer 14X25X2-ZNS3	$1.94	2
9	34306865954	Rubber grommet	34306865954 Rubber grommet to 09.2013	$4.11	1
10	37131114028	Washer	37131114028 Washer 10X25X1,5-ZNS3	$2.29	2
11	34306784201	Line clip, double	34306784201 Line clip, double from 07.2015	$3.77	1
11	34326871117	Line clip, double	34326871117 Line clip, double	$1.32	1
12	34326880898	Brake pipe bracket	34326880898 Brake pipe bracket from 06.2019	$4.70	4
13	34326855500	Brake pipe bracket	34326855500 Brake pipe bracket	$1.32	1
14	34321107991	Spacer holder	34321107991 Spacer holder	$5.27	1

Brake Pipe Rear

Rolls Royce Ghost RR4(2017-2019)
