Find Your Part

View All

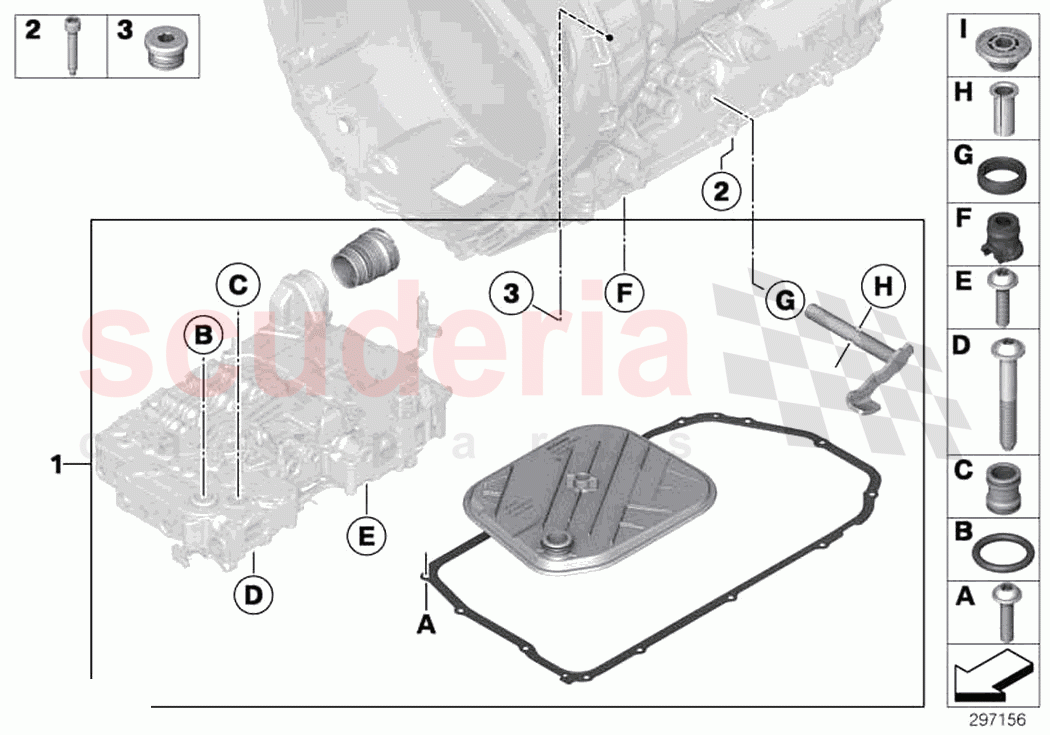

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	24507624191	Repair kit selector rod	$615.49	To Order

Photo	Part No	Description	Price (each)	Stock
	24507588756	Fillister-head screw, micro-encapsulated	$10.95	To Order

Photo	Part No	Description	Price (each)	Stock
	24117552349	Screw plug with gasket ring	$9.95	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	24507624191	Repair kit selector rod	24507624191 Repair kit selector rod from 08.2016	$615.49	1
2	24507588756	Fillister-head screw, micro-encapsulated	24507588756 Fillister-head screw, micro-encapsulated M6X31,2; from 08.2016	$10.95	1
3	24117552349	Screw plug with gasket ring	24117552349 Screw plug with gasket ring M18X1,5; from 08.2016	$9.95	1
