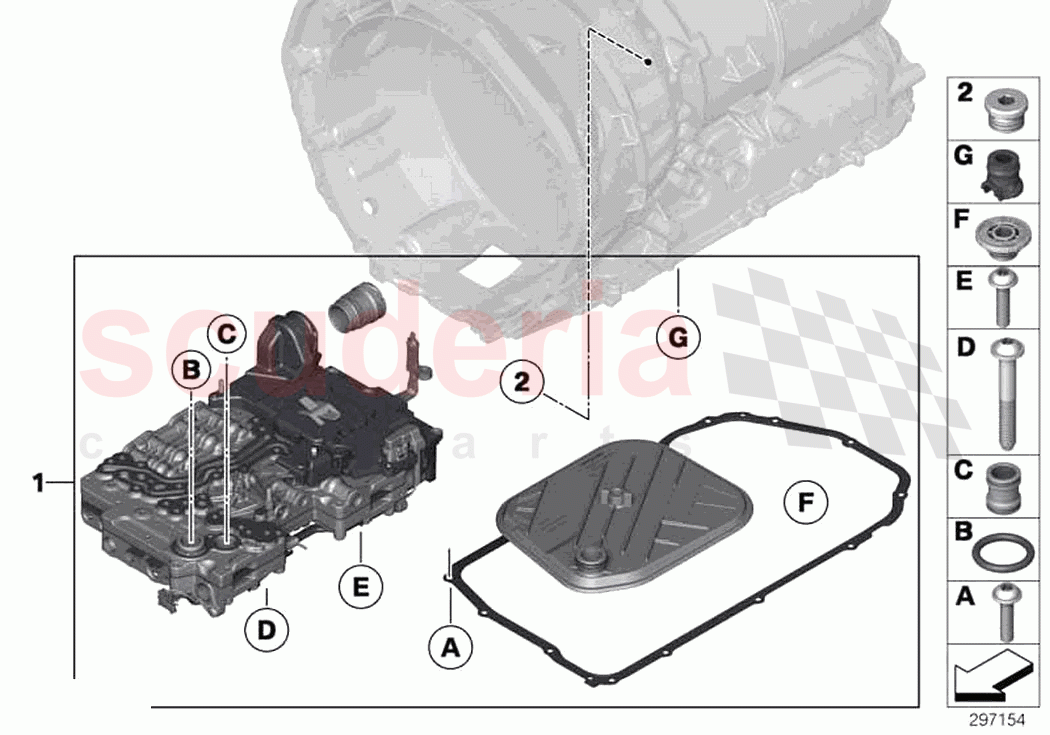

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	24348612900	RP Repair kit mechatronics	$5,202.63	To Order
	24348687817	RP REMAN repair kit mechatronics	$3,933.39	To Order

Photo	Part No	Description	Price (each)	Stock
	24117552349	Screw plug with gasket ring	$9.97	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	24348612900	RP Repair kit mechatronics	24348612900 RP Repair kit mechatronics from 08.2016	$5,202.63	1
1	24348687817	RP REMAN repair kit mechatronics	24348687817 RP REMAN repair kit mechatronics from 08.2016	$3,933.39	1
2	24117552349	Screw plug with gasket ring	24117552349 Screw plug with gasket ring M18X1,5; from 08.2016	$9.97	1
