Name: Fuel tank mounting parts
Rating: 5.0 (1 reviews)

View All

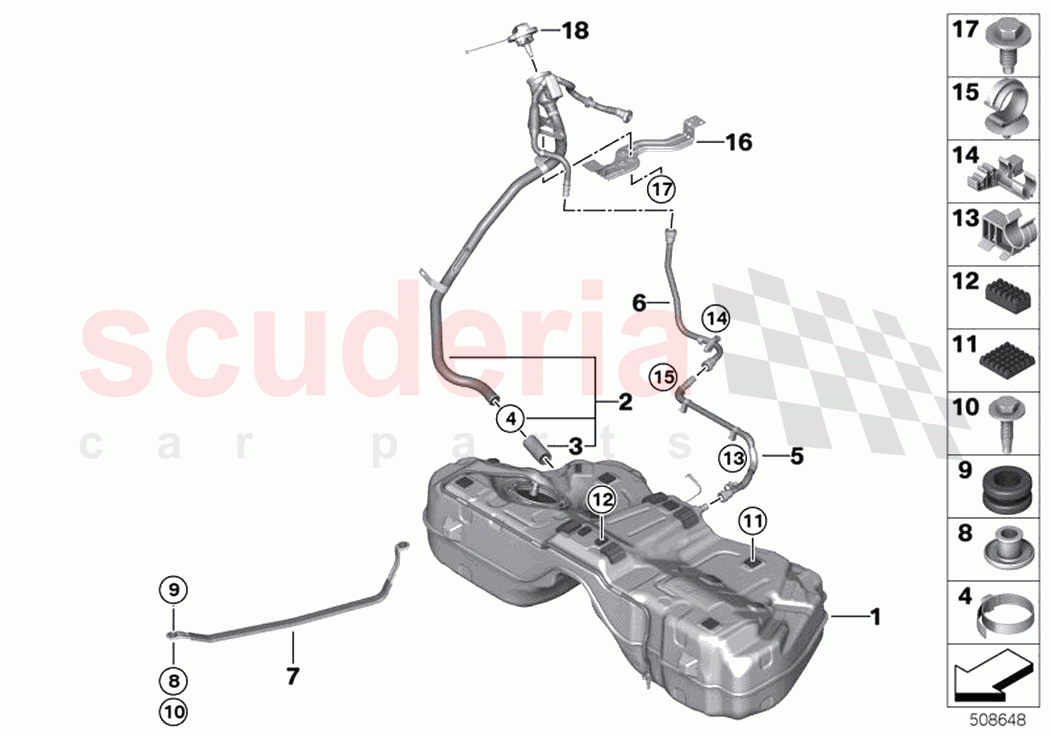

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16118488082	Metal fuel tank	$9,059.59	To Order

Photo	Part No	Description	Price (each)	Stock
	16117446737	Filler pipe, metal	$1,350.53	To Order

Photo	Part No	Description	Price (each)	Stock
	16117468993	Filler pipe	$144.72	To Order

Photo	Part No	Description	Price (each)	Stock
	7129952117	Hose clamp	$1.81	To Order

Photo	Part No	Description	Price (each)	Stock
	16137446750	Vent pipe, fuel	$94.41	To Order

Photo	Part No	Description	Price (each)	Stock
	16137415283	Vent pipe, fuel	$96.62	To Order

Photo	Part No	Description	Price (each)	Stock
	16117415282	Tension strap	$159.02	To Order

Photo	Part No	Description	Price (each)	Stock
	16117194458	Spacer	$3.36	To Order

Photo	Part No	Description	Price (each)	Stock
	16111182454	Rubber grommet	$3.03	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906672	Hex Bolt	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	16117328084	Base	$38.78	To Order

Photo	Part No	Description	Price (each)	Stock
	16117847362	Base	$39.78	To Order

Photo	Part No	Description	Price (each)	Stock
	16127313557	Line clip, single	$1.33	To Order

Photo	Part No	Description	Price (each)	Stock
	16127407367	Clip	$3.78	To Order

Photo	Part No	Description	Price (each)	Stock
	12521747181	Cable holder	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	7149182436	Hex Bolt with washer	$1.17	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
01	16118488082	Metal fuel tank	16118488082 Metal fuel tank 90L	$9,059.59	1
02	16117446737	Filler pipe, metal	16117446737 Filler pipe, metal	$1,350.53	1
03	16117468993	Filler pipe	16117468993 Filler pipe	$144.72	1
04	7129952117	Hose clamp	7129952117 Hose clamp L37-43	$1.81	2
05	16137446750	Vent pipe, fuel	16137446750 Vent pipe, fuel	$94.41	1
06	16137415283	Vent pipe, fuel	16137415283 Vent pipe, fuel	$96.62	1
07	16117415282	Tension strap	16117415282 Tension strap	$159.02	2
08	16117194458	Spacer	16117194458 Spacer	$3.36	4
09	16111182454	Rubber grommet	16111182454 Rubber grommet	$3.03	4
10	7119906672	Hex Bolt	7119906672 Hex Bolt M8X30-PF-U2-8.8	$1.31	4
11	16117328084	Base	16117328084 Base	$38.78	7
12	16117847362	Base	16117847362 Base	$39.78	2
13	16127313557	Line clip, single	16127313557 Line clip, single D16-18	$1.33	4
14	16127407367	Clip	16127407367 Clip	$3.78	1
15	12521747181	Cable holder	12521747181 Cable holder	$1.37	1
17	7149182436	Hex Bolt with washer	7149182436 Hex Bolt with washer M6X18	$1.17	3
18	16117470341	Filler cap IN STOCK	16117470341 Filler cap IN STOCK	$33.52	1
18	16117493051	Filler cap	16117493051 Filler cap	$797.08	1
18	16117482902	Filler cap	16117482902 Filler cap	$33.52	1

Fuel Tank Mounting Parts

Rolls Royce Cullinan RR31(2017-2023)
