2 - Mid Structures - 2.1 - Monocoque

McLaren Senna GTR

Find Your Part

McLaren Senna GTR - 2 - MID STRUCTURES - 2.1 - MONOCOQUE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA311 Screw - M6x16 - Hex Socket Enquire To Order
Photo Part No Description Price (each) Stock
11A7142CP BRACKET - DAMPER MOUNTING - LH $211.61 To Order
11A7143CP BRACKET - DAMPER MOUNTING - RH $211.61 To Order
Photo Part No Description Price (each) Stock
11A5734CP BLANKING PLUG - CIRCULAR - 42MM $10.56 To Order
Photo Part No Description Price (each) Stock
11A5735CP BLANKING PLUG - OVAL - 74MM X 37MM $10.56 To Order
Photo Part No Description Price (each) Stock
11A7572CP NUT PLATE - A-POST - M8 $48.08 To Order
Photo Part No Description Price (each) Stock
11A7573CP NUT PLATE - B-POST - M8 $48.08 To Order
Photo Part No Description Price (each) Stock
00RG023 GROMMET - CHILD ANCHORAGE BRACKET HOLES Enquire To Order
Photo Part No Description Price (each) Stock
00RA522 BOLT - BUTTON HEAD - TORX - M5X16 Enquire To Order
Photo Part No Description Price (each) Stock
11A7484CP CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE Enquire To Order
Photo Part No Description Price (each) Stock
00RG064 COVER PLUG - M9 BLACK Enquire To Order
Photo Part No Description Price (each) Stock
15AD019CP TUB - BLACK DECAL - 120MM X 62MM $4.95 To Order
Photo Part No Description Price (each) Stock
11A5736CP PLUG - TUB DATUM $6.92 To Order
Photo Part No Description Price (each) Stock
12A3945RP SEATBELT MOUNT TOPHAT FLOOR Enquire To Order
Photo Part No Description Price (each) Stock
12A3958RP SEATBELT MOUNT TOPHAT TUNNEL Enquire To Order
Photo Part No Description Price (each) Stock
ZZTA079QP M8X45 UNBRAKO SHCS $2.30 To Order
Photo Part No Description Price (each) Stock
A1BA121QP STUD FTWB INBD M10 $86.01 To Order
Photo Part No Description Price (each) Stock
14A1365CP DOP INSERT Enquire To Order
Photo Part No Description Price (each) Stock
14A2258CP GAS STRUT INSERT Enquire To Order
View All

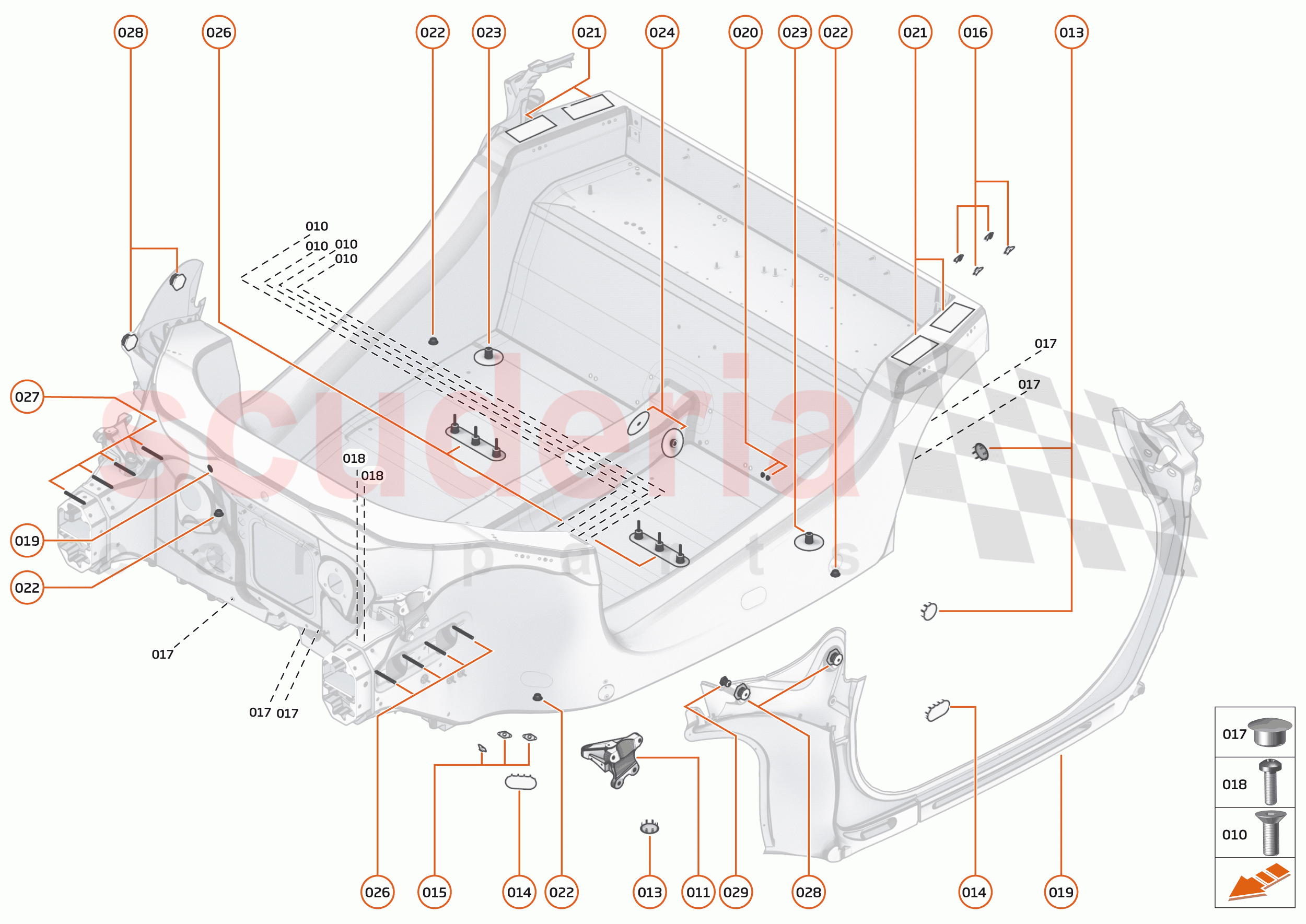

2 - MID STRUCTURES - 2.1 - MONOCOQUE of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA311
Screw - M6x16 - Hex Socket 		- 8 Enquire
011 11A7142CP
BRACKET - DAMPER MOUNTING - LH 		$211.61 1
011 11A7143CP
BRACKET - DAMPER MOUNTING - RH 		$211.61 1
013 11A5734CP
BLANKING PLUG - CIRCULAR - 42MM 		$10.56 6
014 11A5735CP
BLANKING PLUG - OVAL - 74MM X 37MM 		$10.56 4
015 11A7572CP
NUT PLATE - A-POST - M8 		$48.08 2
016 11A7573CP
NUT PLATE - B-POST - M8 		$48.08 6
017 00RG023
GROMMET - CHILD ANCHORAGE BRACKET HOLES 		- 11 Enquire
018 00RA522
BOLT - BUTTON HEAD - TORX - M5X16 		- 2 Enquire
019 11A7484CP
CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE 		- 1 Enquire
020 00RG064
COVER PLUG - M9 BLACK 		- 2 Enquire
021 15AD019CP
TUB - BLACK DECAL - 120MM X 62MM 		$4.95 4
022 11A5736CP
PLUG - TUB DATUM 		$6.92 4
023 12A3945RP
SEATBELT MOUNT TOPHAT FLOOR 		- 2 Enquire
024 12A3958RP
SEATBELT MOUNT TOPHAT TUNNEL 		- 2 Enquire
025 15AA399RP
BUSH MTG SEATBELT ANTI-SUB 		$1,438.68 2
026 ZZTA079QP
M8X45 UNBRAKO SHCS 		$2.30 6
027 A1BA121QP
STUD FTWB INBD M10 		$86.01 8
028 14A1365CP
DOP INSERT
DOP INSERT; 		- - Enquire
029 14A2258CP
GAS STRUT INSERT 		- - Enquire
