McLaren Senna GTR - 6 - PANELS - 6.5 - REAR PANELS - LH

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA542 CLIP - SNAPLOC - 16X8 Enquire To Order
Photo Part No Description Price (each) Stock
15AC759CP COWL - HIGH TEMPERATURE RADIATOR - LH Enquire To Order
15AC759CP COWL - HIGH TEMPERATURE RADIATOR - LH Enquire To Order
Photo Part No Description Price (each) Stock
15AC945CP ASSY C PILLAR LH Enquire To Order
Photo Part No Description Price (each) Stock
15AA593CP BRACKET - FENDER - REAR - LH $67.39 To Order
Photo Part No Description Price (each) Stock
15AA022CP DUCT - FENDER INNER - LH $2,035.79 To Order
Photo Part No Description Price (each) Stock
15AA529RP ASSY DECK LOUVRES-LH - CFS $18,828.48 To Order
15AA082RP ASSY DECK LOUVRES-LH - CFG $19,995.86 To Order
15AC955CP LOUVRES - REAR DECK - LH - SATIN CARBON Enquire To Order
Photo Part No Description Price (each) Stock
15AA483RP ASSY RR FENDER-LH - CFG $72,012.27 To Order
15AD253CP FENDER - REAR - GLOSS CARBON - LH Enquire To Order
15AA533RP ASSY RR FENDER-LH - CFS $72,012.27 To Order
Photo Part No Description Price (each) Stock
15AA561RP ASSY RR QTR UPR PNL-LH - CFS $6,110.26 To Order
15AA559RP ASSY RR QTR UPR PNL-LH - CFG Enquire To Order
15AA086RP ASSY RR QTR UPR PNL-LH - 0560 Enquire To Order
Photo Part No Description Price (each) Stock
15AA547RP ASSY RR QTR LWR PNL-LH - CFS $3,252.93 To Order
15AA478RP ASSY RR QTR LWR PNL-LH - CFG $3,184.61 To Order
Photo Part No Description Price (each) Stock
15AA479RP MTG BRKT-FUEL FILLER $304.03 To Order
Photo Part No Description Price (each) Stock
15AA157RP ASSY FLOOR INFILL LH $3,758.29 To Order
Photo Part No Description Price (each) Stock
15AA568RP BARGE BOARD RR LH - $7,534.39 To Order
15AA202RP ASSY BARGE BOARD RR LH - CFG $8,801.69 To Order
15AA363RP ASSY BARGE BOARD RR LH $8,801.69 To Order
Photo Part No Description Price (each) Stock
15AA537RP ASSY GURNEY FENDER RR LH - CFS $8,001.53 To Order
15AA380RP ASSY GURNEY FENDER RR LH - CFG $8,001.53 To Order
15AC774CP PANEL - HIGH TEMPERATURE RADIATOR - LH - GLOSS CARBON Enquire To Order
Photo Part No Description Price (each) Stock
15AA348RP ACCESS PNL RR SUPER WAL-LH $1,339.43 To Order
15AA089RP ASSY RR SUPER WAL -LH Enquire To Order
Photo Part No Description Price (each) Stock
00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
00RG011 GROMMET - DIA 19 - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
00RB185 CLIP - CANTRAIL CAPPING PANEL Enquire To Order
Photo Part No Description Price (each) Stock
00RA582 NUT - M5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC103 WASHER - M5X10 Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RA515 BOLT - HEX - FLANGE - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RA486 BOLT - HEX HEAD - FLANGED - M8X30 Enquire To Order
Photo Part No Description Price (each) Stock
15AA511RP SCR-CSK-TX-M5X0.8X20-SS-90 $3.79 To Order
View All

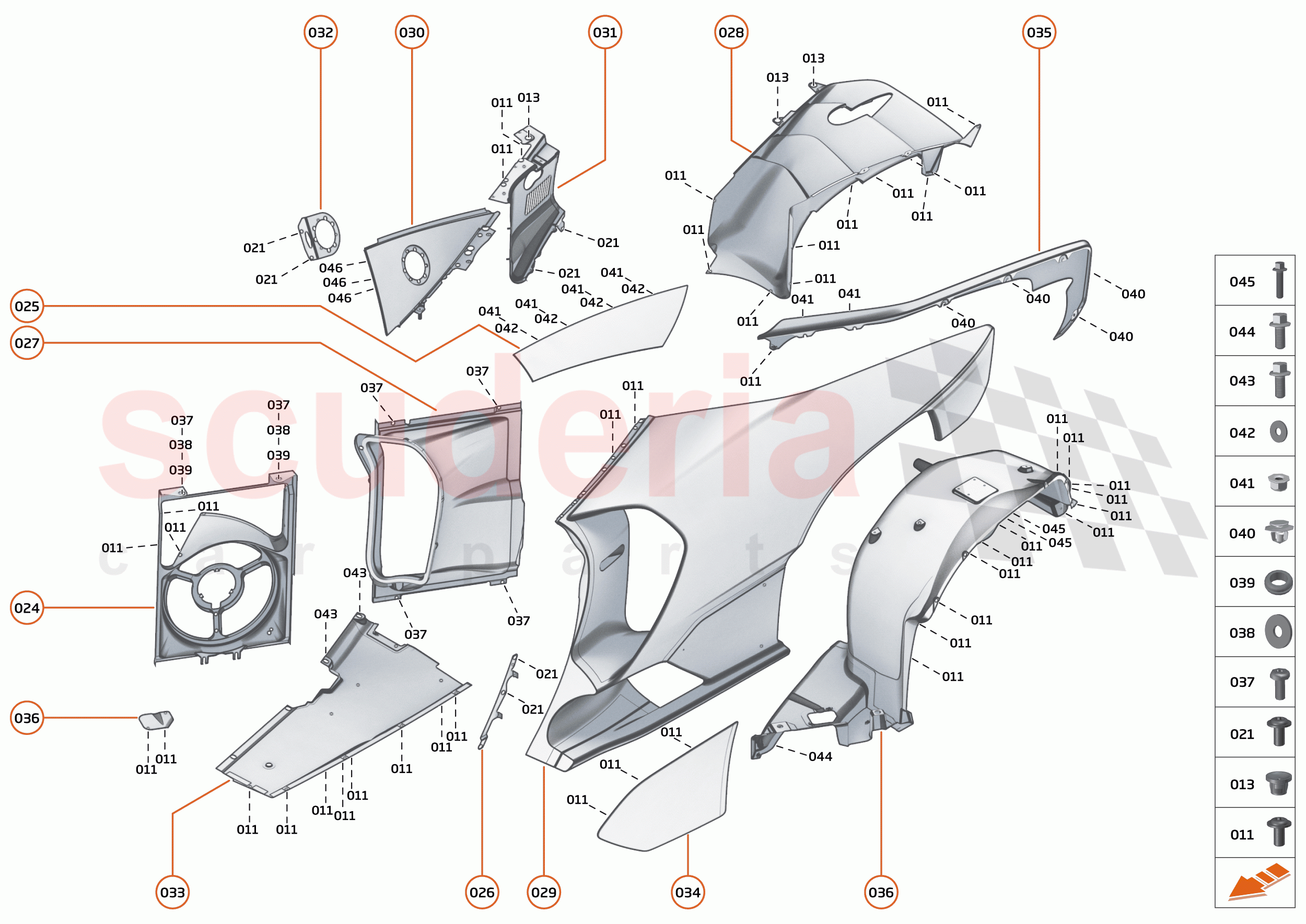

6 - PANELS - 6.5 - REAR PANELS - LH of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
011 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- - Enquire
013 00RA542
CLIP - SNAPLOC - 16X8 		- - Enquire
024 15AC759CP
COWL - HIGH TEMPERATURE RADIATOR - LH 		- 1 Enquire
024 15AC759CP
COWL - HIGH TEMPERATURE RADIATOR - LH 		- 1 Enquire
025 15AC945CP
ASSY C PILLAR LH 		- 1 Enquire
026 15AA593CP
BRACKET - FENDER - REAR - LH 		$67.39 1
027 15AA022CP
DUCT - FENDER INNER - LH 		$2,035.79 1
028 15AA529RP
ASSY DECK LOUVRES-LH - CFS 		$18,828.48 1
028 15AA082RP
ASSY DECK LOUVRES-LH - CFG 		$19,995.86 1
028 15AC955CP
LOUVRES - REAR DECK - LH - SATIN CARBON 		- 1 Enquire
029 15AA483RP
ASSY RR FENDER-LH - CFG 		$72,012.27 1
029 15AD253CP
FENDER - REAR - GLOSS CARBON - LH 		- 1 Enquire
029 15AA533RP
ASSY RR FENDER-LH - CFS 		$72,012.27 1
030 15AA561RP
ASSY RR QTR UPR PNL-LH - CFS 		$6,110.26 1
030 15AA559RP
ASSY RR QTR UPR PNL-LH - CFG 		- 1 Enquire
030 15AA086RP
ASSY RR QTR UPR PNL-LH - 0560 		- 1 Enquire
031 15AA547RP
ASSY RR QTR LWR PNL-LH - CFS 		$3,252.93 1
031 15AA478RP
ASSY RR QTR LWR PNL-LH - CFG 		$3,184.61 1
032 15AA479RP
MTG BRKT-FUEL FILLER 		$304.03 1
033 15AA157RP
ASSY FLOOR INFILL LH 		$3,758.29 1
034 15AA568RP
BARGE BOARD RR LH - 		$7,534.39 1
034 15AA202RP
ASSY BARGE BOARD RR LH - CFG 		$8,801.69 1
034 15AA363RP
ASSY BARGE BOARD RR LH 		$8,801.69 1
035 15AA537RP
ASSY GURNEY FENDER RR LH - CFS 		$8,001.53 1
035 15AA380RP
ASSY GURNEY FENDER RR LH - CFG 		$8,001.53 1
035 15AC774CP
PANEL - HIGH TEMPERATURE RADIATOR - LH - GLOSS CARBON 		- 1 Enquire
036 15AA348RP
ACCESS PNL RR SUPER WAL-LH 		$1,339.43 1
036 15AA089RP
ASSY RR SUPER WAL -LH 		- 1 Enquire
037 00RA353
SCREW - 6X14 - THREADFORMING - TORX - FLANGE 		- - Enquire
038 00RC043
WASHER - M6XOD25 		- - Enquire
039 00RG011
GROMMET - DIA 19 - RUBBER 		- - Enquire
040 00RB185
CLIP - CANTRAIL CAPPING PANEL 		- - Enquire
041 00RA582
NUT - M5 - HEX 		- - Enquire
042 00RC103
WASHER - M5X10 		- - Enquire
043 00RA313
SCREW - M6X16 - HEX - SILVER 		- - Enquire
044 00RA515
BOLT - HEX - FLANGE - M6X16 		- - Enquire
045 00RA486
BOLT - HEX HEAD - FLANGED - M8X30 		- - Enquire
046 15AA511RP
SCR-CSK-TX-M5X0.8X20-SS-90 		$3.79 -
