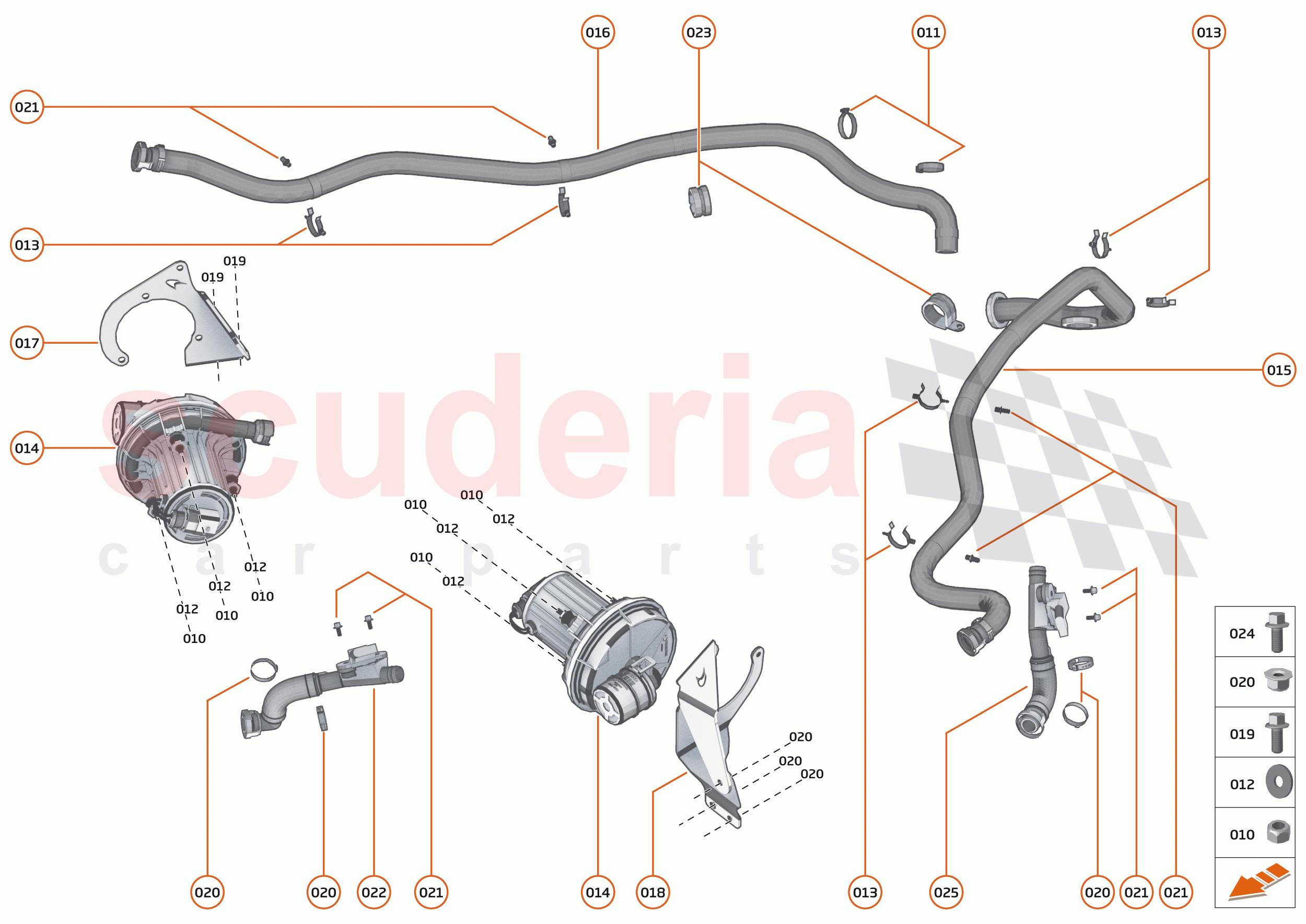

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA134	Nut - M6 - Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB137	HOSE CLAMP - 28.6 - 706R - OETIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC013	WASHER - M6X18X1.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG028	CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0750CP	PUMP - SECONDARY AIR	$366.52	To Order

Photo	Part No	Description	Price (each)	Stock
	15F0023CP	HOSE - SECONDARY AIR - LH	$222.63	To Order

Photo	Part No	Description	Price (each)	Stock
	15F0024CP	HOSE - SECONDARY AIR - RH	$207.03	To Order

Photo	Part No	Description	Price (each)	Stock
	15FA130CP	BRACKET - SECONDARY AIR PUMP - RH	$81.94	To Order

Photo	Part No	Description	Price (each)	Stock
	15FA129CP	BRACKET - SECONDARY AIR PUMP - LH	$81.94	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA011	NUT-HEX HEAD-FLANGE-M6-8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15FA100CP	HOSE - SECONDARY AIR INJECTION - INC SENSOR - RH	$345.00	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB097	P-CLIP - DIA 25 - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	SCREW - M6X16 - HEX - SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15FA099CP	ASSY - SAI LH	$332.09	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA134	Nut - M6 - Hex	00RA134 Nut - M6 - Hex	-	6	Enquire
011	00RB137	HOSE CLAMP - 28.6 - 706R - OETIKER	00RB137 HOSE CLAMP - 28.6 - 706R - OETIKER	-	2	Enquire
012	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6	-	6	Enquire
013	00RG028	CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25	00RG028 CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25	-	6	Enquire
014	12F0750CP	PUMP - SECONDARY AIR	12F0750CP PUMP - SECONDARY AIR	$366.52	2
015	15F0023CP	HOSE - SECONDARY AIR - LH	15F0023CP HOSE - SECONDARY AIR - LH	$222.63	1
016	15F0024CP	HOSE - SECONDARY AIR - RH	15F0024CP HOSE - SECONDARY AIR - RH	$207.03	1
017	15FA130CP	BRACKET - SECONDARY AIR PUMP - RH	15FA130CP BRACKET - SECONDARY AIR PUMP - RH	$81.94	1
018	15FA129CP	BRACKET - SECONDARY AIR PUMP - LH	15FA129CP BRACKET - SECONDARY AIR PUMP - LH	$81.94	1
020	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8	-	3	Enquire
021	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE	-	4	Enquire
022	15FA100CP	HOSE - SECONDARY AIR INJECTION - INC SENSOR - RH	15FA100CP HOSE - SECONDARY AIR INJECTION - INC SENSOR - RH	$345.00	2
023	00RB097	P-CLIP - DIA 25 - M6	00RB097 P-CLIP - DIA 25 - M6	-	4	Enquire
024	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER	-	2	Enquire
025	15FA099CP	ASSY - SAI LH	15FA099CP ASSY - SAI LH	$332.09	2
