32 - Hvac - 32.1 - Hvac Inlet And Distribution

McLaren Senna

Find Your Part

McLaren Senna - 32 - HVAC - 32.1 - HVAC INLET AND DISTRIBUTION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13AB129CP HVAC DISTRIBUTION UNIT $914.81 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA369 SCREW - PLAS TECH - M6X16MM Enquire To Order
Photo Part No Description Price (each) Stock
00RC075 WASHER - NYLON - 14.35X6.45X2.39 Enquire To Order
Photo Part No Description Price (each) Stock
15AB222CP INTAKE UNIT - HVAC $2,094.72 To Order
22LA029CP INTAKE UNIT - HVAC - R1234YF $1,227.68 To Order
13AB030CP INTAKE UNIT - HVAC $1,334.11 To Order
Photo Part No Description Price (each) Stock
11A7034CP Drain Tube - HVAC $47.94 To Order
Photo Part No Description Price (each) Stock
11A4152CP HVAC CABIN AIR FILTER $76.72 IN STOCK
Photo Part No Description Price (each) Stock
11A4612CP ACCESS PANEL-HVAC-FILTER $71.92 To Order
Photo Part No Description Price (each) Stock
11A6627CP SENSOR - PRESSURE - HVAC $304.93 To Order
Photo Part No Description Price (each) Stock
11A4434CP CLAMP PLATE - HVAC EVAPORATOR CONNECTION $71.92 To Order
Photo Part No Description Price (each) Stock
11AA096CP Motor - Flap - HVAC $285.87 To Order
Photo Part No Description Price (each) Stock
11A4137CP Screw - HVAC $6.11 To Order
Photo Part No Description Price (each) Stock
11A4135CP HVAC HARNESS 24 $190.57 To Order
Photo Part No Description Price (each) Stock
11A4144CP P-Clip - Harness - HVAC $13.41 To Order
Photo Part No Description Price (each) Stock
11A4146CP HVAC HEATER MATRIX $441.18 To Order
Photo Part No Description Price (each) Stock
11A4147CP Clamp - Heater Matrix - HVAC $28.75 To Order
Photo Part No Description Price (each) Stock
11A4149CP HVAC BULKHEAD SEAL INTAKE UNIT $105.49 To Order
Photo Part No Description Price (each) Stock
11A4150CP HVAC BULKHEAD SEAL24IST UNIT $105.49 To Order
Photo Part No Description Price (each) Stock
11A4151CP HVAC DUCT FACIA SEAL SET $71.92 To Order
Photo Part No Description Price (each) Stock
11A4857CP HVAC-COVER-FLAP MOTOR $33.57 To Order
View All

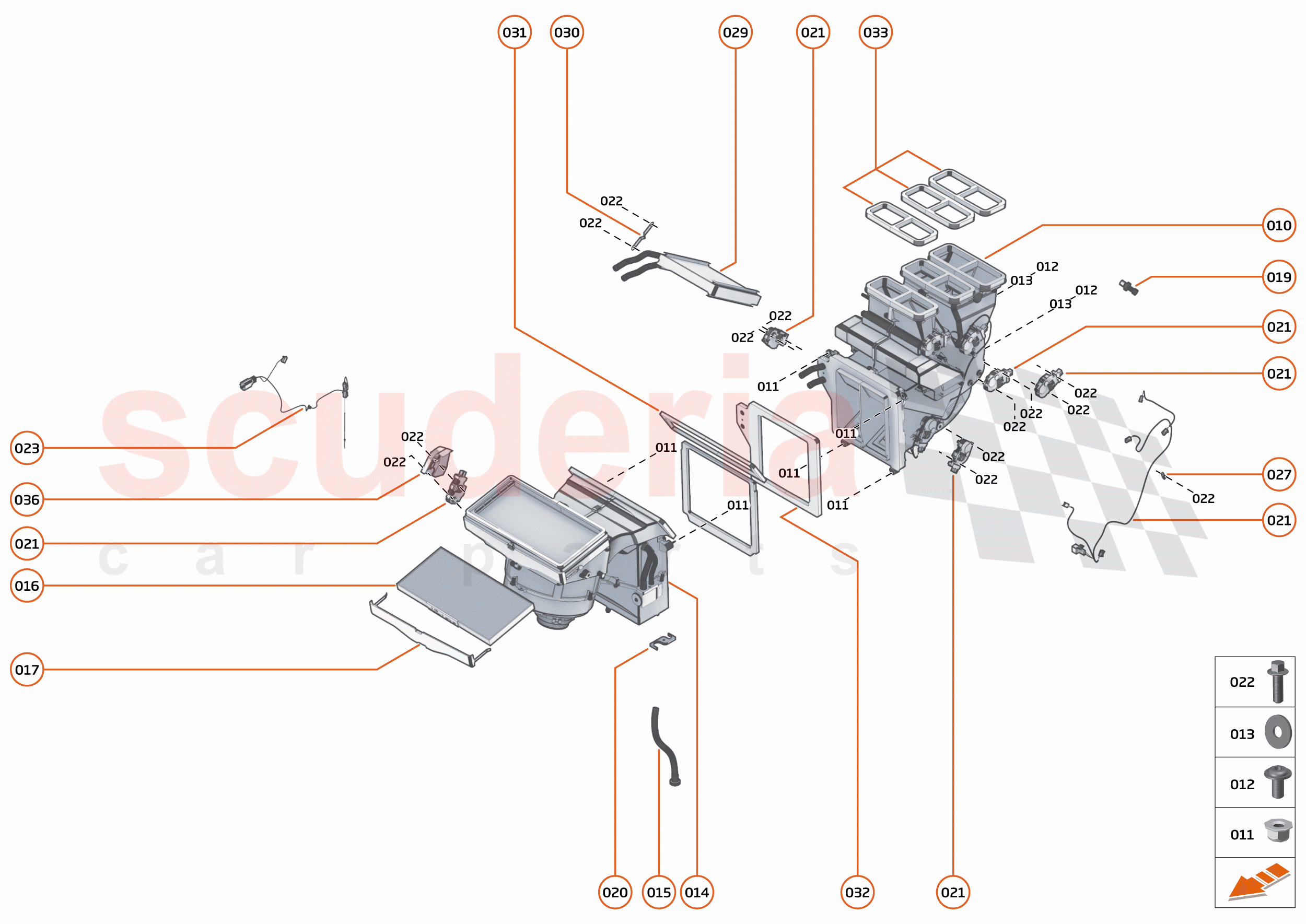

32 - HVAC - 32.1 - HVAC INLET AND DISTRIBUTION of McLaren McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13AB129CP
HVAC DISTRIBUTION UNIT 		$914.81 1
011 00RA055
NUT - M6 - LOCKING - HEX 		- 6 Enquire
012 00RA369
SCREW - PLAS TECH - M6X16MM 		- 2 Enquire
013 00RC075
WASHER - NYLON - 14.35X6.45X2.39 		- 2 Enquire
014 15AB222CP
INTAKE UNIT - HVAC 		$2,094.72 1
014 22LA029CP
INTAKE UNIT - HVAC - R1234YF 		$1,227.68 1
014 13AB030CP
INTAKE UNIT - HVAC 		$1,334.11 1
015 11A7034CP
Drain Tube - HVAC 		$47.94 1
016 11A4152CP
HVAC CABIN AIR FILTER
IN STOCK 		$76.72 1
017 11A4612CP
ACCESS PANEL-HVAC-FILTER 		$71.92 1
019 11A6627CP
SENSOR - PRESSURE - HVAC 		$304.93 1
020 11A4434CP
CLAMP PLATE - HVAC EVAPORATOR CONNECTION 		$71.92 1
021 11AA096CP
Motor - Flap - HVAC 		$285.87 5
022 11A4137CP
Screw - HVAC 		$6.11 13
023 11A4135CP
HVAC HARNESS 24 		$190.57 1
024 11A4136CP
HVAC HARNESS DISTR24UTION 		$266.81 1
027 11A4144CP
P-Clip - Harness - HVAC 		$13.41 1
029 11A4146CP
HVAC HEATER MATRIX 		$441.18 1
030 11A4147CP
Clamp - Heater Matrix - HVAC 		$28.75 1
031 11A4149CP
HVAC BULKHEAD SEAL INTAKE UNIT 		$105.49 1
032 11A4150CP
HVAC BULKHEAD SEAL24IST UNIT 		$105.49 1
033 11A4151CP
HVAC DUCT FACIA SEAL SET 		$71.92 1
036 11A4857CP
HVAC-COVER-FLAP MOTOR 		$33.57 1
