Name: 21 - ENGINE - 21.4 - EXHAUST MANIFOLD & TURBOCHARGERS
Rating: 5.0 (1 reviews)

21 - ENGINE - 21.4 - EXHAUST MANIFOLD & TURBOCHARGERS of McLaren McLaren Elva

View All

McLaren Elva - 21 - ENGINE - 21.4 - EXHAUST MANIFOLD & TURBOCHARGERS

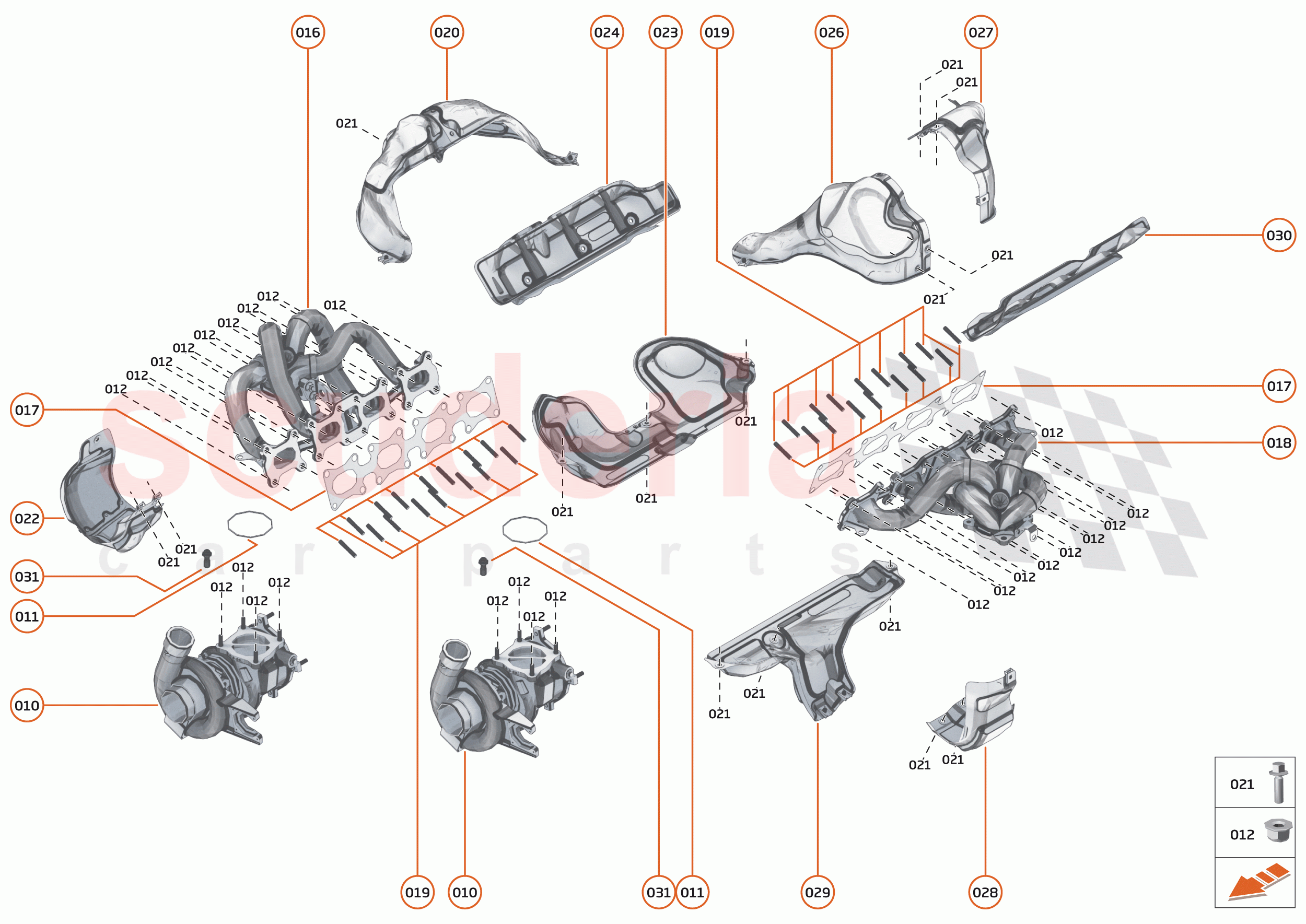

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	15FA303CP	TURBOCHARGER ASSY - ENGINE	$5,298.69	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0509CP	V-RING - TURBO SEAL	$62.55	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1905CP	NUT - EXHAUST MANIFOLD FLANGED - M8	$10.57	To Order

Photo	Part No	Description	Price (each)	Stock
	28FA044CP	EXHAUST MANIFOLD - ENGINE - RH	$1,521.60	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0599CP	GASKET - EXHAUST MANIFOLD - ENGINE	$91.43	To Order

Photo	Part No	Description	Price (each)	Stock
	28FA043CP	EXHAUST MANIFOLD - ENGINE - LH	$1,730.82	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2555CP	STUD - M8 - EXHAUST MANIFOLD	$13.45	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0743CP	HEATSHIELD - EXHAUST MANIFOLD - UPPER - RH	$192.51	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1795CP	EXHAUST MANIFOLD - HEATSHIELD - SCREW - M6X20 - 675LT - SPORTS SERIES - 720S	$11.52	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0744CP	HEATSHIELD - TURBOCHARGER - RH	$133.88	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0508CP	HEATSHIELD - EXHAUST MANIFOLD - LOWER - RH	$144.39	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0745CP	HEATSHIELD - CAM COVER - RH	$192.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0748CP	HEATSHIELD - EXHAUST MANIFOLD - UPPER - FRONT - LH	$125.12	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0747CP	HEATSHIELD - EXHAUST MANIFOLD - UPPER - REAR - LH	$125.12	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA037CP	HEATSHIELD - EXHAUST MANIFOLD - LOWER - LH	$105.88	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0750CP	HEATSHIELD - CAM COVER - LH	$174.34	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0716CP	HOLLOW BOLT - M12X1.25 - T30	$48.12	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
010	15FA303CP	TURBOCHARGER ASSY - ENGINE	15FA303CP TURBOCHARGER ASSY - ENGINE	$5,298.69	2
011	14F0509CP	V-RING - TURBO SEAL	14F0509CP V-RING - TURBO SEAL	$62.55	2
012	11F1905CP	NUT - EXHAUST MANIFOLD FLANGED - M8	11F1905CP NUT - EXHAUST MANIFOLD FLANGED - M8	$10.57	40
016	28FA044CP	EXHAUST MANIFOLD - ENGINE - RH	28FA044CP EXHAUST MANIFOLD - ENGINE - RH	$1,521.60	1
017	13F0599CP	GASKET - EXHAUST MANIFOLD - ENGINE	13F0599CP GASKET - EXHAUST MANIFOLD - ENGINE	$91.43	2
018	28FA043CP	EXHAUST MANIFOLD - ENGINE - LH	28FA043CP EXHAUST MANIFOLD - ENGINE - LH	$1,730.82	1
019	11F2555CP	STUD - M8 - EXHAUST MANIFOLD	11F2555CP STUD - M8 - EXHAUST MANIFOLD	$13.45	4
020	14F0743CP	HEATSHIELD - EXHAUST MANIFOLD - UPPER - RH	14F0743CP HEATSHIELD - EXHAUST MANIFOLD - UPPER - RH	$192.51	1
021	11F1795CP	EXHAUST MANIFOLD - HEATSHIELD - SCREW - M6X20 - 675LT - SPORTS SERIES - 720S	11F1795CP EXHAUST MANIFOLD - HEATSHIELD - SCREW - M6X20 - 675LT - SPORTS SERIES - 720S	$11.52	15
022	14F0744CP	HEATSHIELD - TURBOCHARGER - RH	14F0744CP HEATSHIELD - TURBOCHARGER - RH	$133.88	1
023	14F0508CP	HEATSHIELD - EXHAUST MANIFOLD - LOWER - RH	14F0508CP HEATSHIELD - EXHAUST MANIFOLD - LOWER - RH	$144.39	1
024	14F0745CP	HEATSHIELD - CAM COVER - RH	14F0745CP HEATSHIELD - CAM COVER - RH	$192.51	1
026	14F0748CP	HEATSHIELD - EXHAUST MANIFOLD - UPPER - FRONT - LH	14F0748CP HEATSHIELD - EXHAUST MANIFOLD - UPPER - FRONT - LH	$125.12	1
027	14F0747CP	HEATSHIELD - EXHAUST MANIFOLD - UPPER - REAR - LH	14F0747CP HEATSHIELD - EXHAUST MANIFOLD - UPPER - REAR - LH	$125.12	1
028	14F0639CP	HEATSHIELD - TURBOCHARGER - LH	14F0639CP HEATSHIELD - TURBOCHARGER - LH	$133.88	1
029	14FA037CP	HEATSHIELD - EXHAUST MANIFOLD - LOWER - LH	14FA037CP HEATSHIELD - EXHAUST MANIFOLD - LOWER - LH	$105.88	1
030	14F0750CP	HEATSHIELD - CAM COVER - LH	14F0750CP HEATSHIELD - CAM COVER - LH	$174.34	1
031	14F0716CP	HOLLOW BOLT - M12X1.25 - T30	14F0716CP HOLLOW BOLT - M12X1.25 - T30	$48.12	1

21 - Engine - 21.4 - Exhaust Manifold & Turbochargers

McLaren Elva

McLaren Elva - 21 - ENGINE - 21.4 - EXHAUST MANIFOLD & TURBOCHARGERS
