21 - Engine - 21.8 - Electrical System

McLaren Elva

Find Your Part

McLaren Elva - 21 - ENGINE - 21.8 - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15F0026CP COIL-IGNITION EPT300 ION SENSE - ENGINE $268.41 To Order
Photo Part No Description Price (each) Stock
11F1777CP BOLT - M6X40 - HEX $4.41 To Order
Photo Part No Description Price (each) Stock
11F1893CP PLUG- SPARK- NGK T20231A HR8 $42.88 IN STOCK
Photo Part No Description Price (each) Stock
14F0478CP BRACKET - ENGINE HARNESS $42.23 To Order
Photo Part No Description Price (each) Stock
15FA360CP HARNESS - ENGINE Enquire To Order
Photo Part No Description Price (each) Stock
15FA275CP HARNESS - INTAKE $248.54 To Order
Photo Part No Description Price (each) Stock
15FA050CP HARNESS - VEE LINK - RH $506.70 To Order
Photo Part No Description Price (each) Stock
15FA051CP HARNESS - ENGINE LINK - INJECTORS - RH $1,597.08 To Order
Photo Part No Description Price (each) Stock
15FA052CP HARNESS - ENGINE LINK - INJECTORS - LH $1,375.80 To Order
Photo Part No Description Price (each) Stock
11F2191CP SENSOR - ENGINE - CRANK POSITION $57.50 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.60 To Order
Photo Part No Description Price (each) Stock
11F1792CP BOLT - M6X16 - ENGINE $12.52 To Order
View All

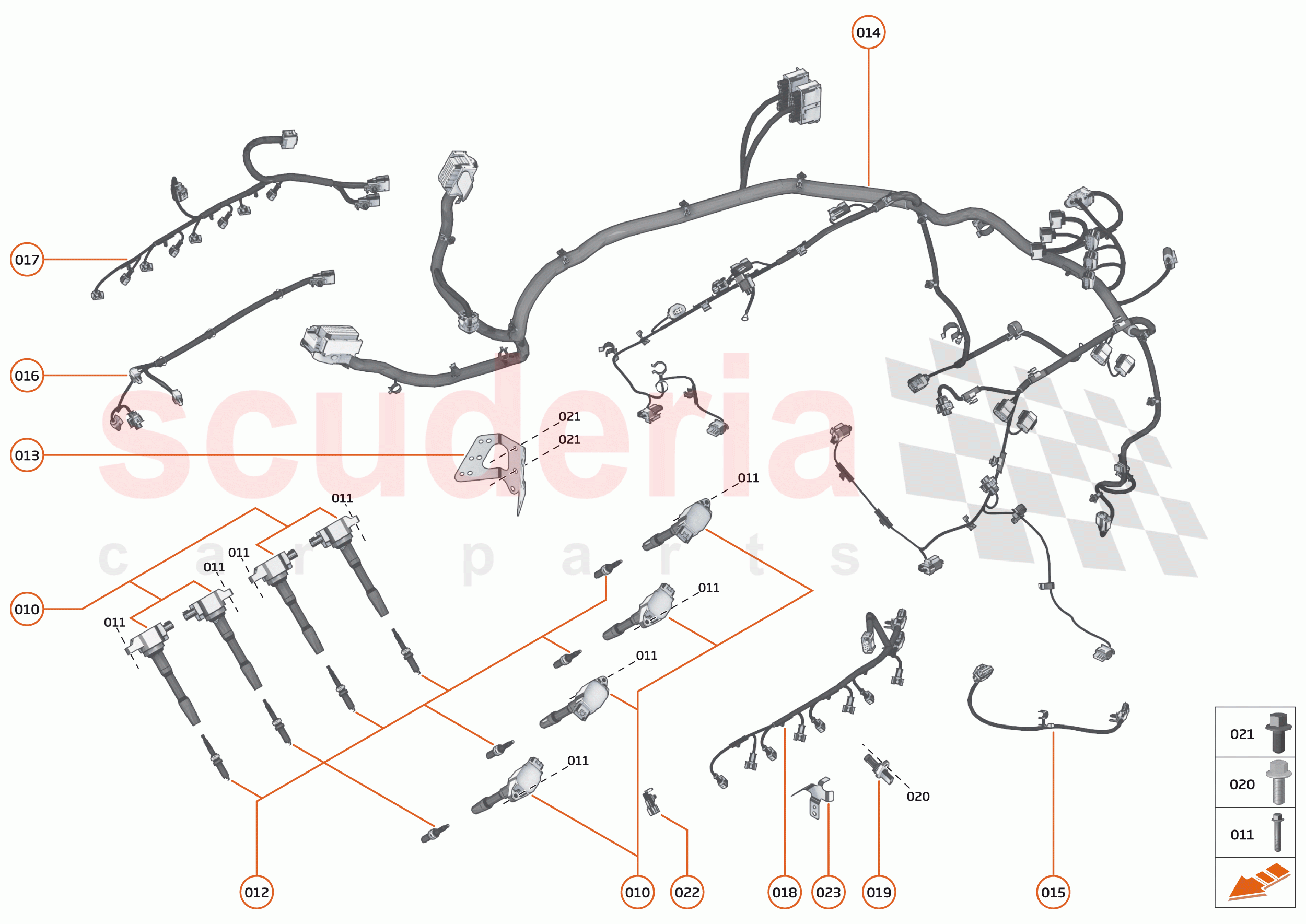

21 - ENGINE - 21.8 - ELECTRICAL SYSTEM of McLaren McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15F0026CP
COIL-IGNITION EPT300 ION SENSE - ENGINE 		$268.41 8
011 11F1777CP
BOLT - M6X40 - HEX 		$4.41 8
012 11F1893CP
PLUG- SPARK- NGK T20231A HR8
IN STOCK 		$42.88 8
013 14F0478CP
BRACKET - ENGINE HARNESS 		$42.23 1
014 15FA360CP
HARNESS - ENGINE 		- 1 Enquire
015 15FA275CP
HARNESS - INTAKE 		$248.54 1
016 15FA050CP
HARNESS - VEE LINK - RH 		$506.70 1
017 15FA051CP
HARNESS - ENGINE LINK - INJECTORS - RH 		$1,597.08 1
018 15FA052CP
HARNESS - ENGINE LINK - INJECTORS - LH 		$1,375.80 1
019 11F2191CP
SENSOR - ENGINE - CRANK POSITION 		$57.50 1
020 11F1793CP
BOLT - M6X20 - HEX 		$10.60 16
021 11F1792CP
BOLT - M6X16 - ENGINE 		$12.52 8
