McLaren 765LT Spider - 31 - COOLING - HIGH TEMP - 31.2 - HIGH TEMP MAIN RADIATORS & FANS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11L0250CP SEAL - RADIATOR TO BODY - TOP $40.72 To Order
Photo Part No Description Price (each) Stock
11L0378CP SEAL - RADIATOR TO BODY - FRONT $62.26 To Order
Photo Part No Description Price (each) Stock
11L0377CP SEAL - RADIATOR TO CONDENSER $62.26 To Order
Photo Part No Description Price (each) Stock
13L0207CP FLAP HOUSING - RADIATOR $163.89 To Order
Photo Part No Description Price (each) Stock
14LA058CP HTR-AV-GROMMET $10.59 To Order
00RG011 GROMMET - DIA 19 - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
00RA138 SCREW-TORX HEAD-DIA4X14-TF Enquire To Order
Photo Part No Description Price (each) Stock
00RA744 SCR-BTN HD-TX-FL-TF-6X2.46X14-STL-82 Enquire To Order
Photo Part No Description Price (each) Stock
13L0208CP FAN ASSEMBLY - HIGH TEMPERATURE RADIATOR $478.99 To Order
Photo Part No Description Price (each) Stock
00RG024 CABLE TIE - 90 DEG - EDGE PANEL Enquire To Order
Photo Part No Description Price (each) Stock
00RC074 SPACER - 6.5 X 12.7 X 6.4 Enquire To Order
Photo Part No Description Price (each) Stock
11L0392CP RADIATOR - ENGINE COOLANT - LH $1,542.73 To Order
11L0359CP RADIATOR - ENGINE COOLANT - RH $1,542.73 To Order
Photo Part No Description Price (each) Stock
11A2859CP CONDENSER - HVAC - LH $539.95 To Order
Photo Part No Description Price (each) Stock
14LA026CP BRACKET - RADIATOR MOUNTING - FORE - LOWER - LH $43.37 To Order
Photo Part No Description Price (each) Stock
14LA082CP BRKT-MNTG-RAD-LWR-AFT-LH $91.58 To Order
Photo Part No Description Price (each) Stock
14LA085CP BRKT-MNTG-RAD-UPR-LH $53.00 To Order
Photo Part No Description Price (each) Stock
11L0376CP RADIATOR - ENGINE COOLANT - RH $1,542.73 To Order
11L0360CP RADIATOR - ENGINE COOLANT - LH $1,542.73 To Order
Photo Part No Description Price (each) Stock
11A7098CP CONDENSER - HVAC - RH $539.95 To Order
Photo Part No Description Price (each) Stock
14LA088CP BRKT-MNTG-RAD-LWR-FORE-RH $43.37 To Order
Photo Part No Description Price (each) Stock
00RL011 EDGE CLIP - 202X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
14LA083CP BRKT-MNTG-RAD-LWR-AFT-RH $81.93 To Order
Photo Part No Description Price (each) Stock
14LA086CP BRKT-MNTG-RADIATOR-UPR-RH $53.00 To Order
View All

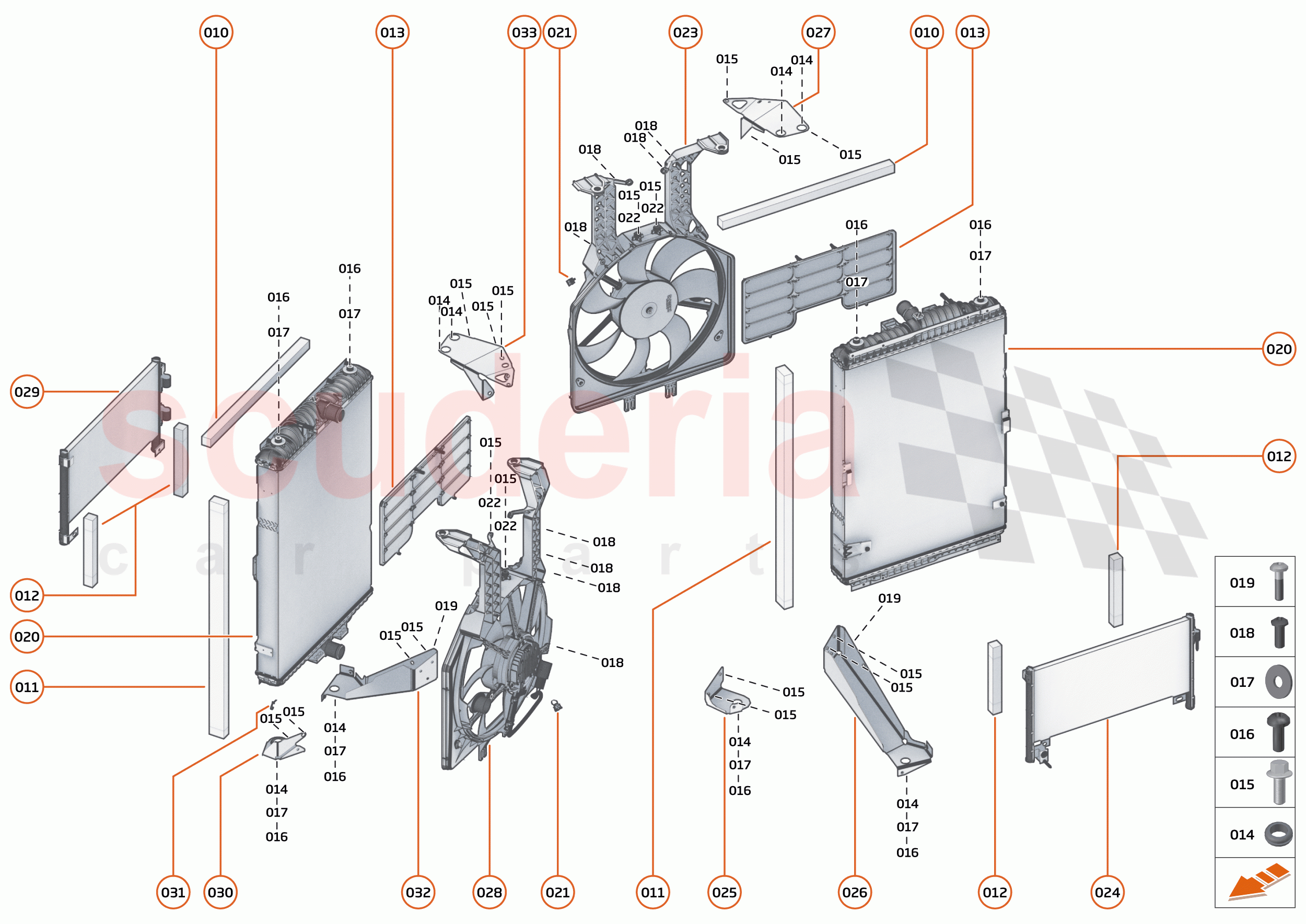

31 - COOLING - HIGH TEMP - 31.2 - HIGH TEMP MAIN RADIATORS & FANS of McLaren McLaren 765LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11L0250CP
SEAL - RADIATOR TO BODY - TOP 		$40.72 1
011 11L0378CP
SEAL - RADIATOR TO BODY - FRONT 		$62.26 1
012 11L0377CP
SEAL - RADIATOR TO CONDENSER 		$62.26 2
013 13L0207CP
FLAP HOUSING - RADIATOR 		$163.89 1
014 14LA058CP
HTR-AV-GROMMET 		$10.59 4
014 00RG011
GROMMET - DIA 19 - RUBBER 		- 1 Enquire
015 00RA313
SCREW - M6X16 - HEX - SILVER 		- 3 Enquire
016 00RA353
SCREW - 6X14 - THREADFORMING - TORX - FLANGE 		- 2 Enquire
017 00RC043
WASHER - M6XOD25 		- 2 Enquire
018 00RA138
SCREW-TORX HEAD-DIA4X14-TF 		- 4 Enquire
019 00RA744
SCR-BTN HD-TX-FL-TF-6X2.46X14-STL-82 		- 2 Enquire
020 13L0208CP
FAN ASSEMBLY - HIGH TEMPERATURE RADIATOR 		$478.99 1
021 00RG024
CABLE TIE - 90 DEG - EDGE PANEL 		- 1 Enquire
022 00RC074
SPACER - 6.5 X 12.7 X 6.4 		- 2 Enquire
023 11L0392CP
RADIATOR - ENGINE COOLANT - LH 		$1,542.73 1
023 11L0359CP
RADIATOR - ENGINE COOLANT - RH 		$1,542.73 1
024 11A2859CP
CONDENSER - HVAC - LH 		$539.95 1
025 14LA026CP
BRACKET - RADIATOR MOUNTING - FORE - LOWER - LH 		$43.37 1
026 14LA082CP
BRKT-MNTG-RAD-LWR-AFT-LH 		$91.58 1
027 14LA085CP
BRKT-MNTG-RAD-UPR-LH 		$53.00 1
028 11L0376CP
RADIATOR - ENGINE COOLANT - RH 		$1,542.73 1
028 11L0360CP
RADIATOR - ENGINE COOLANT - LH 		$1,542.73 1
029 11A7098CP
CONDENSER - HVAC - RH 		$539.95 1
030 14LA088CP
BRKT-MNTG-RAD-LWR-FORE-RH 		$43.37 1
031 00RL011
EDGE CLIP - 202X4.6MM 		- 1 Enquire
032 14LA083CP
BRKT-MNTG-RAD-LWR-AFT-RH 		$81.93 1
033 14LA086CP
BRKT-MNTG-RADIATOR-UPR-RH 		$53.00 1
034 00RC139
WSHR-PLN-M6X22X2-MS-86 		- 2 Enquire
