19 - Suspension - Front - 19.2 - Uprights Front

McLaren 765LT Spider

Find Your Part

McLaren 765LT Spider - 19 - SUSPENSION - FRONT - 19.2 - UPRIGHTS FRONT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14B0431CP HEATSHIELD - SUSPENSION UPRIGHT - LOWER $16.26 To Order
Photo Part No Description Price (each) Stock
00RA759 BLT-HX HD-FL-M5X0.8X8-8.8-81-L - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
16MB093CP SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH $124.43 To Order
16MB358CP SENSOR HUB ACCELEROMETER FR RH - ONLY $539.53 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0541CP TOPHAT - CAMBER ADJUSTMENT $62.61 To Order
Photo Part No Description Price (each) Stock
13BA206CP SCREW - CSK HEX SOCKET HD - M3X12- $1.92 To Order
Photo Part No Description Price (each) Stock
11B0739CP WASHER - CAMBER ADJUSTMENT $43.33 To Order
Photo Part No Description Price (each) Stock
00RA229 NUT - M14X1.5 - LOCKED HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0320CP WASHER - DIA 35X3.9X14.5 $12.50 To Order
Photo Part No Description Price (each) Stock
14BA198RP TOPHAT TRACKROD 1.6 TAPER $33.72 To Order
Photo Part No Description Price (each) Stock
14BA220CP HEX SOCKET HD CAP M12X30 8.8 $3.43 To Order
Photo Part No Description Price (each) Stock
14B0714CP WASHER - M12X23 $2.87 To Order
Photo Part No Description Price (each) Stock
13BA357RP CAP - HUB Enquire To Order
Photo Part No Description Price (each) Stock
14BA195RP UPRIGHT - SUSPENSION - FRONT - RH $1,742.22 To Order
14BA194RP UPRIGHT - SUSPENSION - FRONT - LH $1,734.27 To Order
Photo Part No Description Price (each) Stock
16BB154CP WHEEL HUB ASSY - BEARING $500.99 To Order
Photo Part No Description Price (each) Stock
16MB093CP SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH $124.43 To Order
View All

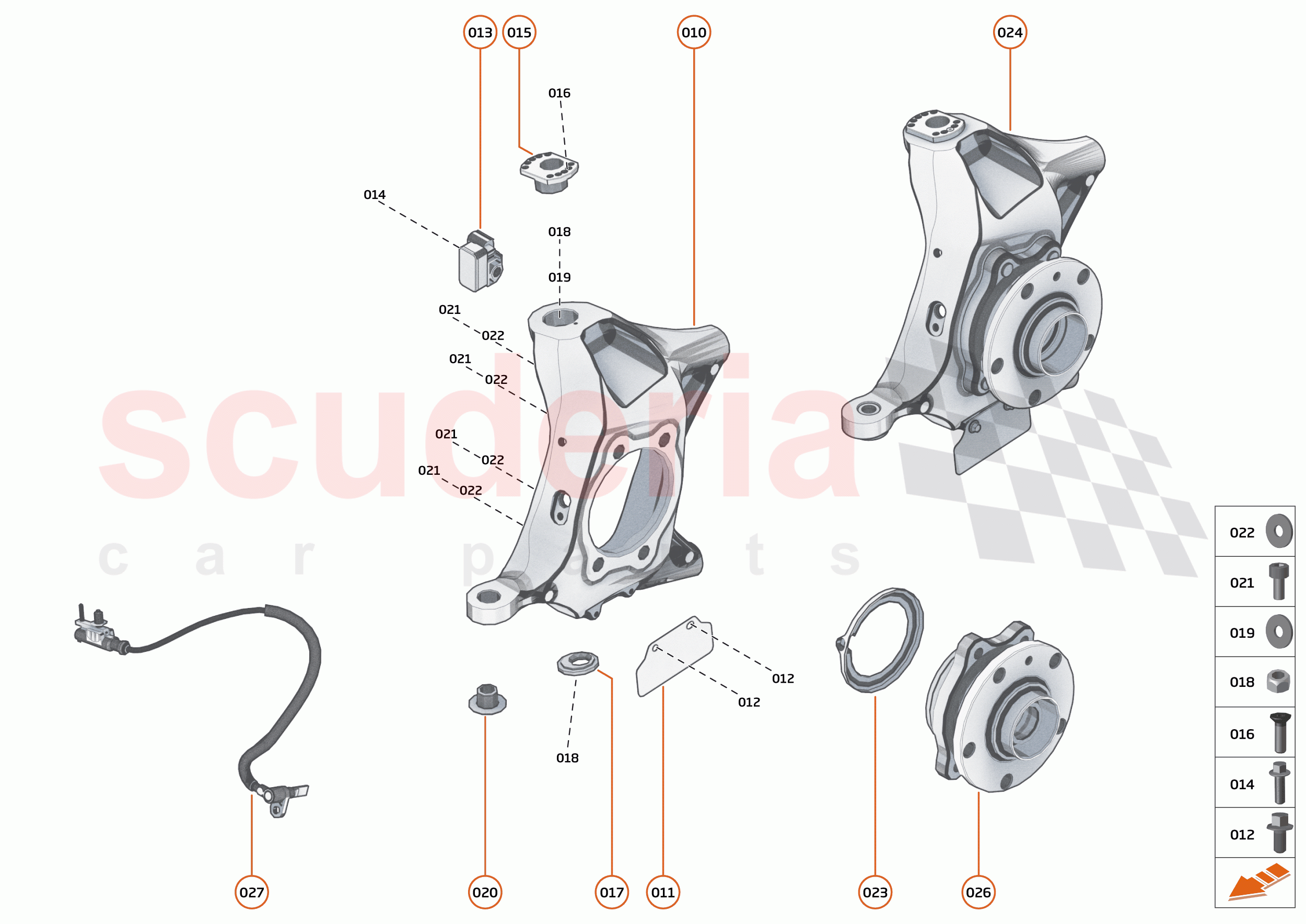

19 - SUSPENSION - FRONT - 19.2 - UPRIGHTS FRONT of McLaren McLaren 765LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
011 14B0431CP
HEATSHIELD - SUSPENSION UPRIGHT - LOWER 		$16.26 1
012 00RA759
BLT-HX HD-FL-M5X0.8X8-8.8-81-L - M5X8 - HEX 		- 2 Enquire
013 16MB093CP
SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH 		$124.43 2
013 16MB358CP
SENSOR HUB ACCELEROMETER FR RH - ONLY 		$539.53 2
014 00RA083
SCREW - M6X20 - FLANGE HEX 		- 1 Enquire
015 11B0541CP
TOPHAT - CAMBER ADJUSTMENT 		$62.61 1
016 13BA206CP
SCREW - CSK HEX SOCKET HD - M3X12- 		$1.92 1
017 11B0739CP
WASHER - CAMBER ADJUSTMENT 		$43.33 1
018 00RA229
NUT - M14X1.5 - LOCKED HEX 		- 2 Enquire
019 11B0320CP
WASHER - DIA 35X3.9X14.5 		$12.50 1
020 14BA198RP
TOPHAT TRACKROD 1.6 TAPER 		$33.72 1
021 14BA220CP
HEX SOCKET HD CAP M12X30 8.8 		$3.43 4
022 14B0714CP
WASHER - M12X23 		$2.87 4
023 13BA357RP
CAP - HUB 		- 1 Enquire
024 14BA195RP
UPRIGHT - SUSPENSION - FRONT - RH 		$1,742.22 1
024 14BA194RP
UPRIGHT - SUSPENSION - FRONT - LH 		$1,734.27 1
026 16BB154CP
WHEEL HUB ASSY - BEARING 		$500.99 1
027 16MB093CP
SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH 		$124.43 2
