47 - INFOTAINMENT - 47.5 - CAMERAS of McLaren McLaren 750S Spider

View All

McLaren 750S Spider - 47 - INFOTAINMENT - 47.5 - CAMERAS

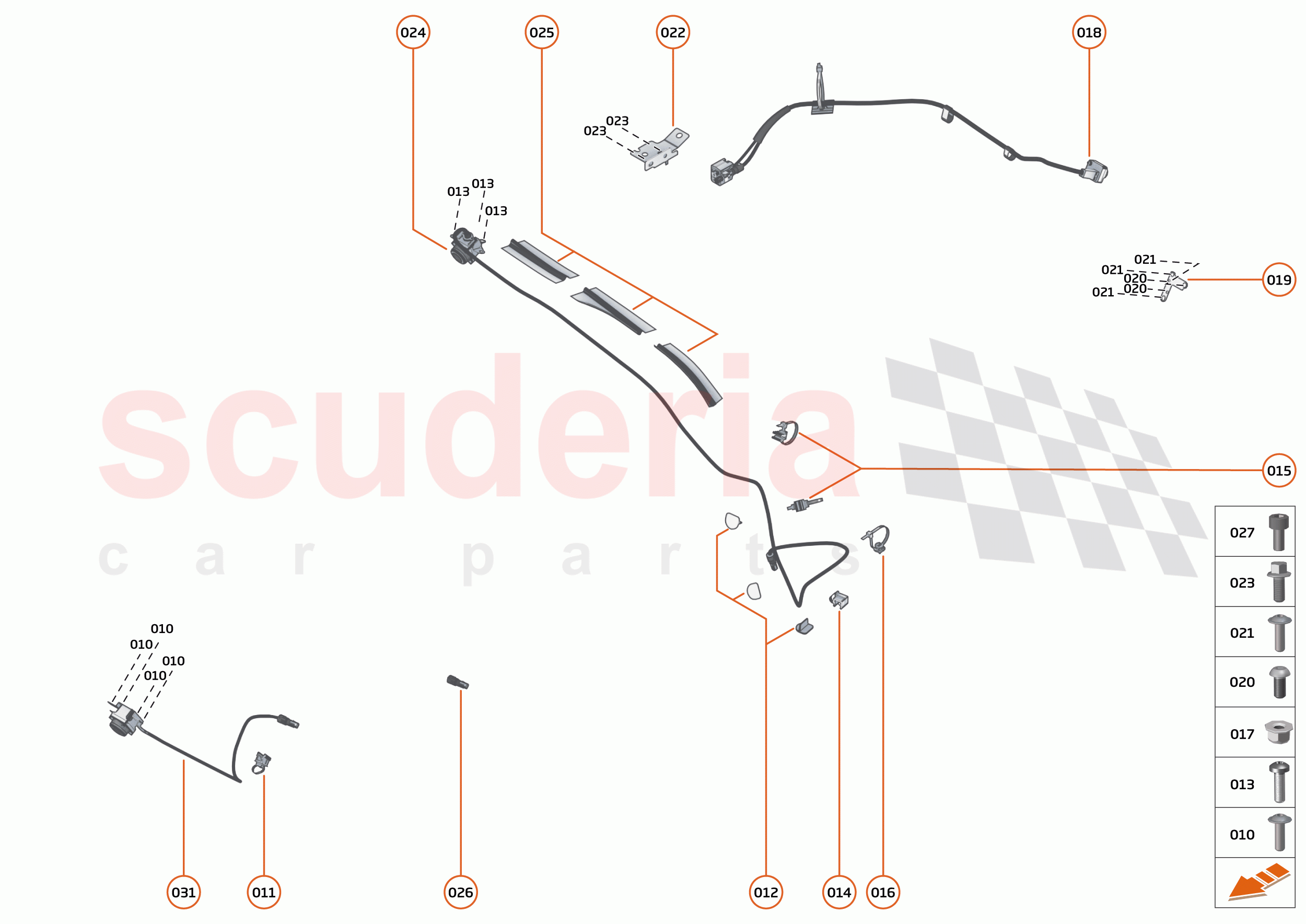

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA363	SCREW - TORX - 4X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG024	CABLE TIE - 90 DEG - EDGE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A7405CP	CLIP - HARNESS	$19.31	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA787	SCR-PAN HD-FL-TX-PTF-3X10-STL-ZNP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL011	EDGE CLIP - 202X4.6MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL001	CABLE TIE - FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA011	NUT-HEX HEAD-FLANGE-M6-8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13MA289RP	REAR CAMERA	$522.09	To Order

Photo	Part No	Description	Price (each)	Stock
	28MA426CP	REAR VIEW CAMERA BRACKET	$28.98	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA706	SCR-PAN HD-TX-PTF-2.2X6-STL-80	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28MA453CP	RVC CONNECTORS BRACKET	$25.87	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA064	BOLT - M5X12 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28MA498CP	SLIM CAMERAS ECU	$1,044.16	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL004	FELT TAPE	Enquire	To Order
	00RL009	TY-FAST PLATFORM-750-0-C	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14M1190CP	CAMERA CONNECTOR BLANK	$13.27	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA303	Screw - Button Head - Hex Flange - M4x6-10.9 BLK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16MA981CP	MA CAMERA 180 DEGREES-FRONT	$483.41	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RL015	CABLE TIE - SF100 - 18X - 110MM	00RL015 CABLE TIE - SF100 - 18X - 110MM	-	1	Enquire
000	00RL048	CAB TIE-ADHESIVE MOUNT-28X4.7-NYL-BLK	00RL048 CAB TIE-ADHESIVE MOUNT-28X4.7-NYL-BLK	-	1	Enquire
000	00RL010	CABLE TIE - SF175-50X	00RL010 CABLE TIE - SF175-50X	-	1	Enquire
010	00RA363	SCREW - TORX - 4X12	00RA363 SCREW - TORX - 4X12	-	4	Enquire
011	00RG024	CABLE TIE - 90 DEG - EDGE PANEL	00RG024 CABLE TIE - 90 DEG - EDGE PANEL	-	1	Enquire
012	11A7405CP	CLIP - HARNESS	11A7405CP CLIP - HARNESS	$19.31	3
013	00RA787	SCR-PAN HD-FL-TX-PTF-3X10-STL-ZNP	00RA787 SCR-PAN HD-FL-TX-PTF-3X10-STL-ZNP	-	3	Enquire
014	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	00RG025 CABLE TIE - PARALLEL - EDGE PANEL	-	1	Enquire
015	00RL011	EDGE CLIP - 202X4.6MM	00RL011 EDGE CLIP - 202X4.6MM	-	2	Enquire
016	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE	-	1	Enquire
017	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8	-	3	Enquire
018	13MA289RP	REAR CAMERA	13MA289RP REAR CAMERA	$522.09	1
019	28MA426CP	REAR VIEW CAMERA BRACKET	28MA426CP REAR VIEW CAMERA BRACKET	$28.98	1
020	00RA706	SCR-PAN HD-TX-PTF-2.2X6-STL-80	00RA706 SCR-PAN HD-TX-PTF-2.2X6-STL-80	-	2	Enquire
021	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	-	2	Enquire
022	28MA453CP	RVC CONNECTORS BRACKET	28MA453CP RVC CONNECTORS BRACKET	$25.87	1
023	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX	-	2	Enquire
024	28MA498CP	SLIM CAMERAS ECU	28MA498CP SLIM CAMERAS ECU	$1,044.16	1
025	00RL004	FELT TAPE	00RL004 FELT TAPE Color codes: TAPE-FELT;	-	1	Enquire
025	00RL009	TY-FAST PLATFORM-750-0-C	00RL009 TY-FAST PLATFORM-750-0-C	-	1	Enquire
026	14M1190CP	CAMERA CONNECTOR BLANK	14M1190CP CAMERA CONNECTOR BLANK	$13.27	1
027	00RA303	Screw - Button Head - Hex Flange - M4x6-10.9 BLK	00RA303 Screw - Button Head - Hex Flange - M4x6-10.9 BLK	-	4	Enquire
031	16MA981CP	MA CAMERA 180 DEGREES-FRONT	16MA981CP MA CAMERA 180 DEGREES-FRONT	$483.41	1
