47 - Infotainment - 47.1 - Sound System

McLaren 750S Spider

Find Your Part

McLaren 750S Spider - 47 - INFOTAINMENT - 47.1 - SOUND SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13MA266CP SPEAKER - 80MM - FACIA HIGH-LINE - SPIDER REAR $213.35 To Order
Photo Part No Description Price (each) Stock
00RA463 SCREW- 2.9X13 - TORX - SELF TAPPER - PAN HEAD Enquire To Order
Photo Part No Description Price (each) Stock
14MA003CP TWEETER - 25MM - HIGH LINE $144.52 To Order
13M1028CP SPEAKER - 25MM $43.34 To Order
Photo Part No Description Price (each) Stock
00RL004 FELT TAPE Enquire To Order
11C0593CP TAPE ADHESIVE - COROPLAST - 837X - 19X100MM $33.94 To Order
14MA008CP TWEETER PATCH LEAD Enquire To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
14MA507CP NVH SEAL LH DOOR LOWER-TRANSDUCER $29.08 To Order
Photo Part No Description Price (each) Stock
14MA508CP NVH SEAL RH DOOR LOWER-TRANSDUCER $38.52 To Order
Photo Part No Description Price (each) Stock
13M1024CP SPEAKER - 200MM - HIGH-LINE $366.14 To Order
13M1029CP SPEAKER - 165MM $105.97 To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14M0895CP ASSY LH BRKT-TRANSDUCER DOOR LOWER $142.96 To Order
Photo Part No Description Price (each) Stock
00RA605 SCREW - BUTTON HEAD - FLANGE - M5X0.8X20-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
14M0897CP ASSY RH BRKT-TRANSDUCER DOOR LOWER $142.96 To Order
Photo Part No Description Price (each) Stock
14MA599CP NVH SEAL FR DOOR UPPER-TRANSDUCER $14.43 To Order
Photo Part No Description Price (each) Stock
14MA600CP NVH SEAL RR DOOR UPPER-TRANSDUCER $11.54 To Order
Photo Part No Description Price (each) Stock
16MA465CP 100MM TRANSDUCER-HIGH $164.84 To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
14MA584CP ASSY RH ENCLOSURE-TRANSDUCER 100MM $381.28 To Order
14MA585CP ASSY RH TRANSDUCER BLANKING PANEL $211.97 To Order
Photo Part No Description Price (each) Stock
00RA582 NUT - M5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14MA583CP ASSY LH ENCLOSURE-TRANSDUCER 100MM $381.28 To Order
14MA586CP ASSY LH TRANSDUCER BLANKING PANEL $211.97 To Order
Photo Part No Description Price (each) Stock
00RL011 EDGE CLIP - 202X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
14MA207SP BRKT RH-SPEAKER RR SPIDER $73.56 To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14MA206SP BRKT LH-SPEAKER RR SPIDER $73.56 To Order
Photo Part No Description Price (each) Stock
28MA500CP AUDIO AMPLIFIER-HL P28 Enquire To Order
Photo Part No Description Price (each) Stock
14MA547CP NVH SEAL DOOR MID RANGE TRANSDUCER $14.43 To Order
View All

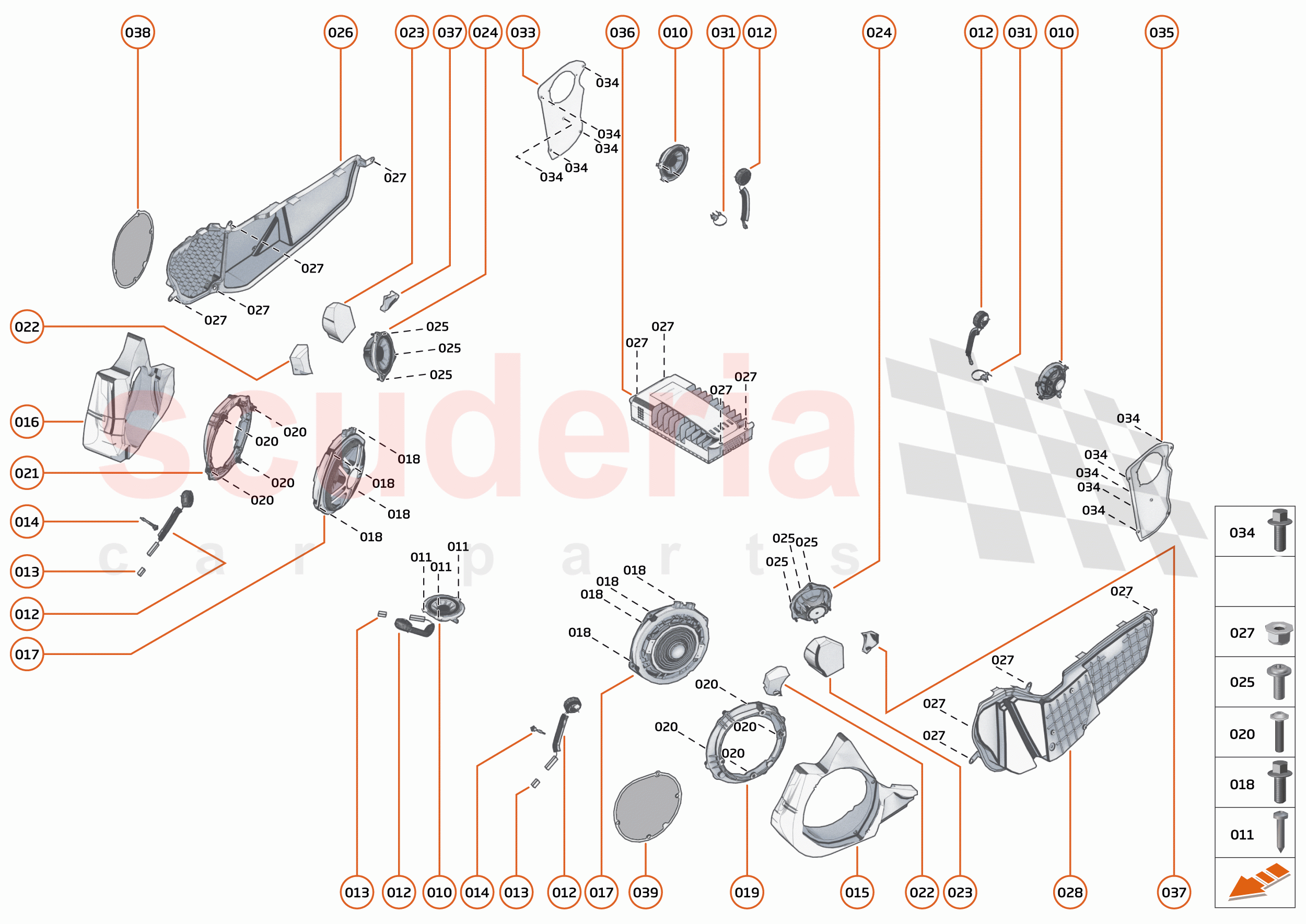

47 - INFOTAINMENT - 47.1 - SOUND SYSTEM of McLaren McLaren 750S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA574
SCREW - M5X25 - TORX 		- 8 Enquire
000 00RC017
WASHER - M5X15X1.2 		- 8 Enquire
000 00RA595
SCREW - BUTTON HEAD - TORX FLANGED - M3X16 		- 3 Enquire
000 00RA313
SCREW - M6X16 - HEX - SILVER 		- 3 Enquire
000 00RA372
BOLT - HEX HEAD - LOCK - M5X25 - 8.8 		- 8 Enquire
000 00RA522
BOLT - BUTTON HEAD - TORX - M5X16 		- 4 Enquire
000 00RC063
Washer - M5x20x1 		- 4 Enquire
000 14MA177SP
TRANSDUCER-STICKER BLACK SP 		$3.28 1
010 13MA266CP
SPEAKER - 80MM - FACIA HIGH-LINE - SPIDER REAR 		$213.35 1
011 00RA463
SCREW- 2.9X13 - TORX - SELF TAPPER - PAN HEAD 		- 3 Enquire
012 14MA003CP
TWEETER - 25MM - HIGH LINE 		$144.52 1
012 13M1028CP
SPEAKER - 25MM 		$43.34 2
013 00RL004
FELT TAPE
Color codes: TAPE-FELT; 		- 1 Enquire
013 11C0593CP
TAPE ADHESIVE - COROPLAST - 837X - 19X100MM 		$33.94 1
013 14MA008CP
TWEETER PATCH LEAD 		- 1 Enquire
014 00RL001
CABLE TIE - FIRTREE BASE 		- 2 Enquire
015 14MA507CP
NVH SEAL LH DOOR LOWER-TRANSDUCER 		$29.08 1
016 14MA508CP
NVH SEAL RH DOOR LOWER-TRANSDUCER 		$38.52 1
017 13M1024CP
SPEAKER - 200MM - HIGH-LINE 		$366.14 2
017 13M1029CP
SPEAKER - 165MM 		$105.97 2
018 00RX001
BOLT - M5X16 - HEX 		- 8 Enquire
019 14M0895CP
ASSY LH BRKT-TRANSDUCER DOOR LOWER 		$142.96 1
020 00RA605
SCREW - BUTTON HEAD - FLANGE - M5X0.8X20-8.8 		- 8 Enquire
021 14M0897CP
ASSY RH BRKT-TRANSDUCER DOOR LOWER 		$142.96 1
022 14MA599CP
NVH SEAL FR DOOR UPPER-TRANSDUCER 		$14.43 1
023 14MA600CP
NVH SEAL RR DOOR UPPER-TRANSDUCER 		$11.54 1
024 16MA465CP
100MM TRANSDUCER-HIGH 		$164.84 1
025 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 6 Enquire
026 14MA584CP
ASSY RH ENCLOSURE-TRANSDUCER 100MM 		$381.28 1
026 14MA585CP
ASSY RH TRANSDUCER BLANKING PANEL 		$211.97 1
027 00RA582
NUT - M5 - HEX 		- 8 Enquire
028 14MA583CP
ASSY LH ENCLOSURE-TRANSDUCER 100MM 		$381.28 1
028 14MA586CP
ASSY LH TRANSDUCER BLANKING PANEL 		$211.97 1
031 00RL011
EDGE CLIP - 202X4.6MM 		- 2 Enquire
033 14MA207SP
BRKT RH-SPEAKER RR SPIDER 		$73.56 1
034 00RA087
SCREW - M5X10 - HEX 		- 10 Enquire
035 14MA206SP
BRKT LH-SPEAKER RR SPIDER 		$73.56 1
036 28MA500CP
AUDIO AMPLIFIER-HL P28 		- 1 Enquire
037 14MA547CP
NVH SEAL DOOR MID RANGE TRANSDUCER 		$14.43 1
