31 - COOLING - HIGH TEMP - 31.2 - HIGH TEMP MAIN RADIATORS & FANS of McLaren McLaren 750S Spider

View All

McLaren 750S Spider - 31 - COOLING - HIGH TEMP - 31.2 - HIGH TEMP MAIN RADIATORS & FANS

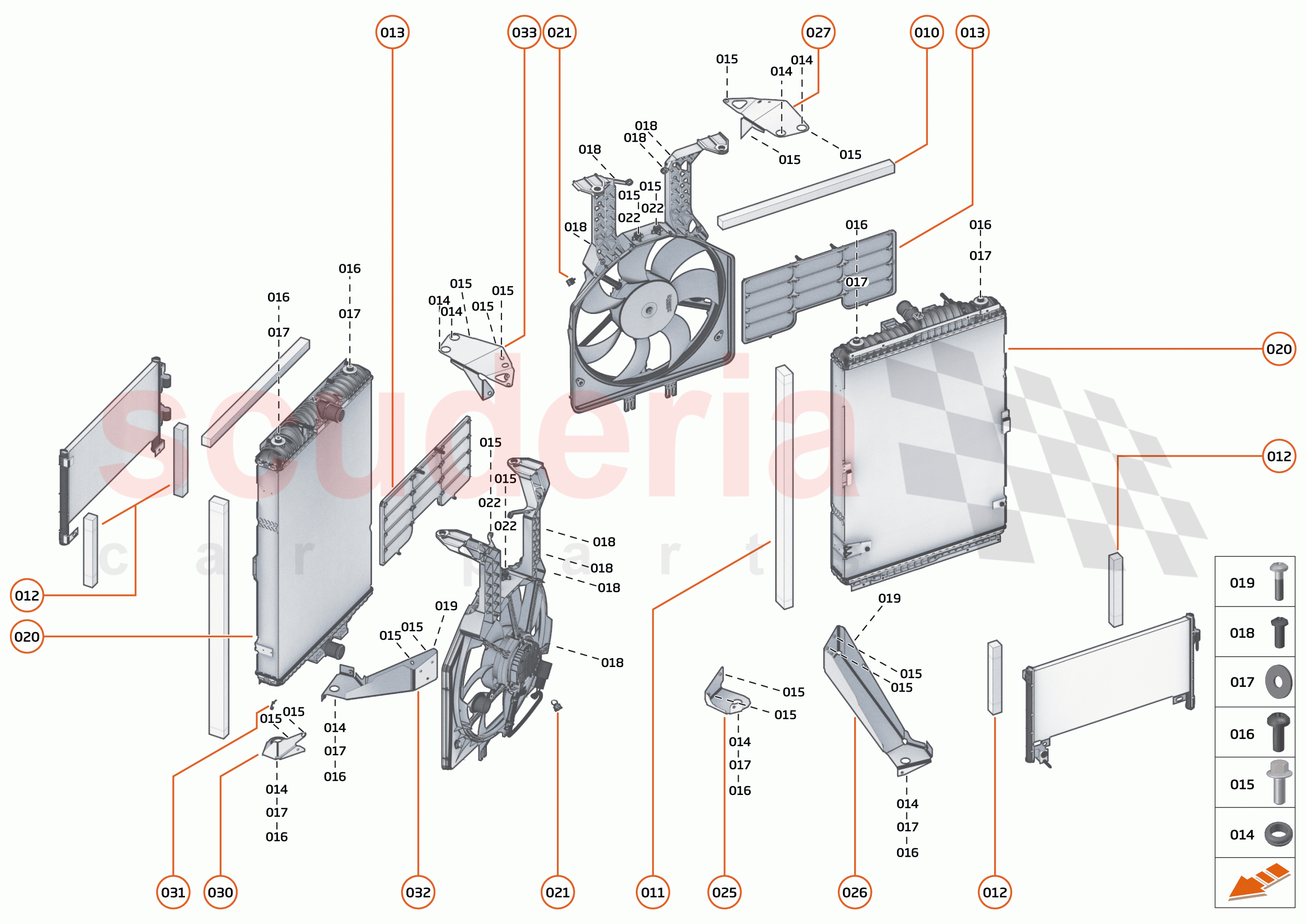

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13L0207CP	FLAP HOUSING - RADIATOR	$164.31	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG011	GROMMET - DIA 19 - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	SCREW - M6X16 - HEX - SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA353	SCREW - 6X14 - THREADFORMING - TORX - FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC043	WASHER - M6XOD25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA138	SCREW-TORX HEAD-DIA4X14-TF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA744	SCR-BTN HD-TX-FL-TF-6X2.46X14-STL-82	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13L0208CP	FAN ASSEMBLY - HIGH TEMPERATURE RADIATOR	$480.23	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG024	CABLE TIE - 90 DEG - EDGE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14LA087CP	BRKT-MNTG-RAD-LWR-FORE-LH	$43.48	To Order

Photo	Part No	Description	Price (each)	Stock
	14LA082CP	BRKT-MNTG-RAD-LWR-AFT-LH	$91.82	To Order

Photo	Part No	Description	Price (each)	Stock
	14LA085CP	BRKT-MNTG-RAD-UPR-LH	$53.14	To Order

Photo	Part No	Description	Price (each)	Stock
	14LA088CP	BRKT-MNTG-RAD-LWR-FORE-RH	$43.48	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL011	EDGE CLIP - 202X4.6MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14LA083CP	BRKT-MNTG-RAD-LWR-AFT-RH	$82.14	To Order

Photo	Part No	Description	Price (each)	Stock
	14LA086CP	BRKT-MNTG-RADIATOR-UPR-RH	$53.14	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RC074	SPACER - 6.5 X 12.7 X 6.4	00RC074 SPACER - 6.5 X 12.7 X 6.4	-	2	Enquire
000	00RC139	WSHR-PLN-M6X22X2-MS-86	00RC139 WSHR-PLN-M6X22X2-MS-86	-	2	Enquire
000	14LA058CP	HTR-AV-GROMMET	14LA058CP HTR-AV-GROMMET	$10.62	4
013	13L0207CP	FLAP HOUSING - RADIATOR	13L0207CP FLAP HOUSING - RADIATOR	$164.31	1
014	00RG011	GROMMET - DIA 19 - RUBBER	00RG011 GROMMET - DIA 19 - RUBBER	-	1	Enquire
015	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER	-	3	Enquire
016	00RA353	SCREW - 6X14 - THREADFORMING - TORX - FLANGE	00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE	-	2	Enquire
017	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25	-	2	Enquire
018	00RA138	SCREW-TORX HEAD-DIA4X14-TF	00RA138 SCREW-TORX HEAD-DIA4X14-TF	-	4	Enquire
019	00RA744	SCR-BTN HD-TX-FL-TF-6X2.46X14-STL-82	00RA744 SCR-BTN HD-TX-FL-TF-6X2.46X14-STL-82	-	2	Enquire
020	13L0208CP	FAN ASSEMBLY - HIGH TEMPERATURE RADIATOR	13L0208CP FAN ASSEMBLY - HIGH TEMPERATURE RADIATOR	$480.23	1
021	00RG024	CABLE TIE - 90 DEG - EDGE PANEL	00RG024 CABLE TIE - 90 DEG - EDGE PANEL	-	1	Enquire
025	14LA087CP	BRKT-MNTG-RAD-LWR-FORE-LH	14LA087CP BRKT-MNTG-RAD-LWR-FORE-LH	$43.48	1
026	14LA082CP	BRKT-MNTG-RAD-LWR-AFT-LH	14LA082CP BRKT-MNTG-RAD-LWR-AFT-LH	$91.82	1
027	14LA085CP	BRKT-MNTG-RAD-UPR-LH	14LA085CP BRKT-MNTG-RAD-UPR-LH	$53.14	1
030	14LA088CP	BRKT-MNTG-RAD-LWR-FORE-RH	14LA088CP BRKT-MNTG-RAD-LWR-FORE-RH	$43.48	1
031	00RL011	EDGE CLIP - 202X4.6MM	00RL011 EDGE CLIP - 202X4.6MM	-	1	Enquire
032	14LA083CP	BRKT-MNTG-RAD-LWR-AFT-RH	14LA083CP BRKT-MNTG-RAD-LWR-AFT-RH	$82.14	1
033	14LA086CP	BRKT-MNTG-RADIATOR-UPR-RH	14LA086CP BRKT-MNTG-RADIATOR-UPR-RH	$53.14	1
