19 - Suspension - Front - 19.3 - Transverse Links Front

McLaren 750S Spider

Find Your Part

McLaren 750S Spider - 19 - SUSPENSION - FRONT - 19.3 - TRANSVERSE LINKS FRONT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14BA163RP ASSY-WISHBONE-UPR-FR-RH $653.99 To Order
14BA162RP ASSY-WISHBONE-UPR-FR-LH $653.99 To Order
Photo Part No Description Price (each) Stock
00RX053 BOLT - WISHBONE - M10X1.5X35 Enquire To Order
Photo Part No Description Price (each) Stock
13BA490RP WISHBONE SPACER $33.66 To Order
Photo Part No Description Price (each) Stock
14BA324CP ASSY-WISHBONE-LWR-FR-RH $821.78 To Order
14BA323CP ASSY-WISHBONE -LWR-FR-LH $821.78 To Order
Photo Part No Description Price (each) Stock
11B1314CP BOLT - M10X70 - DAMPER MOUNTING - LOWER $8.25 To Order
Photo Part No Description Price (each) Stock
14BA006CP BRACKET - DISPLACEMENT SENSOR - FRONT - RH $28.82 To Order
14BA004CP BRACKET - DISPLACEMENT SENSOR - FRONT - LH $28.82 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
13B0681CP SENSOR - DISPLACEMENT $115.39 To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14B0494CP BALL SCKT SENSOR DISPLACEMENT - GIMBAL $33.66 To Order
Photo Part No Description Price (each) Stock
14B0545CP BALL STUD - DISPLACEMENT SENSOR $11.51 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA218 RING-PLAIN EXTERNAL-M2400-0400 Enquire To Order
Photo Part No Description Price (each) Stock
11B0800CP Tophat - Spacer - Diameter 20 - 10.2 ID $48.08 To Order
View All

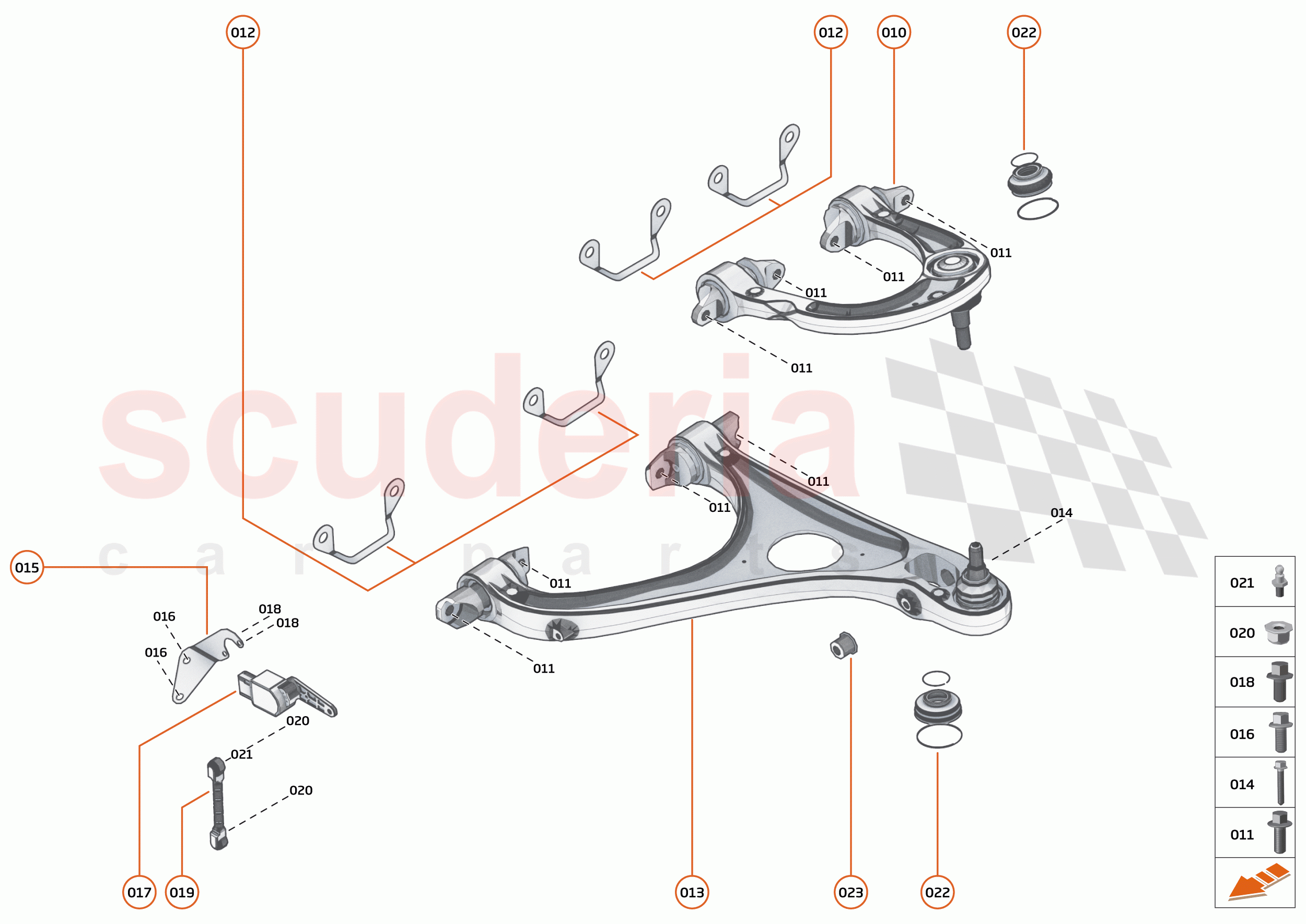

19 - SUSPENSION - FRONT - 19.3 - TRANSVERSE LINKS FRONT of McLaren McLaren 750S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA457
SCREW - M10X30-10.9 - HEX 		- 4 Enquire
010 14BA163RP
ASSY-WISHBONE-UPR-FR-RH 		$653.99 1
010 14BA162RP
ASSY-WISHBONE-UPR-FR-LH 		$653.99 1
011 00RX053
BOLT - WISHBONE - M10X1.5X35 		- 4 Enquire
012 13BA490RP
WISHBONE SPACER 		$33.66 2
013 14BA324CP
ASSY-WISHBONE-LWR-FR-RH 		$821.78 1
013 14BA323CP
ASSY-WISHBONE -LWR-FR-LH 		$821.78 1
014 11B1314CP
BOLT - M10X70 - DAMPER MOUNTING - LOWER 		$8.25 1
015 14BA006CP
BRACKET - DISPLACEMENT SENSOR - FRONT - RH 		$28.82 1
015 14BA004CP
BRACKET - DISPLACEMENT SENSOR - FRONT - LH 		$28.82 1
016 00RA083
SCREW - M6X20 - FLANGE HEX 		- 2 Enquire
017 13B0681CP
SENSOR - DISPLACEMENT 		$115.39 1
018 00RA087
SCREW - M5X10 - HEX 		- 2 Enquire
019 14B0494CP
BALL SCKT SENSOR DISPLACEMENT - GIMBAL 		$33.66 1
020 14B0545CP
BALL STUD - DISPLACEMENT SENSOR 		$11.51 2
021 00RA055
NUT - M6 - LOCKING - HEX 		- 1 Enquire
022 00RA218
RING-PLAIN EXTERNAL-M2400-0400 		- 1 Enquire
023 11B0800CP
Tophat - Spacer - Diameter 20 - 10.2 ID 		$48.08 1
024 14BA246CP
WISHBONE BUSH 		$153.87 1
025 14BA255CP
WISHBONE BUSH - 3.5MM 		$153.87 1
