Name: 7 - B2 - REAR SUSPENSION - 7.3 - 04 - DAMPING REAR PIPES KINETIC H2
Rating: 5.0 (1 reviews)

7 - B2 - REAR SUSPENSION - 7.3 - 04 - DAMPING REAR PIPES KINETIC H2 of McLaren McLaren 675LT Spider

View All

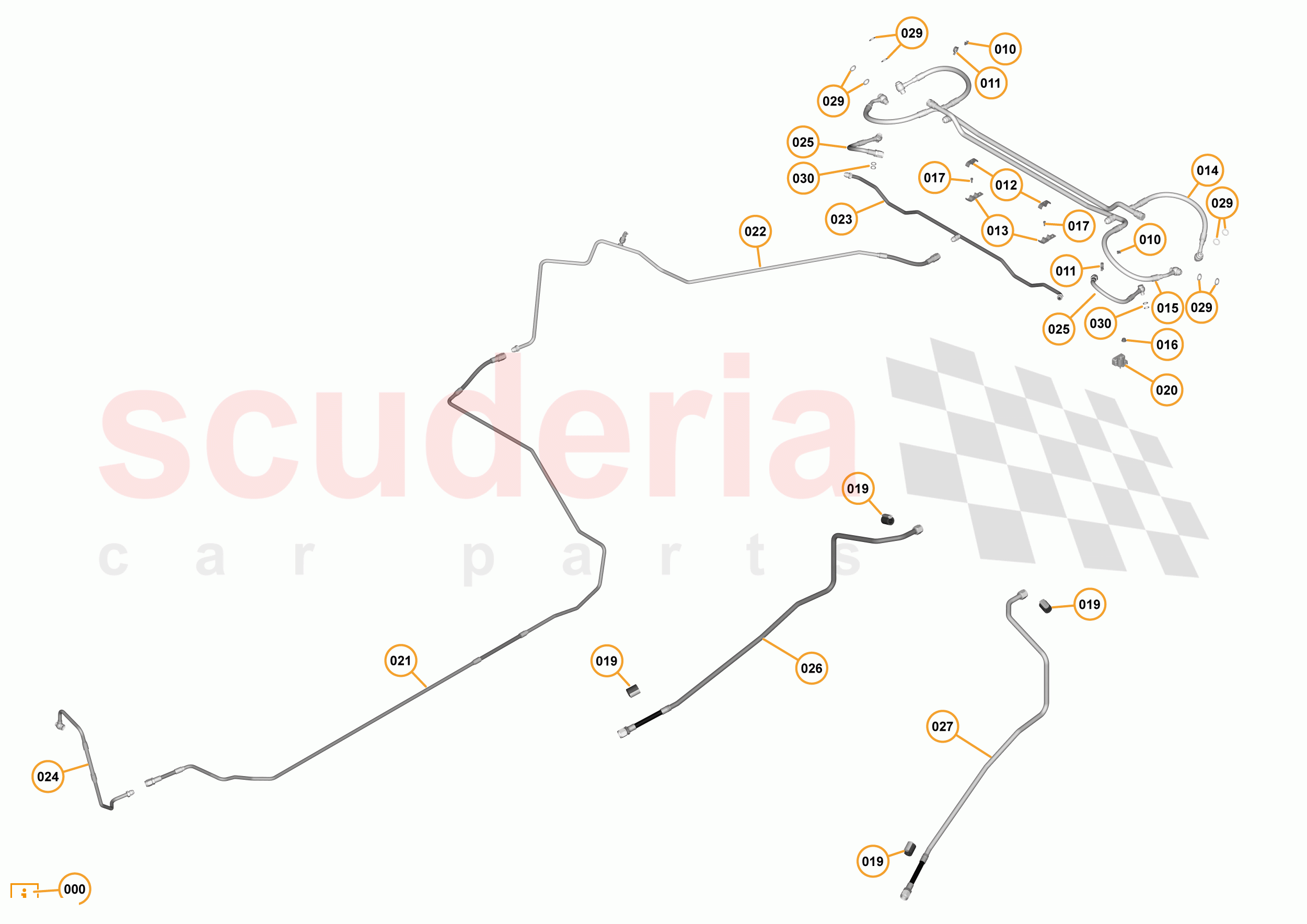

McLaren 675LT Spider - 7 - B2 - REAR SUSPENSION - 7.3 - 04 - DAMPING REAR PIPES KINETIC H2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11B1615CP	QUICK RELEASE - SUSPENSION BLEED CONNECTOR	$367.15	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB024	CLIP - 6.0-6.5MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB034	CLIP - 14-15MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0703CP	Hose Seperator - Upper	$38.63	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0704CP	HOSE SEPERATOR-LOW24	$38.63	To Order

Photo	Part No	Description	Price (each)	Stock
	11B1347CP	Hose - Suspension - Lateral - Rear - Upper - MY2015	$1,132.82	To Order

Photo	Part No	Description	Price (each)	Stock
	11B1348CP	Hose - Suspension - Lateral - Rear - Lower - MY2015	$2,688.08	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA058	SCREW - M4X10 - CAP SOCKET - 12.9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA357	PIPE PROTECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0252CP	Sensor - Accelerometer	$191.99	To Order

Photo	Part No	Description	Price (each)	Stock
	11B1114CP	Hose - Suspension - Rear - Nose Lift	$869.62	To Order

Photo	Part No	Description	Price (each)	Stock
	11B1115CP	Hose - Suspension - Rear Frame - Nose Lift	$599.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0986CP	Hose - Suspension - Rear to Dampers - Nose Lift	$328.51	To Order

Photo	Part No	Description	Price (each)	Stock
	11B1112CP	Hose - Suspension - Rear to Valve - Nose Lift	$463.79	To Order

Photo	Part No	Description	Price (each)	Stock
	11B1113CP	Hose - Damper Flexi - Rear - Noselift	$231.88	To Order

Photo	Part No	Description	Price (each)	Stock
	11B1346CP	Pipe - Suspension - Frame to Lateral Upper Pipe - Rear - RH	$1,430.07	To Order

Photo	Part No	Description	Price (each)	Stock
	11B1345CP	Pipe - Suspension - LH Frame to Lateral Lower Pipe - Rear	$1,410.73	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0685CP	Washer - Sealing - M14	$9.66	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1277SP	Washer - M10 x 1.27 x 14.8	$1.14	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	11B1615CP	QUICK RELEASE - SUSPENSION BLEED CONNECTOR	11B1615CP QUICK RELEASE - SUSPENSION BLEED CONNECTOR	$367.15	2
010	00RB024	CLIP - 6.0-6.5MM - FEMALE	00RB024 CLIP - 6.0-6.5MM - FEMALE	-	2	Enquire
011	00RB034	CLIP - 14-15MM - MALE	00RB034 CLIP - 14-15MM - MALE	-	2	Enquire
012	11B0703CP	Hose Seperator - Upper	11B0703CP Hose Seperator - Upper	$38.63	1
013	11B0704CP	HOSE SEPERATOR-LOW24	11B0704CP HOSE SEPERATOR-LOW24	$38.63	1
014	11B1347CP	Hose - Suspension - Lateral - Rear - Upper - MY2015	11B1347CP Hose - Suspension - Lateral - Rear - Upper - MY2015	$1,132.82	1
015	11B1348CP	Hose - Suspension - Lateral - Rear - Lower - MY2015	11B1348CP Hose - Suspension - Lateral - Rear - Lower - MY2015	$2,688.08	1
016	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX	-	1	Enquire
017	00RA058	SCREW - M4X10 - CAP SOCKET - 12.9	00RA058 SCREW - M4X10 - CAP SOCKET - 12.9	-	2	Enquire
019	00RA357	PIPE PROTECTOR	00RA357 PIPE PROTECTOR	-	4	Enquire
020	11M0252CP	Sensor - Accelerometer	11M0252CP Sensor - Accelerometer	$191.99	1
021	11B1114CP	Hose - Suspension - Rear - Nose Lift	11B1114CP Hose - Suspension - Rear - Nose Lift	$869.62	1
022	11B1115CP	Hose - Suspension - Rear Frame - Nose Lift	11B1115CP Hose - Suspension - Rear Frame - Nose Lift	$599.06	1
023	11B0986CP	Hose - Suspension - Rear to Dampers - Nose Lift	11B0986CP Hose - Suspension - Rear to Dampers - Nose Lift	$328.51	1
024	11B1112CP	Hose - Suspension - Rear to Valve - Nose Lift	11B1112CP Hose - Suspension - Rear to Valve - Nose Lift	$463.79	1
025	11B1113CP	Hose - Damper Flexi - Rear - Noselift	11B1113CP Hose - Damper Flexi - Rear - Noselift	$231.88	2
026	11B1346CP	Pipe - Suspension - Frame to Lateral Upper Pipe - Rear - RH	11B1346CP Pipe - Suspension - Frame to Lateral Upper Pipe - Rear - RH	$1,430.07	1
027	11B1345CP	Pipe - Suspension - LH Frame to Lateral Lower Pipe - Rear	11B1345CP Pipe - Suspension - LH Frame to Lateral Lower Pipe - Rear	$1,410.73	1
028	12F0684CP	Banjo Bolt - M14x1.5	12F0684CP Banjo Bolt - M14x1.5	$43.46	4
029	12F0685CP	Washer - Sealing - M14	12F0685CP Washer - Sealing - M14	$9.66	8
030	11F1277SP	Washer - M10 x 1.27 x 14.8	11F1277SP Washer - M10 x 1.27 x 14.8	$1.14	4

7 - B2 - Rear Suspension - 7.3 - 04 - Damping Rear Pipes Kinetic H2

McLaren 675LT Spider

McLaren 675LT Spider - 7 - B2 - REAR SUSPENSION - 7.3 - 04 - DAMPING REAR PIPES KINETIC H2
