7 - B2 - Rear Suspension - 7.1 - 01 - Rear Suspension Lh

McLaren 675LT Spider

Find Your Part

McLaren 675LT Spider - 7 - B2 - REAR SUSPENSION - 7.1 - 01 - REAR SUSPENSION LH

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12B0766CP Wishbone - Rear - Lower - LH $3,583.42 To Order
Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0946RP Suspension Unit - Tenneco - Rear - LH $3,891.67 To Order
11B1773RP Suspension Unit - Tenneco - Nose Lift - Rear - LH $3,964.89 To Order
Photo Part No Description Price (each) Stock
00RA471 Screw - M10x40 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
12B0470CP Bracket - Wishbone to Link Rod - Displacement Sensor - Rear - LH $115.57 To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0596CP Washer - M12x23x2 $33.71 To Order
Photo Part No Description Price (each) Stock
11B0595CP Bolt - M12x30 - Hex $38.51 To Order
Photo Part No Description Price (each) Stock
00RA229 NUT - M14X1.5 - LOCKED HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0739CP WASHER - CAMBER ADJUSTMENT $43.33 To Order
Photo Part No Description Price (each) Stock
11B0541CP TOPHAT - CAMBER ADJUSTMENT $62.59 To Order
Photo Part No Description Price (each) Stock
RA250 SCREW - M3X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0053RP Wishbone - Rear - Upper - LH - 675LT $1,232.99 To Order
Photo Part No Description Price (each) Stock
11B0852CP Gaiter - Tie Rod - Link Rod $105.95 To Order
Photo Part No Description Price (each) Stock
11B0013CP Tie Rod - Ball Joint - Inner $211.92 To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B1489RP Bracket - Displacement Sensor - Rear - LH - 675LT $58.14 To Order
11B1777RP Bracket - Displacement Sensor - Rear - LH - 675LT $62.59 To Order
Photo Part No Description Price (each) Stock
11M0253CP Sensor - Displacement $144.48 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0860CP Link Rod - Sensor - Displacement - Ball Socket - Rear Enquire To Order
Photo Part No Description Price (each) Stock
00RA174 Half Nut - M14 Enquire To Order
Photo Part No Description Price (each) Stock
11B0388CP LINK ROD-TOE LINK-RR $105.95 To Order
Photo Part No Description Price (each) Stock
11B0378CP Tie Rod - Ball Joint - Outer $308.24 To Order
Photo Part No Description Price (each) Stock
11D0122CP Heatshield - Trackrod $57.77 To Order
Photo Part No Description Price (each) Stock
11B0397CP Tophat - Trackrod - Outer Ball Joint - +2.5mm $57.77 To Order
Photo Part No Description Price (each) Stock
11B0205CP Washer - TrackRod Obj $8.65 To Order
Photo Part No Description Price (each) Stock
00RA281 Nut - M12x1.5 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
11B1491RP Upright - Suspension - Rear - LH - 675LT $3,082.51 To Order
Photo Part No Description Price (each) Stock
28BA474CP WHEEL HUB ASSY - BEARING $615.84 To Order
Photo Part No Description Price (each) Stock
00RA230 BOLT-HEX HD-FLANGE-M14X110X2.0 Enquire To Order
Photo Part No Description Price (each) Stock
00RA231 Nut - M14x2.0 - Locked Hex Enquire To Order
Photo Part No Description Price (each) Stock
11B1538CP ACCUMULATOR-SOP-STD $366.02 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
15BA315CP PROTECTOR CAP - HUB $38.26 To Order
Photo Part No Description Price (each) Stock
12B0574CP Heatshield - Lower - Outer Bush $125.20 To Order
Photo Part No Description Price (each) Stock
11B0802CP Bolt - M10x85 - Damper Mounting - Front $125.20 To Order
Photo Part No Description Price (each) Stock
11B0801CP Tophat - Spacer - Diameter 23 - 10.2 ID $48.15 To Order
Photo Part No Description Price (each) Stock
00RC054 Washer - M14x28x2.5mm Form A Enquire To Order
Photo Part No Description Price (each) Stock
11S5457CP TOP MOUNT - ACTUATOR - KIT $154.11 To Order
View All

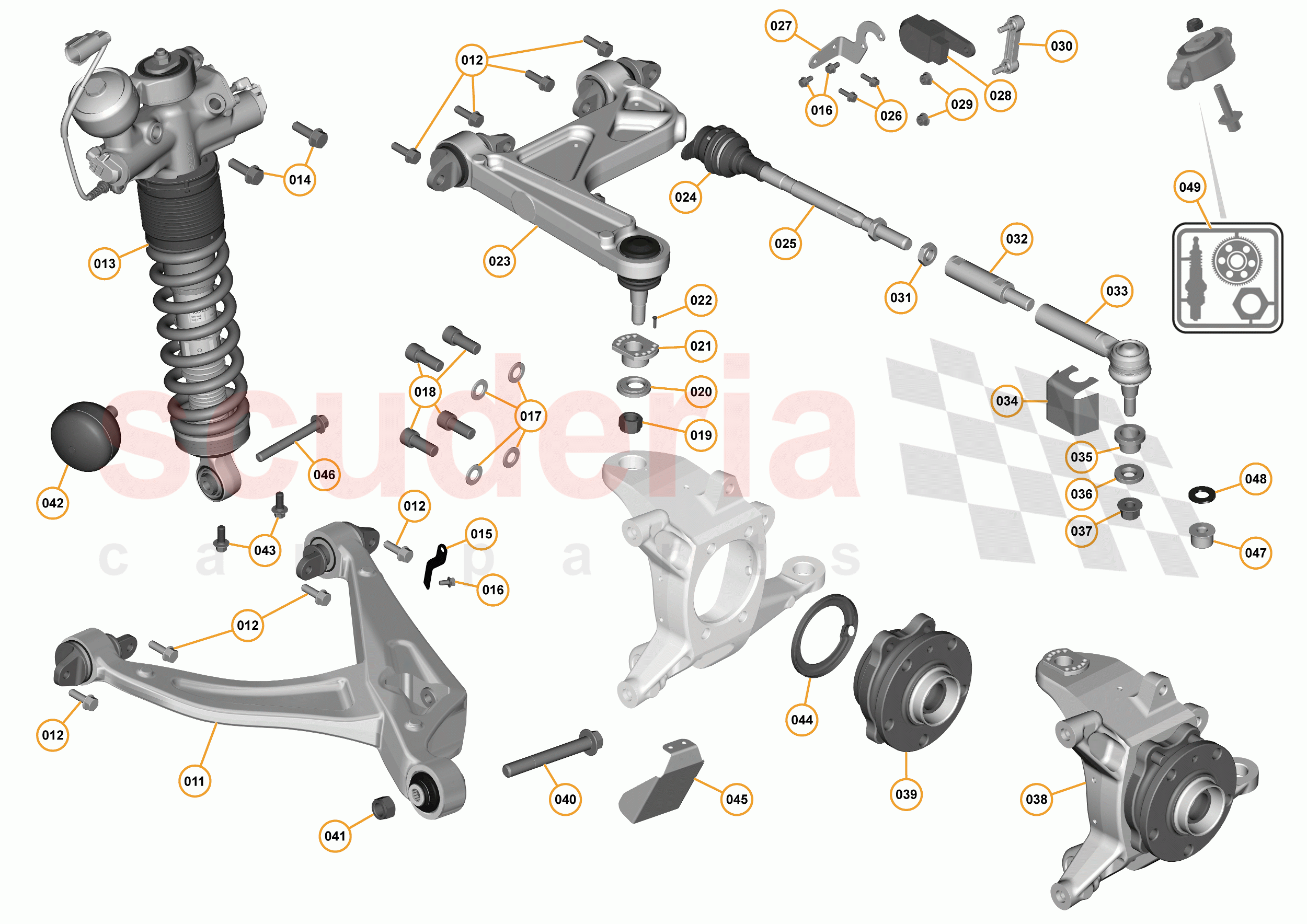

7 - B2 - REAR SUSPENSION - 7.1 - 01 - REAR SUSPENSION LH of McLaren McLaren 675LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11B0814CP
Harness - Tenneco - Damper 		$81.33 1
010 11B1552CP
Ball Joint - Gaiter - Kit 		$47.83 2
011 12B0766CP
Wishbone - Rear - Lower - LH 		$3,583.42 1
012 00RA457
SCREW - M10X30-10.9 - HEX 		- 8 Enquire
013 11B0946RP
Suspension Unit - Tenneco - Rear - LH 		$3,891.67 1
013 11B1773RP
Suspension Unit - Tenneco - Nose Lift - Rear - LH
Superseded parts: 11B0948RP; 		$3,964.89 1
014 00RA471
Screw - M10x40 - Hex 		- 2 Enquire
015 12B0470CP
Bracket - Wishbone to Link Rod - Displacement Sensor - Rear - LH 		$115.57 1
016 00RA087
SCREW - M5X10 - HEX 		- 5 Enquire
017 11B0596CP
Washer - M12x23x2 		$33.71 4
018 11B0595CP
Bolt - M12x30 - Hex 		$38.51 4
019 00RA229
NUT - M14X1.5 - LOCKED HEX 		- 1 Enquire
020 11B0739CP
WASHER - CAMBER ADJUSTMENT 		$43.33 1
021 11B0541CP
TOPHAT - CAMBER ADJUSTMENT 		$62.59 1
022 RA250
SCREW - M3X12 - HEX
Superseded parts: 00RA250; 		- 1 Enquire
023 11B0053RP
Wishbone - Rear - Upper - LH - 675LT 		$1,232.99 1
024 11B0852CP
Gaiter - Tie Rod - Link Rod 		$105.95 1
025 11B0013CP
Tie Rod - Ball Joint - Inner 		$211.92 1
026 00RX001
BOLT - M5X16 - HEX 		- 2 Enquire
027 11B1489RP
Bracket - Displacement Sensor - Rear - LH - 675LT 		$58.14 1
027 11B1777RP
Bracket - Displacement Sensor - Rear - LH - 675LT 		$62.59 1
028 11M0253CP
Sensor - Displacement 		$144.48 1
029 00RA055
NUT - M6 - LOCKING - HEX 		- 2 Enquire
030 11B0860CP
Link Rod - Sensor - Displacement - Ball Socket - Rear
Superseded parts: 11B0860CP; 		- 1 Enquire
031 00RA174
Half Nut - M14 		- 1 Enquire
032 11B0388CP
LINK ROD-TOE LINK-RR 		$105.95 1
033 11B0378CP
Tie Rod - Ball Joint - Outer 		$308.24 1
034 11D0122CP
Heatshield - Trackrod 		$57.77 1
035 11B0397CP
Tophat - Trackrod - Outer Ball Joint - +2.5mm 		$57.77 1
036 11B0205CP
Washer - TrackRod Obj 		$8.65 1
037 00RA281
Nut - M12x1.5 - Hex 		- 1 Enquire
038 11B1491RP
Upright - Suspension - Rear - LH - 675LT 		$3,082.51 1
039 28BA474CP
WHEEL HUB ASSY - BEARING 		$615.84 1
040 00RA230
BOLT-HEX HD-FLANGE-M14X110X2.0 		- 1 Enquire
041 00RA231
Nut - M14x2.0 - Locked Hex 		- 1 Enquire
042 11B1538CP
ACCUMULATOR-SOP-STD
Accumulator; 		$366.02 1
043 00RA002
BOLT - M8X20 - HEX 		- 2 Enquire
044 15BA315CP
PROTECTOR CAP - HUB 		$38.26 1
045 12B0574CP
Heatshield - Lower - Outer Bush 		$125.20 1
046 11B0802CP
Bolt - M10x85 - Damper Mounting - Front 		$125.20 1
047 11B0801CP
Tophat - Spacer - Diameter 23 - 10.2 ID 		$48.15 1
048 00RC054
Washer - M14x28x2.5mm Form A 		- 1 Enquire
049 11S5457CP
TOP MOUNT - ACTUATOR - KIT 		$154.11 1
050 14BA246CP
WISHBONE BUSH 		$154.11 1
051 14BA255CP
WISHBONE BUSH - 3.5MM 		$154.11 1
