3 - A3 -Closures - 3.8 - 04 - Engine Cover

McLaren 650S Spider

Find Your Part

McLaren 650S Spider - 3 - A3 -CLOSURES - 3.8 - 04 - ENGINE COVER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
11A7410CP Latch - Engine Cover $515.89 To Order
Photo Part No Description Price (each) Stock
11A3842CP Shim - 0.5mm $24.03 To Order
11A3841CP Shim - 1.0mm $38.44 To Order
Photo Part No Description Price (each) Stock
11A0256SP Hinge - Engine Cover - Spider - RH $649.63 To Order
Photo Part No Description Price (each) Stock
11A1969SP Hinge - Engine Cover - Spider - LH $649.63 To Order
Photo Part No Description Price (each) Stock
11A4727SP Ball Stud - Engine Cover $11.51 To Order
Photo Part No Description Price (each) Stock
11A6422SP Gas Strut - Engine Cover - Spider $153.84 To Order
Photo Part No Description Price (each) Stock
11A0341SP Glass Assy - Engine Cover Bonded - Spider $1,413.93 To Order
Photo Part No Description Price (each) Stock
11A4020SP BUMPSTOP - ENGINE COVER $23.87 To Order
Photo Part No Description Price (each) Stock
11A1572CP STRIKER-LATCH-ENGINE COVER $57.31 To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
11A4647CP Heatshield - Engine Cover Latch $66.85 To Order
Photo Part No Description Price (each) Stock
11A4666CP Helicopter Tape - Bumpstop $14.31 To Order
Photo Part No Description Price (each) Stock
11A5404SP Engine Cover - Spider - Outer - RH $1,127.31 To Order
Photo Part No Description Price (each) Stock
11A5408SP Engine Cover - Spider - Outer - LH $1,127.31 To Order
Photo Part No Description Price (each) Stock
00RA430 SCREW - M4X10 - BUTTON HEAD - 10.9 Enquire To Order
Photo Part No Description Price (each) Stock
00RA134 Nut - M6 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RC008 WASHER - M6X12.5X0.9 Enquire To Order
Photo Part No Description Price (each) Stock
11A6675SP Spacer - Engine Cover Latch $24.03 To Order
Photo Part No Description Price (each) Stock
00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Enquire To Order
Photo Part No Description Price (each) Stock
00RA127 SCREW - M6X20 - HEX Enquire To Order
View All

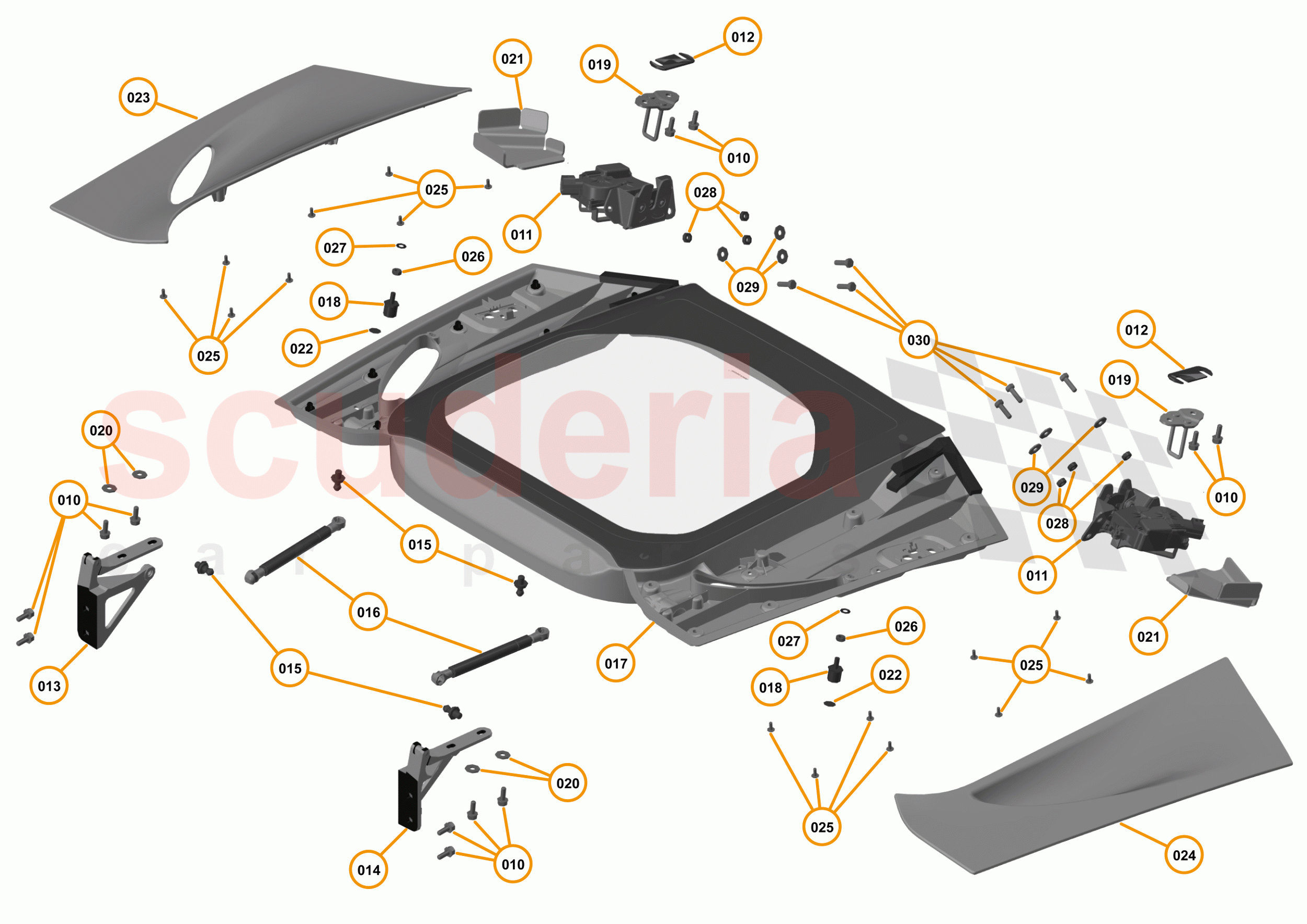

3 - A3 -CLOSURES - 3.8 - 04 - ENGINE COVER of McLaren McLaren 650S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA061
Screw - M6x16 - Flange Hex 		- 12 Enquire
011 11A7410CP
Latch - Engine Cover 		$515.89 2
012 11A3842CP
Shim - 0.5mm 		$24.03 8
012 11A3841CP
Shim - 1.0mm 		$38.44 4
013 11A0256SP
Hinge - Engine Cover - Spider - RH 		$649.63 1
014 11A1969SP
Hinge - Engine Cover - Spider - LH 		$649.63 1
015 11A4727SP
Ball Stud - Engine Cover 		$11.51 4
016 11A6422SP
Gas Strut - Engine Cover - Spider 		$153.84 2
017 11A0341SP
Glass Assy - Engine Cover Bonded - Spider 		$1,413.93 1
018 11A4020SP
BUMPSTOP - ENGINE COVER 		$23.87 2
019 11A1572CP
STRIKER-LATCH-ENGINE COVER 		$57.31 2
020 00RC064
WASHER - M6X18X1.6 - BLACK 		- 8 Enquire
021 11A4647CP
Heatshield - Engine Cover Latch 		$66.85 2
022 11A4666CP
Helicopter Tape - Bumpstop 		$14.31 2
023 11A5404SP
Engine Cover - Spider - Outer - RH 		$1,127.31 1
024 11A5408SP
Engine Cover - Spider - Outer - LH 		$1,127.31 1
025 00RA430
SCREW - M4X10 - BUTTON HEAD - 10.9 		- 16 Enquire
026 00RA134
Nut - M6 - Hex 		- 2 Enquire
027 00RC008
WASHER - M6X12.5X0.9 		- 2 Enquire
028 11A6675SP
Spacer - Engine Cover Latch 		$24.03 6
029 00RC077
WASHER - M6X18X1.6 - STAINLESS STEEL 		- 6 Enquire
030 00RA127
SCREW - M6X20 - HEX 		- 6 Enquire
