4 - A4 - Panels, Glazing, And Paint - 4.5 - 03 - Rear Fenders - 12C

McLaren 650S Spider

Find Your Part

McLaren 650S Spider - 4 - A4 - PANELS, GLAZING, AND PAINT - 4.5 - 03 - REAR FENDERS - 12C

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RM010 Ratchet Rivet - 12.7-20.6 Enquire To Order
Photo Part No Description Price (each) Stock
11A1541CP BRKT-ROCKER-RR-LWR MTG-LH $115.22 To Order
Photo Part No Description Price (each) Stock
00RA129 SCREW - NR8X16 Enquire To Order
Photo Part No Description Price (each) Stock
11A3902CP ROCKER BAFFLE FOAM24H $106.30 To Order
Photo Part No Description Price (each) Stock
00RC049 WASHER - M6X3.0MM Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
11A7267CP Bodyside Assy - Rear - Lower - RH $2,362.32 To Order
Photo Part No Description Price (each) Stock
11A1540CP BRKT-ROCKER-RR-LWR MTG-RH $115.22 To Order
Photo Part No Description Price (each) Stock
00RC028 WASHER - M6 FORM C Enquire To Order
Photo Part No Description Price (each) Stock
11A1536CP COVER-RR-LWR-DOOR SHUT-RH $144.03 To Order
Photo Part No Description Price (each) Stock
11A3076CP SIDE TICK PANEL CARBON RH $1,939.79 To Order
11A0396CP Side Tick Panel - RH $1,037.11 To Order
Photo Part No Description Price (each) Stock
11A4118CP RADIATOR INLET DUC24RR-RH $787.43 To Order
Photo Part No Description Price (each) Stock
11A3074CP Tick Closing Panel - Upper - RH $144.03 To Order
Photo Part No Description Price (each) Stock
00RA238 SCREW - M6X16 - LOCK BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
11A6632SP Rocker Baffle Foam - Spider - Upper - RH $106.30 To Order
Photo Part No Description Price (each) Stock
00RA112 TORX SCREW-WASHER 4.2X16 Enquire To Order
Photo Part No Description Price (each) Stock
11A7516CP Bodyside Outer Support - Rear - RH $364.90 To Order
Photo Part No Description Price (each) Stock
11A6636SP Bodyside Assy - Rear - Spider - RH $8,066.48 To Order
Photo Part No Description Price (each) Stock
11A5402SP Deck - Rear - Spider $2,151.05 To Order
Photo Part No Description Price (each) Stock
00RC010 Washer - M8x17x2 Enquire To Order
Photo Part No Description Price (each) Stock
00RA191 Bolt - M8x30 - 12.9 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RC050 WASHER - M6X5.0MM Enquire To Order
Photo Part No Description Price (each) Stock
11A3354CP Vent - Rear Deck $384.10 To Order
Photo Part No Description Price (each) Stock
11A8102CP Outrigger - Rear - LH $1,536.46 To Order
Photo Part No Description Price (each) Stock
11A6634SP Bodyside Assy - Rear - Spider - LH $8,066.48 To Order
Photo Part No Description Price (each) Stock
11A7266CP Bodyside Assy - Rear - Lower - LH $2,362.32 To Order
Photo Part No Description Price (each) Stock
11A4117CP Radiator Inlet Duct - Rear - LH $787.43 To Order
Photo Part No Description Price (each) Stock
11A3071CP Tick Closing Panel - Upper - LH $144.03 To Order
Photo Part No Description Price (each) Stock
11A7515CP Bodyside Outer Support - Rear - LH $384.10 To Order
Photo Part No Description Price (each) Stock
11A6631SP Rocker Baffle Foam - Spider - Upper - LH $115.96 To Order
Photo Part No Description Price (each) Stock
11A3073CP SIDE TICK PANEL CARBON LH $2,055.02 To Order
11A0395CP Side Tick Panel - LH $1,229.16 To Order
Photo Part No Description Price (each) Stock
11A3901CP ROCKER BAFFLE FOAM24H $106.30 To Order
Photo Part No Description Price (each) Stock
11A1537CP COVER-RR-LWR-DOOR 24UT-LH $144.03 To Order
Photo Part No Description Price (each) Stock
11A5339CP Radiator Mesh - LH Enquire To Order
Photo Part No Description Price (each) Stock
11A7875CP Radiator Mesh - RH $845.05 To Order
Photo Part No Description Price (each) Stock
00RM003 Rivet - DIA 5 x 10 - Torx Enquire To Order
Photo Part No Description Price (each) Stock
11A4899CP Baffle - Bodyside Access Closing - LH $91.22 To Order
Photo Part No Description Price (each) Stock
11A4905CP Baffle - Bodyside Access Closing - RH $91.22 To Order
Photo Part No Description Price (each) Stock
00RK004 Rivnut - Bollhoff - M4 - 1.00-2.00 - 2330-704-0325 Enquire To Order
Photo Part No Description Price (each) Stock
11A7600SP Butress Induction Duct - Spider - RH $703.53 To Order
Photo Part No Description Price (each) Stock
11A7599SP Butress Induction Duct - Spider - LH $710.60 To Order
Photo Part No Description Price (each) Stock
11A6418SP Induction Duct - Bodyside - Spider - LH $560.57 To Order
Photo Part No Description Price (each) Stock
11A6419SP Induction Duct - Bodyside - Spider - RH $560.57 To Order
View All

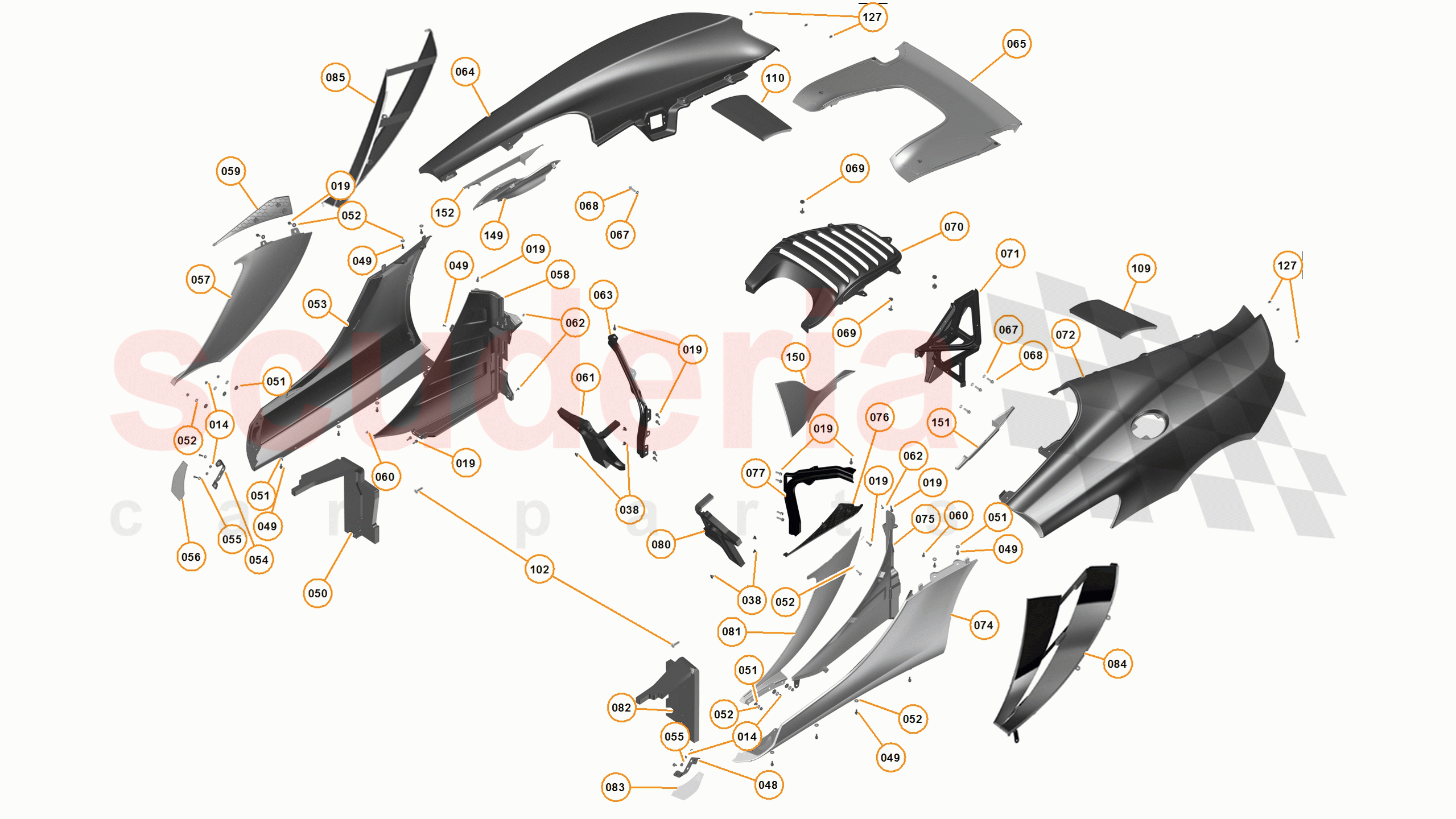

4 - A4 - PANELS, GLAZING, AND PAINT - 4.5 - 03 - REAR FENDERS - 12C of McLaren McLaren 650S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
014 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 4 Enquire
019 00RA083
SCREW - M6X20 - FLANGE HEX 		- 4 Enquire
038 00RM010
Ratchet Rivet - 12.7-20.6 		- 24 Enquire
048 11A1541CP
BRKT-ROCKER-RR-LWR MTG-LH 		$115.22 1
049 00RA129
SCREW - NR8X16 		- 4 Enquire
050 11A3902CP
ROCKER BAFFLE FOAM24H 		$106.30 1
051 00RC049
WASHER - M6X3.0MM 		- 6 Enquire
052 00RC064
WASHER - M6X18X1.6 - BLACK 		- 10 Enquire
053 11A7267CP
Bodyside Assy - Rear - Lower - RH 		$2,362.32 1
054 11A1540CP
BRKT-ROCKER-RR-LWR MTG-RH 		$115.22 1
055 00RC028
WASHER - M6 FORM C 		- 4 Enquire
056 11A1536CP
COVER-RR-LWR-DOOR SHUT-RH 		$144.03 1
057 11A3076CP
SIDE TICK PANEL CARBON RH 		$1,939.79 1
057 11A0396CP
Side Tick Panel - RH 		$1,037.11 1
058 11A4118CP
RADIATOR INLET DUC24RR-RH 		$787.43 1
059 11A3074CP
Tick Closing Panel - Upper - RH 		$144.03 1
060 00RA238
SCREW - M6X16 - LOCK BUTTON 		- 8 Enquire
061 11A6632SP
Rocker Baffle Foam - Spider - Upper - RH 		$106.30 1
062 00RA112
TORX SCREW-WASHER 4.2X16 		- 4 Enquire
063 11A7516CP
Bodyside Outer Support - Rear - RH
Superseded parts: 11A0938CP; 		$364.90 1
064 11A6636SP
Bodyside Assy - Rear - Spider - RH 		$8,066.48 1
065 11A5402SP
Deck - Rear - Spider 		$2,151.05 1
067 00RC010
Washer - M8x17x2 		- 6 Enquire
068 00RA191
Bolt - M8x30 - 12.9 - Hex 		- 6 Enquire
069 00RC050
WASHER - M6X5.0MM 		- 4 Enquire
070 11A3354CP
Vent - Rear Deck 		$384.10 1
071 11A8102CP
Outrigger - Rear - LH 		$1,536.46 1
072 11A6634SP
Bodyside Assy - Rear - Spider - LH 		$8,066.48 1
074 11A7266CP
Bodyside Assy - Rear - Lower - LH 		$2,362.32 1
075 11A4117CP
Radiator Inlet Duct - Rear - LH 		$787.43 1
076 11A3071CP
Tick Closing Panel - Upper - LH 		$144.03 1
077 11A7515CP
Bodyside Outer Support - Rear - LH
Superseded parts: 11A0937CP; 		$384.10 1
080 11A6631SP
Rocker Baffle Foam - Spider - Upper - LH 		$115.96 1
081 11A3073CP
SIDE TICK PANEL CARBON LH 		$2,055.02 1
081 11A0395CP
Side Tick Panel - LH 		$1,229.16 1
082 11A3901CP
ROCKER BAFFLE FOAM24H 		$106.30 1
083 11A1537CP
COVER-RR-LWR-DOOR 24UT-LH 		$144.03 1
084 11A5339CP
Radiator Mesh - LH
Superseded parts: 11A5339CP; 		- 1 Enquire
085 11A7875CP
Radiator Mesh - RH
Superseded parts: 11A5338CP; 		$845.05 1
102 00RM003
Rivet - DIA 5 x 10 - Torx 		- 6 Enquire
109 11A4899CP
Baffle - Bodyside Access Closing - LH 		$91.22 1
110 11A4905CP
Baffle - Bodyside Access Closing - RH 		$91.22 1
127 00RK004
Rivnut - Bollhoff - M4 - 1.00-2.00 - 2330-704-0325
Superseded parts: 11A4760CP; 		- 6 Enquire
149 11A7600SP
Butress Induction Duct - Spider - RH
Superseded parts: 11A5400SP; 		$703.53 1
150 11A7599SP
Butress Induction Duct - Spider - LH
Superseded parts: 11A5405SP; 		$710.60 1
151 11A6418SP
Induction Duct - Bodyside - Spider - LH 		$560.57 1
152 11A6419SP
Induction Duct - Bodyside - Spider - RH 		$560.57 1
