13 - LINERS & NVH - 13.2 - REAR WHEELARCH LINERS of McLaren McLaren 570GT

View All

McLaren 570GT - 13 - LINERS & NVH - 13.2 - REAR WHEELARCH LINERS

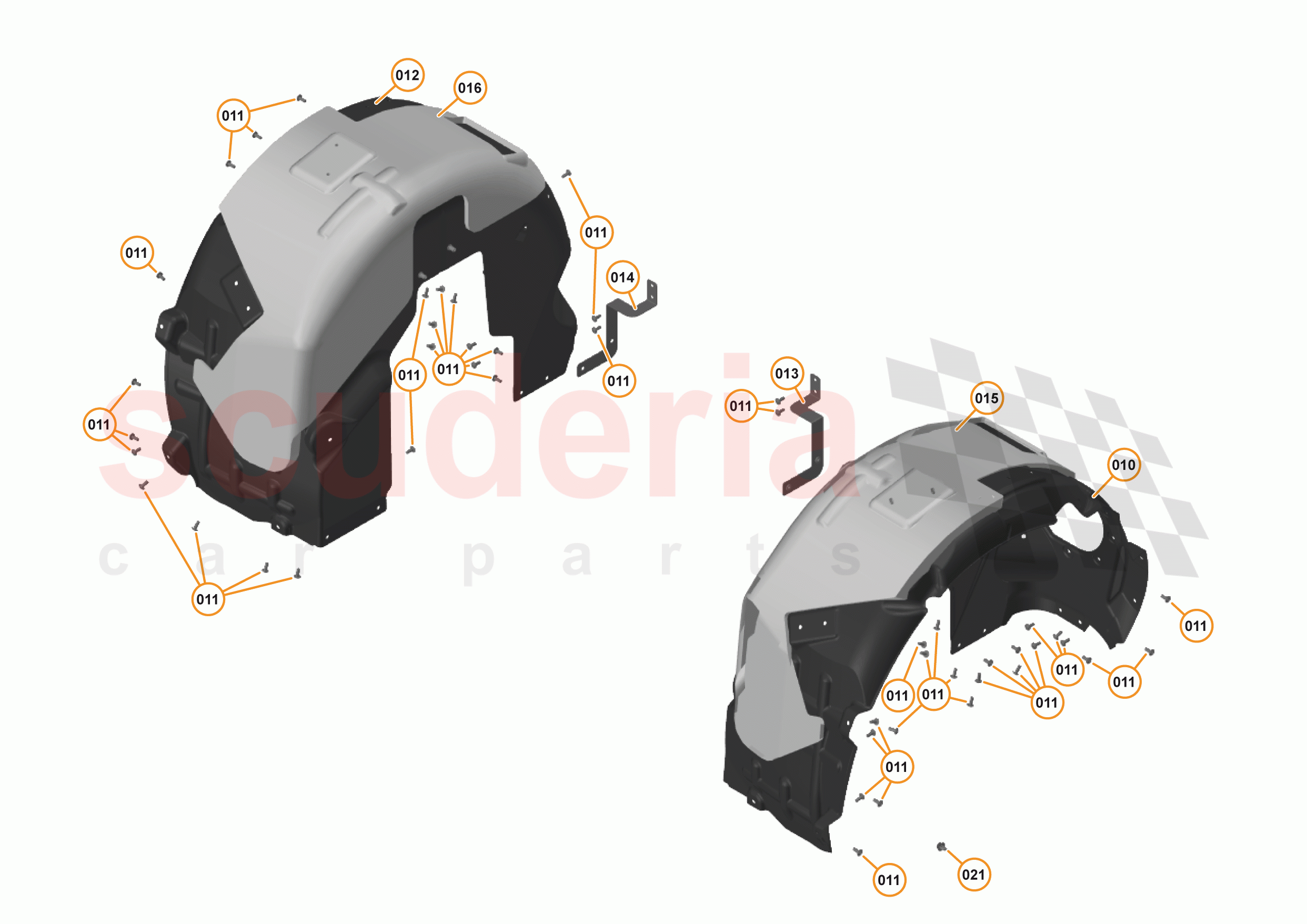

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13A4628CP	SPOILER - WHEEL ARCH - LH - FRONT	$231.49	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB017	CLIP - RAYMOND - 18.526.631	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A4629CP	SPOILER - WHEEL ARCH - RH - FRONT	$231.49	To Order
	13A3910CP	BRACKET - WHEEL ARCH LINER - UPPER - LH	$134.25	To Order

Photo	Part No	Description	Price (each)	Stock
	13A6091CP	WHEEL ARCH LINER - FRONT - FRONT - LH	$250.77	To Order
	13A3911CP	BRACKET - WHEEL ARCH LINER - UPPER - RH	$134.25	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA224	Screw Rivet - 18x19mm	Enquire	To Order
	13A7280GP	NVH - Wheel Arch Liner - Rear - LH	$67.50	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA174	Half Nut - M14	Enquire	To Order
	13A7281GP	NVH - Wheel Arch Liner - Rear - RH	$67.50	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB017	CLIP - RAYMOND - 18.526.631	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	13A4628CP	SPOILER - WHEEL ARCH - LH - FRONT	13A4628CP SPOILER - WHEEL ARCH - LH - FRONT	$231.49	1
011	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD	-	36	Enquire
012	00RB017	CLIP - RAYMOND - 18.526.631	00RB017 CLIP - RAYMOND - 18.526.631	-	1	Enquire
013	13A4629CP	SPOILER - WHEEL ARCH - RH - FRONT	13A4629CP SPOILER - WHEEL ARCH - RH - FRONT	$231.49	1
013	13A3910CP	BRACKET - WHEEL ARCH LINER - UPPER - LH	13A3910CP BRACKET - WHEEL ARCH LINER - UPPER - LH	$134.25	1
014	13A6091CP	WHEEL ARCH LINER - FRONT - FRONT - LH	13A6091CP WHEEL ARCH LINER - FRONT - FRONT - LH	$250.77	1
014	13A3911CP	BRACKET - WHEEL ARCH LINER - UPPER - RH	13A3911CP BRACKET - WHEEL ARCH LINER - UPPER - RH	$134.25	1
015	00RA224	Screw Rivet - 18x19mm	00RA224 Screw Rivet - 18x19mm	-	14	Enquire
015	13A7280GP	NVH - Wheel Arch Liner - Rear - LH	13A7280GP NVH - Wheel Arch Liner - Rear - LH	$67.50	1
016	00RA174	Half Nut - M14	00RA174 Half Nut - M14	-	2	Enquire
016	13A7281GP	NVH - Wheel Arch Liner - Rear - RH	13A7281GP NVH - Wheel Arch Liner - Rear - RH	$67.50	1
017	13A6094CP	WHEEL ARCH LINER - FRONT - FRONT - RH	13A6094CP WHEEL ARCH LINER - FRONT - FRONT - RH	$250.77	1
017	13AA750CP	WHEEL ARCH LINER - REAR - LH	13AA750CP WHEEL ARCH LINER - REAR - LH	$271.82	1
018	13A7240CP	WHEEL ARCH LINER - FRONT - REAR - LH	13A7240CP WHEEL ARCH LINER - FRONT - REAR - LH Superseded parts: 13A2284CP;	$250.77	1
018	13AA751CP	WHEEL ARCH LINER - REAR - LH - REAR	13AA751CP WHEEL ARCH LINER - REAR - LH - REAR	$252.41	1
019	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	-	2	Enquire
019	13AA753CP	WHEEL ARCH LINER-RR-RH FRNT	13AA753CP WHEEL ARCH LINER-RR-RH FRNT	$271.82	1
020	13A7241CP	WHEEL ARCH LINER - FRONT - REAR - RH	13A7241CP WHEEL ARCH LINER - FRONT - REAR - RH Superseded parts: 13A2286CP;	$250.77	1
020	13AA754CP	WHEEL ARCH LINER - REAR - RH - REAR	13AA754CP WHEEL ARCH LINER - REAR - RH - REAR	$252.41	1
021	00RB017	CLIP - RAYMOND - 18.526.631	00RB017 CLIP - RAYMOND - 18.526.631	-	1	Enquire
022	13A7098GP	NVH - Wheel Arch Liner - Front - Rear - LH	13A7098GP NVH - Wheel Arch Liner - Front - Rear - LH	$53.04	1
023	13A7099GP	NVH - Wheel Arch Liner - Front - Rear - RH	13A7099GP NVH - Wheel Arch Liner - Front - Rear - RH	$53.04	1
