8 - Exterior Ornamentation - 8.1 - Front Bumper

McLaren 570GT

Find Your Part

McLaren 570GT - 8 - EXTERIOR ORNAMENTATION - 8.1 - FRONT BUMPER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13A6423CP BUMPER - FRONT - UPPER - PDC $1,541.92 To Order
13A5228CP BUMPER - FRONT - UPPER - STANDARD $2,210.68 To Order
Photo Part No Description Price (each) Stock
00RA112 TORX SCREW-WASHER 4.2X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RB006 SPIER CLIP - 4.2X7 2.5X5.0 8MM Enquire To Order
Photo Part No Description Price (each) Stock
00RA263 SCREW - M6X20 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
13A6424CP BRACKET - PARKING SENSOR - FRONT - 2 $82.42 To Order
Photo Part No Description Price (each) Stock
13A6425CP BRACKET - PARKING SENSOR - FRONT - 3 $82.42 To Order
Photo Part No Description Price (each) Stock
13A5287CP COVER - TOW EYE - LH $175.67 To Order
Photo Part No Description Price (each) Stock
13A6669MP BUMPER - FRONT - LOWER - CAMERA - FOR PAINTED LTR BLADES Enquire To Order
13A6654MP BUMPER - FRONT - LOWER - CAMERA - PDC - FOR PAINTED LTR BLADES Enquire To Order
13A6651MP BUMPER - FRONT - LOWER - PDC - FOR PAINTED LTR BLADES Enquire To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13A6107CP BRACKET - PARKING SENSOR - FRONT - 1-570S $252.18 To Order
Photo Part No Description Price (each) Stock
13A6108CP BRACKET - PARKING SENSOR - FRONT - 4-570S $252.18 To Order
Photo Part No Description Price (each) Stock
13AA873CP PANEL - FRONT BUMPER - SIDE OUTER - LH $1,239.40 To Order
Photo Part No Description Price (each) Stock
13A5270CP BUMPER - FRONT - SIDE PANEL - OUTER-RH Enquire To Order
Photo Part No Description Price (each) Stock
13A5281CP BLADE - FRONT BUMPER - LOW TEMPERATURE RADIATOR - CARBON-LH-570S $2,269.70 To Order
13A5273CP BLADE - FRONT BUMPER - LOW TEMPERATURE RADIATOR - LH-570S Enquire To Order
Photo Part No Description Price (each) Stock
13A5285CP BLADE - FRONT BUMPER - LOW TEMPERATURE RADIATOR - CARBON-RH-570S $2,269.70 To Order
13A5277CP BLADE - FRONT BUMPER - LOW TEMPERATURE RADIATOR - RH-570S Enquire To Order
Photo Part No Description Price (each) Stock
13A5239CP CLOSER BLADE - LOW TEMPERATURE RADIATOR - RH $72.26 To Order
13A5238CP CLOSER BLADE - LOW TEMPERATURE RADIATOR - LH $72.26 To Order
Photo Part No Description Price (each) Stock
00RB176 CLIP - STEM Enquire To Order
Photo Part No Description Price (each) Stock
00RA174 Half Nut - M14 Enquire To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
00RB012 CLIP - 2MM - TRIM PANEL Enquire To Order
Photo Part No Description Price (each) Stock
13A4157CP FOAM - BUMPER SIDE PANEL - SUPPORT $15.31 To Order
Photo Part No Description Price (each) Stock
13A0058CP FOAM - BUMPER - FRONT - US Enquire To Order
13A0057CP FOAM - BUMPER - FRONT $578.21 To Order
Photo Part No Description Price (each) Stock
13A2941CP LICENSE PLATE - MOUNTING PLINTH - EUROPE $67.44 To Order
Photo Part No Description Price (each) Stock
13A2344CP LICENSE PLATE - MOUNTING PLINTH - JAPAN $67.44 To Order
Photo Part No Description Price (each) Stock
13A2345CP LICENSE PLATE - MOUNTING PLINTH - FEDERAL Enquire To Order
Photo Part No Description Price (each) Stock
13AA602CP LICENSE PLATE - MOUNTING PLINTH - CHINA Enquire To Order
Photo Part No Description Price (each) Stock
00RA249 Nut - M5 - Rawl Enquire To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13A6685CP BUMPER PROTECTION - FRONT - COMPLETE INSTALLATION KIT - SPORT $737.15 To Order
View All

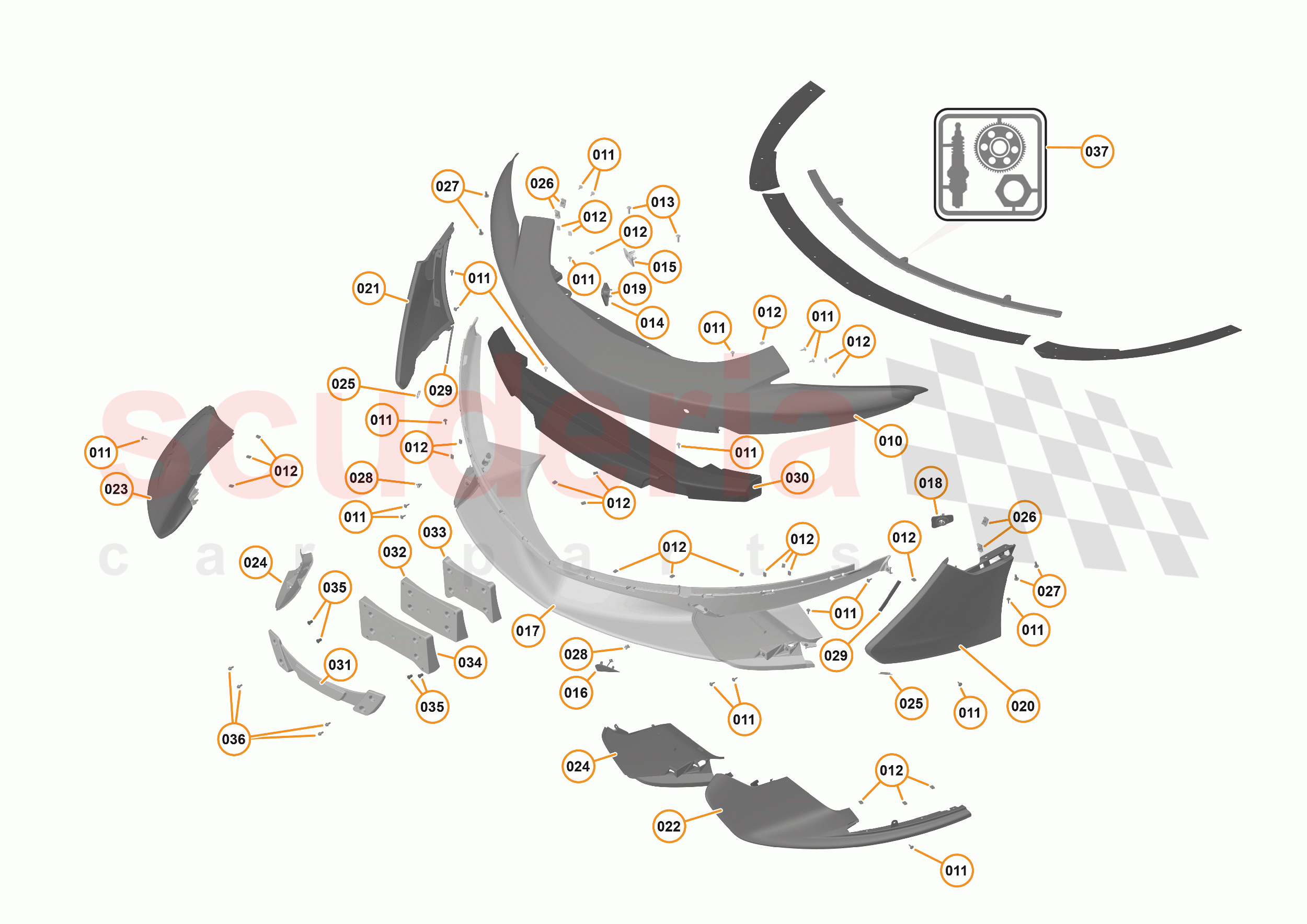

8 - EXTERIOR ORNAMENTATION - 8.1 - FRONT BUMPER of McLaren McLaren 570GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 13A5873CP
Film - Stone Chip - Front Bumper - Lower - PDC - 570S 		$329.76 1
000 13A5872CP
Film - Stone Chip - Front Bumper - Lower - Non PDC - 570S 		$316.49 1
000 13A5871CP
Film - Stone Chip - Front Bumper - Upper - PDC 		$407.37 1
000 13A6278CP
Film - Stone Chip - Front Kit - PDC 		$1,163.95 1
000 13A6277CP
Film - Stone Chip - Front Kit - Non PDC 		$1,144.79 1
010 13A6423CP
BUMPER - FRONT - UPPER - PDC
Superseded parts: 13A5234CP; 		$1,541.92 1
010 13A5228CP
BUMPER - FRONT - UPPER - STANDARD 		$2,210.68 1
011 00RA112
TORX SCREW-WASHER 4.2X16 		- 20 Enquire
012 00RB006
SPIER CLIP - 4.2X7 2.5X5.0 8MM 		- 23 Enquire
013 00RA263
SCREW - M6X20 - BUTTON 		- 2 Enquire
014 13A6424CP
BRACKET - PARKING SENSOR - FRONT - 2
Superseded parts: 13A2798CP; 		$82.42 1
015 13A6425CP
BRACKET - PARKING SENSOR - FRONT - 3
Superseded parts: 13A2799CP; 		$82.42 1
016 13A5287CP
COVER - TOW EYE - LH 		$175.67 1
017 13A6669MP
BUMPER - FRONT - LOWER - CAMERA - FOR PAINTED LTR BLADES 		- 1 Enquire
017 13A6654MP
BUMPER - FRONT - LOWER - CAMERA - PDC - FOR PAINTED LTR BLADES 		- 1 Enquire
017 13A6651MP
BUMPER - FRONT - LOWER - PDC - FOR PAINTED LTR BLADES 		- 1 Enquire
017 13A6581MP
BUMPER - FRONT - LOWER - STANDARD - FOR PAINTED LTR BLADES 		- 1 Enquire
017 13A6578MP
BUMPER - FRONT - LOWER - STANDARD - FOR CARBON LTR BLADES 		- 1 Enquire
017 13A6574MP
BUMPER - FRONT - LOWER - PARKTRONIC - FOR CARBON LTR BLADES 		- 1 Enquire
017 13A6571MP
BUMPER - FRONT - LOWER - CAMERA - PDC - FOR CARBON LTR BLADES 		- 1 Enquire
018 13A6107CP
BRACKET - PARKING SENSOR - FRONT - 1-570S 		$252.18 1
019 13A6108CP
BRACKET - PARKING SENSOR - FRONT - 4-570S 		$252.18 1
020 13AA873CP
PANEL - FRONT BUMPER - SIDE OUTER - LH 		$1,239.40 1
021 13A5270CP
BUMPER - FRONT - SIDE PANEL - OUTER-RH 		- 1 Enquire
022 13A5281CP
BLADE - FRONT BUMPER - LOW TEMPERATURE RADIATOR - CARBON-LH-570S 		$2,269.70 1
022 13A5273CP
BLADE - FRONT BUMPER - LOW TEMPERATURE RADIATOR - LH-570S 		- 1 Enquire
023 13A5285CP
BLADE - FRONT BUMPER - LOW TEMPERATURE RADIATOR - CARBON-RH-570S 		$2,269.70 1
023 13A5277CP
BLADE - FRONT BUMPER - LOW TEMPERATURE RADIATOR - RH-570S 		- 1 Enquire
024 13A5239CP
CLOSER BLADE - LOW TEMPERATURE RADIATOR - RH 		$72.26 1
024 13A5238CP
CLOSER BLADE - LOW TEMPERATURE RADIATOR - LH 		$72.26 1
025 00RB176
CLIP - STEM 		- 2 Enquire
026 00RA174
Half Nut - M14 		- 4 Enquire
027 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 4 Enquire
028 00RB012
CLIP - 2MM - TRIM PANEL 		- 2 Enquire
029 13A4157CP
FOAM - BUMPER SIDE PANEL - SUPPORT 		$15.31 2
030 13A0058CP
FOAM - BUMPER - FRONT - US 		- 1 Enquire
030 13A0057CP
FOAM - BUMPER - FRONT 		$578.21 1
031 13A2941CP
LICENSE PLATE - MOUNTING PLINTH - EUROPE 		$67.44 1
032 13A2344CP
LICENSE PLATE - MOUNTING PLINTH - JAPAN 		$67.44 1
033 13A2345CP
LICENSE PLATE - MOUNTING PLINTH - FEDERAL 		- 1 Enquire
034 13AA602CP
LICENSE PLATE - MOUNTING PLINTH - CHINA 		- 1 Enquire
035 00RA249
Nut - M5 - Rawl 		- 4 Enquire
036 00RA064
BOLT - M5X12 - HEX 		- 4 Enquire
037 13A6685CP
BUMPER PROTECTION - FRONT - COMPLETE INSTALLATION KIT - SPORT 		$737.15 1
038 11M0426CP
Sensor - Exterior Temperature 		$135.78 1
