McLaren 570S Coupe - 29 - COOLING - LOW TEMPERATURE - 29.1 - LOW TEMPERATURE CIRCUIT & PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RB201 CLAMP - SPRING BAND - 21X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RG018 SWIVEL CLIP - 22-24MM -MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
13LA006CP HOSE - LOW TEMPRATURE RADIATOR - OUTLET - LH $131.10 To Order
13L0246CP Hose - Low Temprature Radiator - Outlet - LH - Upto MY17 $131.10 To Order
Photo Part No Description Price (each) Stock
13LA008CP HOSE - LOW TEMPRATURE RADIATOR - OUTLET - RH $242.04 To Order
13L0244CP Hose - Low Temprature Radiator - Outlet - RH - Upto MY17 $242.04 To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB044 SWIVEL PIPE CLIP - 16MM Enquire To Order
Photo Part No Description Price (each) Stock
13L0247CP HOSE - LOW TEMPRATURE RADIATOR - INLET - LH $221.88 To Order
Photo Part No Description Price (each) Stock
13L0245CP HOSE - LOW TEMPRATURE RADIATOR - INLET - RH $121.01 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11L0203CP HOSE - LTR CIRCUIT - FEED - CENTRE $484.11 To Order
Photo Part No Description Price (each) Stock
11L0309CP CLIP - 2 WAY - LH $12.09 To Order
Photo Part No Description Price (each) Stock
11L0345CP CLIP - HVAC TUNNEL $50.41 To Order
Photo Part No Description Price (each) Stock
11L0204CP HOSE RETURN-LTR CIRCUIT-CTR $443.77 To Order
Photo Part No Description Price (each) Stock
11L0306CP CLIP-7 WAY RH 24 $17.13 To Order
Photo Part No Description Price (each) Stock
13L0187CP HOSE - WATER CHARGE AIR COOLER - INLET - LH $131.10 To Order
Photo Part No Description Price (each) Stock
13L0213CP CLIP - CHASSIS TUNNEL $19.14 To Order
Photo Part No Description Price (each) Stock
13L0214CP PIPE CLIP - REAR - LH $14.11 To Order
Photo Part No Description Price (each) Stock
13L0224CP PIPE CLIP - 5 WAY $13.09 To Order
Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RB202 CLAMP - SPRING BAND - 23X12 Enquire To Order
Photo Part No Description Price (each) Stock
13L0249CP HOSE - WATER CHARGE AIR COOLER - INLET - RH $131.10 To Order
Photo Part No Description Price (each) Stock
13L0212CP PIPE CLIP - 8 WAY $37.78 To Order
Photo Part No Description Price (each) Stock
13L0211CP PIPE CLIP - REAR - RIGHT $45.37 To Order
Photo Part No Description Price (each) Stock
13L0190CP HOSE - WATER CHARGE AIR COOLER - OUTLET $927.92 To Order
Photo Part No Description Price (each) Stock
00RG020 Swivel Clip - 20-24.5mm - Female Enquire To Order
Photo Part No Description Price (each) Stock
00RB038 Clip - 16-25mm Enquire To Order
Photo Part No Description Price (each) Stock
00RB007 CLIP - 18-20MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
View All

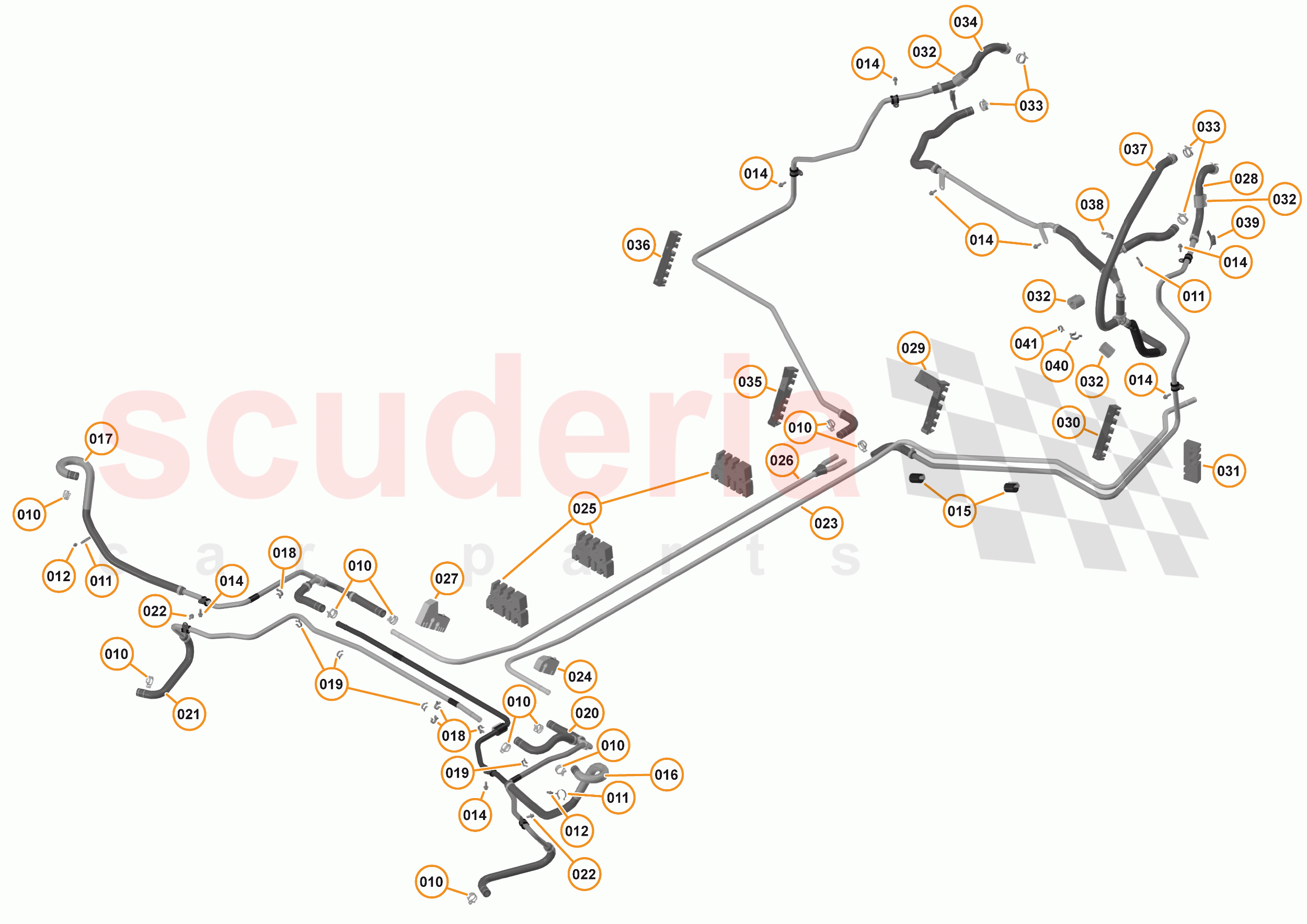

29 - COOLING - LOW TEMPERATURE - 29.1 - LOW TEMPERATURE CIRCUIT & PIPES of McLaren McLaren 570S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RB201
CLAMP - SPRING BAND - 21X12 		- 10 Enquire
011 00RG018
SWIVEL CLIP - 22-24MM -MALE 		- 3 Enquire
012 00RG019
SWIVEL - 6.5X10.5 FIRTREE BASE 		- 2 Enquire
013 00RB191
P-CLIP - 14X15 		- 8 Enquire
014 00RA313
SCREW - M6X16 - HEX - SILVER 		- 8 Enquire
015 00RA357
PIPE PROTECTOR 		- 3 Enquire
016 13LA006CP
HOSE - LOW TEMPRATURE RADIATOR - OUTLET - LH 		$131.10 1
016 13L0246CP
Hose - Low Temprature Radiator - Outlet - LH - Upto MY17 		$131.10 1
017 13LA008CP
HOSE - LOW TEMPRATURE RADIATOR - OUTLET - RH 		$242.04 1
017 13L0244CP
Hose - Low Temprature Radiator - Outlet - RH - Upto MY17 		$242.04 1
018 00RB032
CLIP - 13-14MM - FEMALE 		- 4 Enquire
019 00RB044
SWIVEL PIPE CLIP - 16MM 		- 4 Enquire
020 13L0247CP
HOSE - LOW TEMPRATURE RADIATOR - INLET - LH 		$221.88 1
021 13L0245CP
HOSE - LOW TEMPRATURE RADIATOR - INLET - RH 		$121.01 1
022 00RX003
BOLT - M6X1X12 - HEX 		- 2 Enquire
023 11L0203CP
HOSE - LTR CIRCUIT - FEED - CENTRE 		$484.11 1
024 11L0309CP
CLIP - 2 WAY - LH 		$12.09 1
025 11L0345CP
CLIP - HVAC TUNNEL 		$50.41 3
026 11L0204CP
HOSE RETURN-LTR CIRCUIT-CTR 		$443.77 1
027 11L0306CP
CLIP-7 WAY RH 24 		$17.13 1
028 13L0187CP
HOSE - WATER CHARGE AIR COOLER - INLET - LH 		$131.10 1
029 13L0213CP
CLIP - CHASSIS TUNNEL 		$19.14 1
030 13L0214CP
PIPE CLIP - REAR - LH 		$14.11 1
031 13L0224CP
PIPE CLIP - 5 WAY 		$13.09 1
032 00RA367
PIPE PROTECTOR - 19MM ID 		- 4 Enquire
033 00RB202
CLAMP - SPRING BAND - 23X12 		- 4 Enquire
034 13L0249CP
HOSE - WATER CHARGE AIR COOLER - INLET - RH 		$131.10 1
035 13L0212CP
PIPE CLIP - 8 WAY 		$37.78 1
036 13L0211CP
PIPE CLIP - REAR - RIGHT 		$45.37 1
037 13L0190CP
HOSE - WATER CHARGE AIR COOLER - OUTLET 		$927.92 1
038 00RG020
Swivel Clip - 20-24.5mm - Female 		- 1 Enquire
039 00RB038
Clip - 16-25mm 		- 2 Enquire
040 00RB007
CLIP - 18-20MM - FEMALE 		- 1 Enquire
041 00RB018
CLIP - 11-13MM - MALE 		- 1 Enquire
