McLaren 570S Coupe - 30 - FLUIDS - HVAC - 30.1 - HVAC FLUIDS CIRCUIT - R134A

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A4547CP Cap Set - HVAC Fill Point $33.71 To Order
11A5914CP Cap - HVAC - HS - P1436-D1830 $9.63 To Order
11A5913CP Cap - HVAC - LS - P1436-D1820 $9.63 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11A4263CP Hose - Compressor - Front - HVAC $481.63 To Order
Photo Part No Description Price (each) Stock
11A4434CP CLAMP PLATE - HVAC EVAPORATOR CONNECTION $72.23 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11A4262CP ASSY HOSE RECIEVER DRIER-HVAC- $366.02 To Order
Photo Part No Description Price (each) Stock
00RB007 CLIP - 18-20MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order
Photo Part No Description Price (each) Stock
28LA002CP HOSE - RECEIVER DRIER - HVAC - REAR $344.52 To Order
Photo Part No Description Price (each) Stock
12A2757CP RECEIVER DRIER - HVAC $443.09 To Order
Photo Part No Description Price (each) Stock
00RB029 P CLIP - DIA 45-M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
11A4433CP CLAMP PLATE - RECEIVER DRIER - HVAC $62.59 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC038 WASHER - WAVE M8 Enquire To Order
Photo Part No Description Price (each) Stock
13A4103CP HOSE - CONDENSER TO RECEIVER DRIER $250.44 To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13AA400CP HOSE - HEATER TO ENGINE - INCLUDING VALVE $231.16 To Order
13A6119CP Hose - Heater to Engine $327.49 To Order
Photo Part No Description Price (each) Stock
13AB202CP HOSE - HEATER TO PUMP - HVAC $658.12 To Order
Photo Part No Description Price (each) Stock
00RB202 CLAMP - SPRING BAND - 23X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB145 CLAMP - SPRING BAND - 26/12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB008 CLIP - 18-20MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
11A4587CP Bracket - Heater Pipe - Support - Non-Federal $33.71 To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC008 WASHER - M6X12.5X0.9 Enquire To Order
Photo Part No Description Price (each) Stock
11A4593CP SPACER-HVAC PIPE $24.07 To Order
Photo Part No Description Price (each) Stock
13A3615CP HOSE - CONDENSER LATERAL - CENTRE - HVAC $134.84 To Order
Photo Part No Description Price (each) Stock
13A3613CP HOSE - CONDENSER LATERAL - LH - HVAC $231.16 To Order
Photo Part No Description Price (each) Stock
13AB200CP HOSE - CONDENSER LATERAL - RH - HVAC $521.36 To Order
Photo Part No Description Price (each) Stock
00RB005 P CLIP - DIA 16 Enquire To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
13AA233CP HOSE - COMPRESSOR - REAR - HVAC $269.70 To Order
Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
13A3619CP HOSE - COMPRESSOR TO CONDENSER - HVAC $183.01 To Order
Photo Part No Description Price (each) Stock
11A4541CP Hose - Heater - Matrix - Feed $57.77 To Order
Photo Part No Description Price (each) Stock
11A4544CP WIPER-ASSY MOTOR B18CKET-RHD $62.59 To Order
Photo Part No Description Price (each) Stock
11A4542CP Hose - Heater - Engine - Feed Enquire To Order
Photo Part No Description Price (each) Stock
11A4545CP Hose - Heater - Engine - Return $72.23 To Order
View All

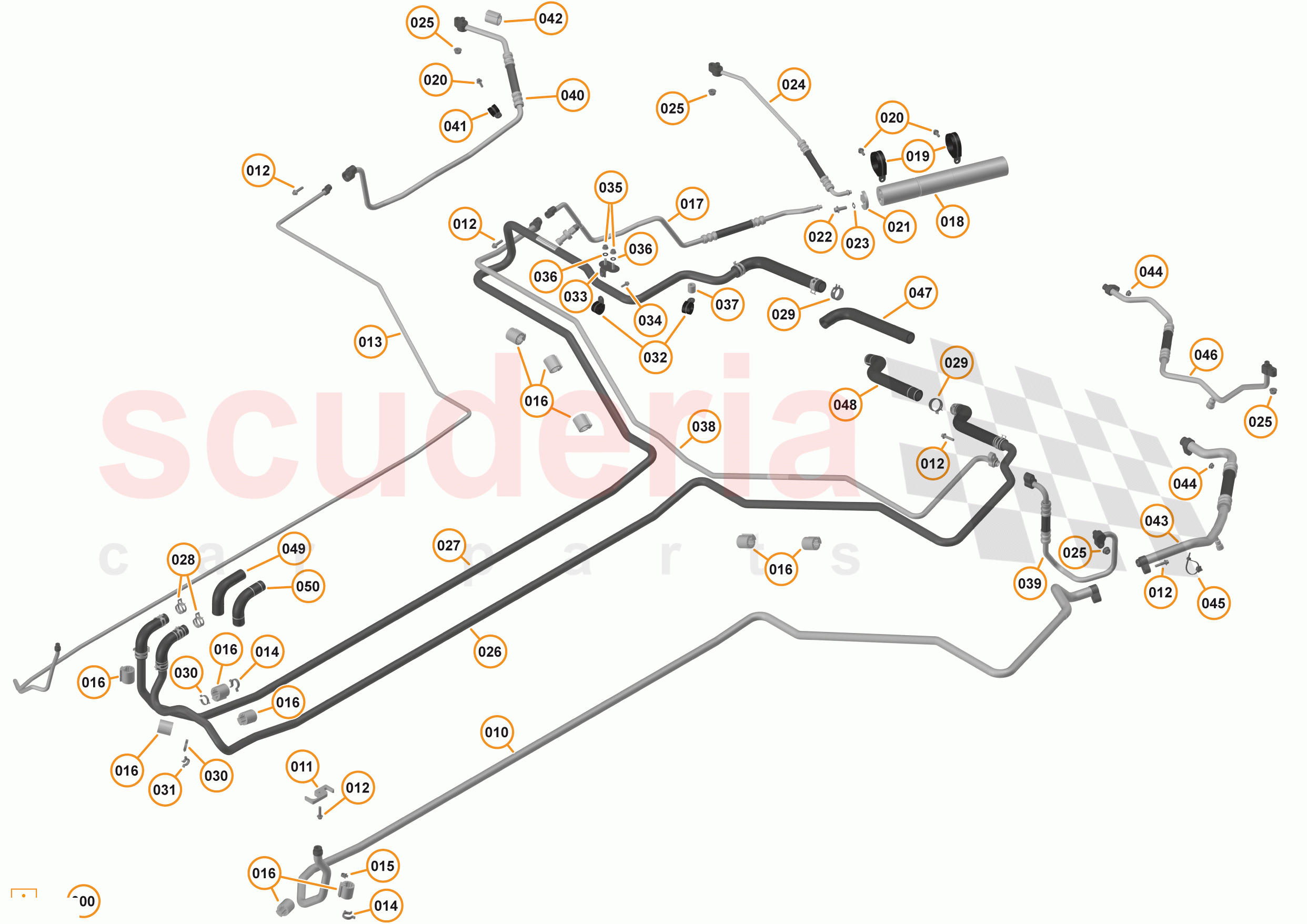

30 - FLUIDS - HVAC - 30.1 - HVAC FLUIDS CIRCUIT - R134A of McLaren McLaren 570S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11A4547CP
Cap Set - HVAC Fill Point 		$33.71 1
000 11A5914CP
Cap - HVAC - HS - P1436-D1830 		$9.63 1
000 11A5913CP
Cap - HVAC - LS - P1436-D1820 		$9.63 1
000 11A4061CP
Connection O-ring Kit - HVAC 		$228.37 1
000 11A5912CP
O-Ring - HVAC - PA439-D1290 - 13.75 x 2.50 		$9.03 1
000 11A5911CP
O-Ring - HVAC - PA439-D0051 - 13.4 x 2.4 		$6.93 1
000 11A5909CP
O-Ring - HVAC - PA439-D0160 - 7.65 x 1.78 		$6.93 1
000 11A5910CP
O-Ring - HVAC - P1439-D01300 - 16.25 x 2.5 		$9.03 1
000 11A5908CP
O-Ring - HVAC - PS439-D0250 - 9.19 x 2.62 		$6.93 1
000 11A5907CP
O-Ring - HVAC - PS439-D0041 - 10.8 x 2.4 		$6.14 1
000 11A5906CP
O-Ring - HVAC - PA439-D0250 - 6.7 x 1.8 		$7.88 1
010 11A4263CP
Hose - Compressor - Front - HVAC 		$481.63 1
011 11A4434CP
CLAMP PLATE - HVAC EVAPORATOR CONNECTION 		$72.23 1
012 00RA120
SCREW - M6X25 - HEX 		- 5 Enquire
013 11A4262CP
ASSY HOSE RECIEVER DRIER-HVAC- 		$366.02 1
014 00RB007
CLIP - 18-20MM - FEMALE 		- 2 Enquire
015 00RB045
CLIP - 9.5-10MM - MALE 		- 1 Enquire
016 00RA367
PIPE PROTECTOR - 19MM ID 		- 11 Enquire
017 28LA002CP
HOSE - RECEIVER DRIER - HVAC - REAR 		$344.52 1
018 12A2757CP
RECEIVER DRIER - HVAC 		$443.09 1
019 00RB029
P CLIP - DIA 45-M6 		- 2 Enquire
020 00RA313
SCREW - M6X16 - HEX - SILVER 		- 2 Enquire
021 11A4433CP
CLAMP PLATE - RECEIVER DRIER - HVAC 		$62.59 1
022 00RA002
BOLT - M8X20 - HEX 		- 1 Enquire
023 00RC038
WASHER - WAVE M8 		- 1 Enquire
024 13A4103CP
HOSE - CONDENSER TO RECEIVER DRIER 		$250.44 1
025 00RA075
NUT - M8-8 - HEX 		- 4 Enquire
026 13AA400CP
HOSE - HEATER TO ENGINE - INCLUDING VALVE 		$231.16 1
026 13A6119CP
Hose - Heater to Engine 		$327.49 1
027 13AB202CP
HOSE - HEATER TO PUMP - HVAC 		$658.12 1
028 00RB202
CLAMP - SPRING BAND - 23X12 		- 2 Enquire
029 00RB145
CLAMP - SPRING BAND - 26/12 		- 6 Enquire
030 00RB008
CLIP - 18-20MM - MALE 		- 2 Enquire
031 00RB032
CLIP - 13-14MM - FEMALE 		- 1 Enquire
032 00RB060
P CLIP - DIA 20 		- 2 Enquire
033 11A4587CP
Bracket - Heater Pipe - Support - Non-Federal 		$33.71 1
034 00RX001
BOLT - M5X16 - HEX 		- 1 Enquire
035 00RA055
NUT - M6 - LOCKING - HEX 		- 2 Enquire
036 00RC008
WASHER - M6X12.5X0.9 		- 2 Enquire
037 11A4593CP
SPACER-HVAC PIPE 		$24.07 1
038 13A3615CP
HOSE - CONDENSER LATERAL - CENTRE - HVAC 		$134.84 1
039 13A3613CP
HOSE - CONDENSER LATERAL - LH - HVAC 		$231.16 1
040 13AB200CP
HOSE - CONDENSER LATERAL - RH - HVAC 		$521.36 1
041 00RB005
P CLIP - DIA 16 		- 1 Enquire
042 00RA357
PIPE PROTECTOR 		- 1 Enquire
043 13AA233CP
HOSE - COMPRESSOR - REAR - HVAC
Superseded parts: 13A3621CP; 		$269.70 1
044 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 2 Enquire
045 00RL001
CABLE TIE - FIRTREE BASE 		- 1 Enquire
046 13A3619CP
HOSE - COMPRESSOR TO CONDENSER - HVAC 		$183.01 1
047 11A4541CP
Hose - Heater - Matrix - Feed 		$57.77 1
048 11A4544CP
WIPER-ASSY MOTOR B18CKET-RHD 		$62.59 1
049 11A4542CP
Hose - Heater - Engine - Feed 		- 1 Enquire
050 11A4545CP
Hose - Heater - Engine - Return 		$72.23 1
