16 - Suspension - Front - 16.2 - Uprights Front

McLaren 540C Coupe

Find Your Part

McLaren 540C Coupe - 16 - SUSPENSION - FRONT - 16.2 - UPRIGHTS FRONT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13BA100CP Upright - Suspension - Front - LH - Coupe $2,112.06 To Order
13BA191CP Upright - Suspension - Front - LH - Coupe Enquire To Order
Photo Part No Description Price (each) Stock
13AB031CP Upright - Suspension - Front - RH - Coupe Enquire To Order
13AB031CP Upright - Suspension - Front - RH - Coupe Enquire To Order
Photo Part No Description Price (each) Stock
13B0750CP TOPHAT - TRACKROD - 1.6 TAPER $28.96 To Order
Photo Part No Description Price (each) Stock
11B0541CP TOPHAT - CAMBER ADJUSTMENT $62.79 To Order
Photo Part No Description Price (each) Stock
RA250 SCREW - M3X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0739CP WASHER - CAMBER ADJUSTMENT $43.46 To Order
Photo Part No Description Price (each) Stock
00RA229 NUT - M14X1.5 - LOCKED HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0320CP WASHER - DIA 35X3.9X14.5 $12.54 To Order
Photo Part No Description Price (each) Stock
16BB154CP WHEEL HUB ASSY - BEARING $502.44 To Order
28BA474CP WHEEL HUB ASSY - BEARING $617.74 To Order
Photo Part No Description Price (each) Stock
15BA315CP PROTECTOR CAP - HUB $38.38 To Order
Photo Part No Description Price (each) Stock
11B0595CP Bolt - M12x30 - Hex $38.63 To Order
Photo Part No Description Price (each) Stock
11B0596CP Washer - M12x23x2 $33.81 To Order
Photo Part No Description Price (each) Stock
14B0373CP Stub Axle - Front $115.93 To Order
Photo Part No Description Price (each) Stock
11B0566CP NUT - M26 - 12POINT - HEX $11.57 To Order
Photo Part No Description Price (each) Stock
14B0373CP Stub Axle - Front $115.93 To Order
View All

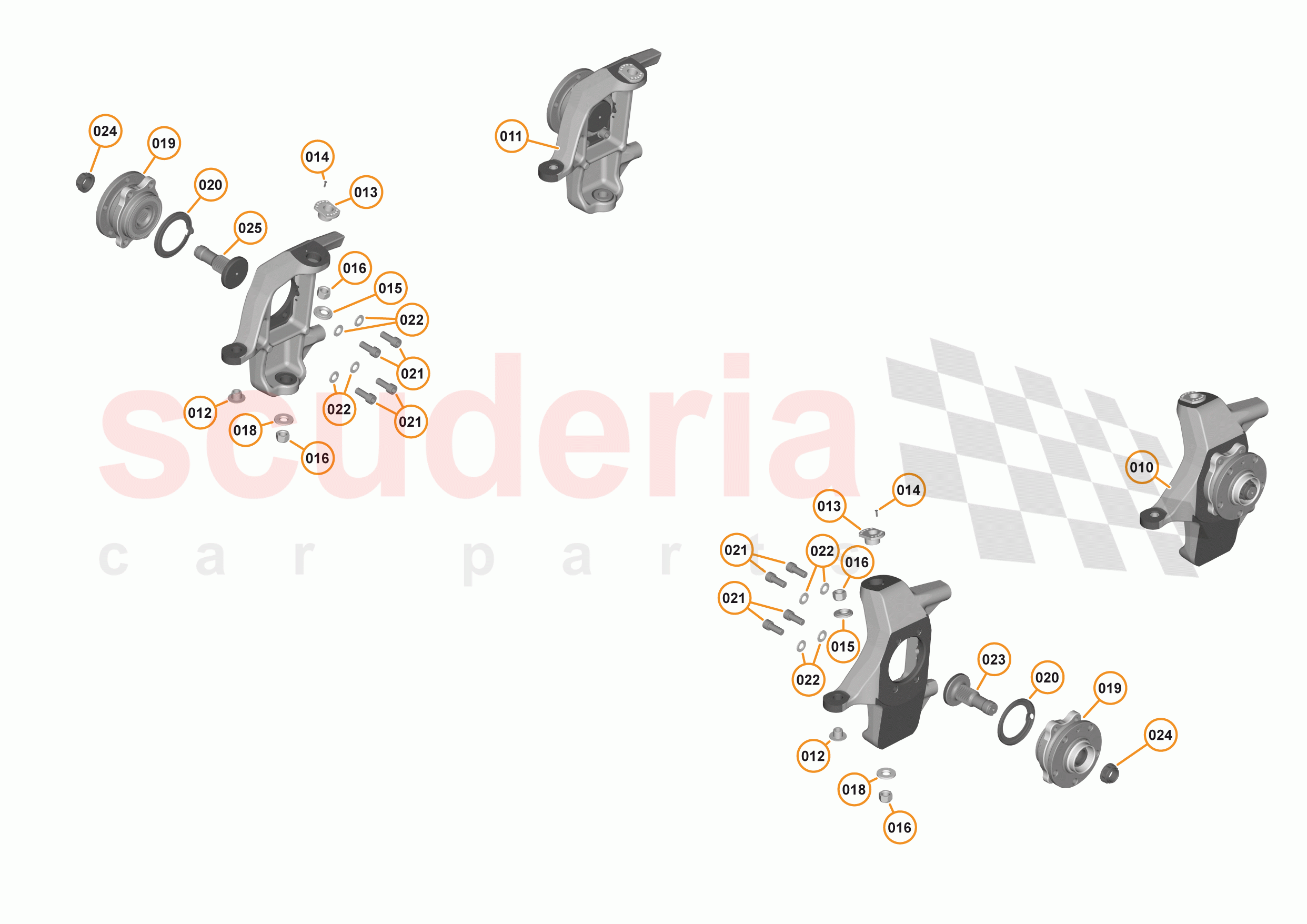

16 - SUSPENSION - FRONT - 16.2 - UPRIGHTS FRONT of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13BA100CP
Upright - Suspension - Front - LH - Coupe
Superseded parts: 13BA029CP; 		$2,112.06 1
010 13BA191CP
Upright - Suspension - Front - LH - Coupe
Superseded parts: 13BA029CP; 		- 1 Enquire
011 13AB031CP
Upright - Suspension - Front - RH - Coupe
Superseded parts: 13AB031CP; 		- 1 Enquire
011 13AB031CP
Upright - Suspension - Front - RH - Coupe
Superseded parts: 13AB031CP; 		- 1 Enquire
012 13B0750CP
TOPHAT - TRACKROD - 1.6 TAPER 		$28.96 2
013 11B0541CP
TOPHAT - CAMBER ADJUSTMENT 		$62.79 2
014 RA250
SCREW - M3X12 - HEX 		- 2 Enquire
015 11B0739CP
WASHER - CAMBER ADJUSTMENT 		$43.46 2
016 00RA229
NUT - M14X1.5 - LOCKED HEX 		- 4 Enquire
018 11B0320CP
WASHER - DIA 35X3.9X14.5 		$12.54 2
019 16BB154CP
WHEEL HUB ASSY - BEARING 		$502.44 2
019 28BA474CP
WHEEL HUB ASSY - BEARING 		$617.74 2
020 15BA315CP
PROTECTOR CAP - HUB 		$38.38 2
021 11B0595CP
Bolt - M12x30 - Hex 		$38.63 8
022 11B0596CP
Washer - M12x23x2 		$33.81 8
023 14B0373CP
Stub Axle - Front
Superseded parts: 11B0317CP; 		$115.93 2
024 11B0566CP
NUT - M26 - 12POINT - HEX 		$11.57 2
025 14B0373CP
Stub Axle - Front
Superseded parts: 11B0317CP; 		$115.93 2
