26 - Fuel Tank - 26.1 - Fuel Tank

McLaren 540C Coupe

Find Your Part

McLaren 540C Coupe - 26 - FUEL TANK - 26.1 - FUEL TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13K0122CP Fuel Tank - Assy - W/ Pumps & Controller - China Enquire To Order
13KA049CP Fuel Tank - Assy - No Pumps & Controllers $2,852.04 To Order
Photo Part No Description Price (each) Stock
11K0054CP BRACKET - CHARCOAL CANISTER $143.54 To Order
Photo Part No Description Price (each) Stock
11K0057CP FILTER - CHARCOAL $612.50 To Order
Photo Part No Description Price (each) Stock
11K0151CP PIPE-MOULDED-CANNISTER-UPR $211.92 To Order
Photo Part No Description Price (each) Stock
11K0164CP OETIKER CLIP - 59.0-706R $19.24 To Order
Photo Part No Description Price (each) Stock
11K0134CP PIPE - PURGE - FUEL TANK $211.92 To Order
Photo Part No Description Price (each) Stock
00RB074 Swivel Clip - 11-13mm - Female Enquire To Order
Photo Part No Description Price (each) Stock
00RG018 SWIVEL CLIP - 22-24MM -MALE Enquire To Order
Photo Part No Description Price (each) Stock
11H0301CP Bung - Check Valve $4.59 To Order
Photo Part No Description Price (each) Stock
13K0066CP RETAINING RING - FUEL TANK - ACCESS PLATE $33.71 To Order
Photo Part No Description Price (each) Stock
11K0250CP SEAL - FUEL TANK - ACCESS PLATE RETAINING RING - FORRETAININGRING13K0066CP $43.32 To Order
Photo Part No Description Price (each) Stock
00RA521 SCREW - BUTTON HEAD - HEX - M5X16-10.9-86 Enquire To Order
Photo Part No Description Price (each) Stock
00RC097 WASHER - 6.4X12X1.6 Enquire To Order
Photo Part No Description Price (each) Stock
11K0009CP FILTER - FUEL $363.68 To Order
Photo Part No Description Price (each) Stock
11K0027CP ASSY-FUEL PUMP-LH 24 $1,033.62 To Order
Photo Part No Description Price (each) Stock
11K0047CP ASSY-PLATE-ACCESS 24 $115.57 To Order
Photo Part No Description Price (each) Stock
11K0004CP PUMP - FUEL - RH $1,033.62 To Order
Photo Part No Description Price (each) Stock
13K0077CP PAD - FUEL TANK - BULKHEAD - UPPER-RH $17.21 To Order
Photo Part No Description Price (each) Stock
13M1258CP HARNESS - FUEL CELL $818.38 To Order
Photo Part No Description Price (each) Stock
11K0153CP BREATHER DUCT - FUEL TANK - LOWER $52.62 To Order
View All

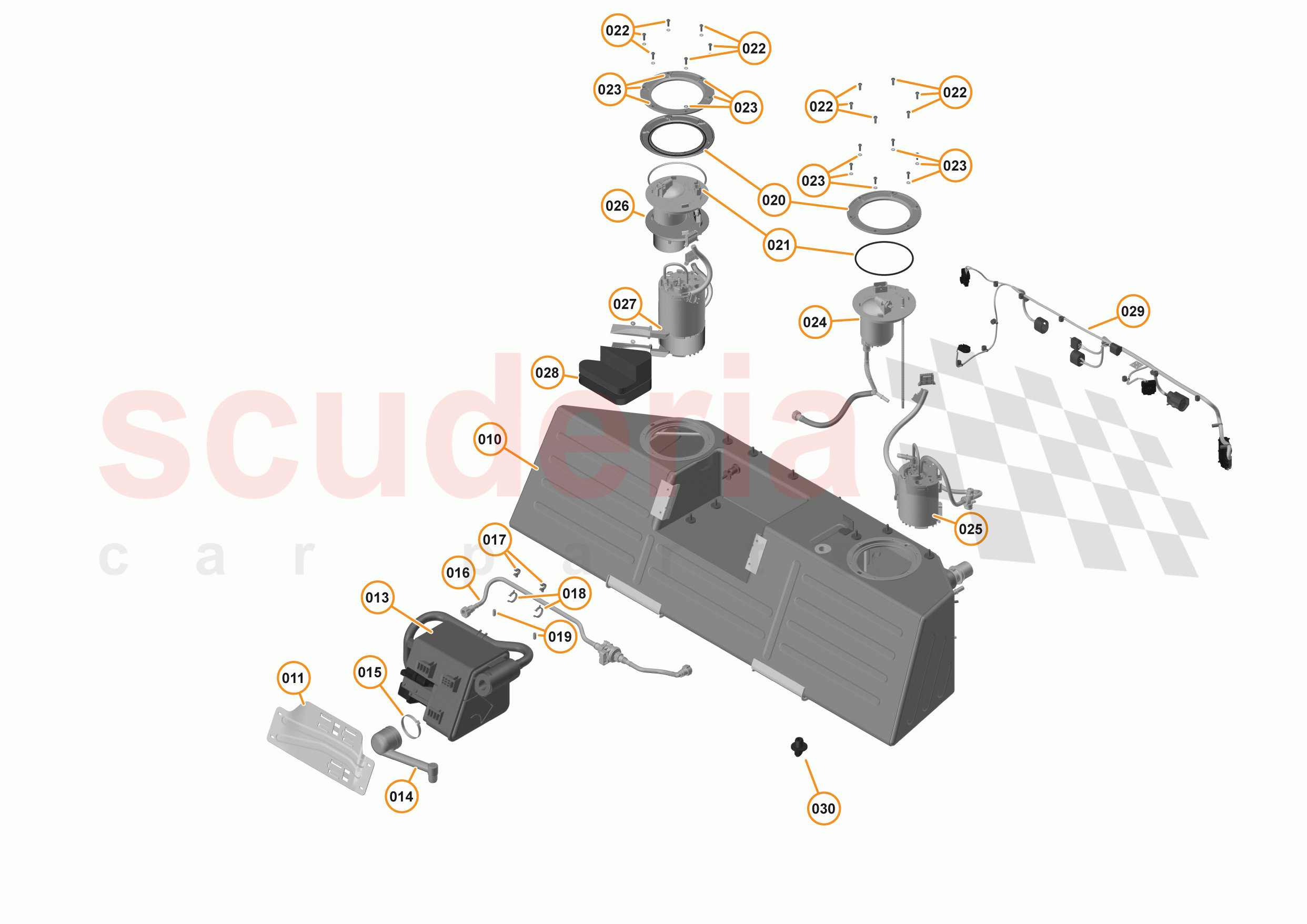

26 - FUEL TANK - 26.1 - FUEL TANK of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13K0122CP
Fuel Tank - Assy - W/ Pumps & Controller - China
Superseded parts: 13K0028CP; 		- 1 Enquire
010 13KA049CP
Fuel Tank - Assy - No Pumps & Controllers 		$2,852.04 1
011 11K0054CP
BRACKET - CHARCOAL CANISTER 		$143.54 1
013 11K0057CP
FILTER - CHARCOAL 		$612.50 1
014 11K0151CP
PIPE-MOULDED-CANNISTER-UPR 		$211.92 1
015 11K0164CP
OETIKER CLIP - 59.0-706R 		$19.24 1
016 11K0134CP
PIPE - PURGE - FUEL TANK 		$211.92 1
017 00RB074
Swivel Clip - 11-13mm - Female 		- 2 Enquire
018 00RG018
SWIVEL CLIP - 22-24MM -MALE 		- 2 Enquire
019 11H0301CP
Bung - Check Valve 		$4.59 2
020 13K0066CP
RETAINING RING - FUEL TANK - ACCESS PLATE 		$33.71 2
021 11K0250CP
SEAL - FUEL TANK - ACCESS PLATE RETAINING RING - FORRETAININGRING13K0066CP 		$43.32 2
022 00RA521
SCREW - BUTTON HEAD - HEX - M5X16-10.9-86 		- 12 Enquire
023 00RC097
WASHER - 6.4X12X1.6 		- 12 Enquire
024 11K0009CP
FILTER - FUEL 		$363.68 1
025 11K0027CP
ASSY-FUEL PUMP-LH 24 		$1,033.62 1
026 11K0047CP
ASSY-PLATE-ACCESS 24 		$115.57 1
027 11K0004CP
PUMP - FUEL - RH 		$1,033.62 1
028 13K0077CP
PAD - FUEL TANK - BULKHEAD - UPPER-RH 		$17.21 1
029 13M1258CP
HARNESS - FUEL CELL 		$818.38 1
030 11K0153CP
BREATHER DUCT - FUEL TANK - LOWER 		$52.62 1
