Electronic Control: Injection And Engine Timing Control

Maserati Quattroporte (2017+) Diesel

Find Your Part

Maserati Quattroporte (2017+) Diesel - ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670108936 DIESEL IGNITION ECU (HW) $1,050.43 To Order
Photo Part No Description Price (each) Stock
670005090 CONTROL UNIT FIXING BRACKET $9.67 To Order
Photo Part No Description Price (each) Stock
14059211 NUTM6 $1.53 IN STOCK
Photo Part No Description Price (each) Stock
46328709 SCREW $5.12 To Order
Photo Part No Description Price (each) Stock
46330361 ENGINE INJECTION WIRING HARNESS $859.81 To Order
Photo Part No Description Price (each) Stock
46328209 GLOW PLUG $156.18 To Order
Photo Part No Description Price (each) Stock
46328171 ANGULAR SPEED SENSOR $233.00 To Order
Photo Part No Description Price (each) Stock
46328202 TIMING SENSOR $115.54 To Order
Photo Part No Description Price (each) Stock
673001051 O.R. GASKET $3.06 To Order
Photo Part No Description Price (each) Stock
46328681 SCREW $2.73 To Order
Photo Part No Description Price (each) Stock
46328769 BRACKET $4.72 To Order
Photo Part No Description Price (each) Stock
46328683 SCREW $1.20 To Order
Photo Part No Description Price (each) Stock
46329513 CLAMP $3.19 To Order
Photo Part No Description Price (each) Stock
670005138 GLOW PLUGS CONTROL UNIT $178.02 To Order
Photo Part No Description Price (each) Stock
670039356 BRACKET $12.55 To Order
View All

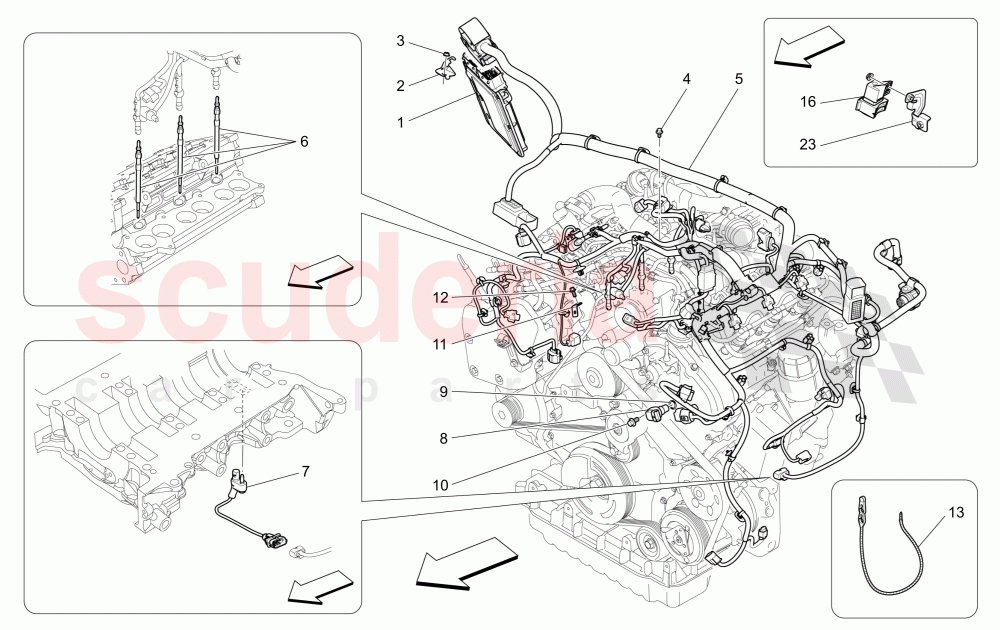

ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL of Maserati Maserati Quattroporte (2017+) Diesel Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670108936
DIESEL IGNITION ECU (HW) 		$1,050.43 1
2 670005090
CONTROL UNIT FIXING BRACKET 		$9.67 1
3 14059211
NUTM6
M6
IN STOCK 		$1.53 1
4 46328709
SCREW 		$5.12 1
5 46330361
ENGINE INJECTION WIRING HARNESS 		$859.81 1
6 46328209
GLOW PLUG 		$156.18 6
7 46328171
ANGULAR SPEED SENSOR 		$233.00 1
8 46328202
TIMING SENSOR 		$115.54 1
9 673001051
O.R. GASKET 		$3.06 1
10 46328681
SCREW 		$2.73 1
11 46328769
BRACKET 		$4.72 1
12 46328683
SCREW 		$1.20 1
13 46329513
CLAMP 		$3.19 1
16 670005138
GLOW PLUGS CONTROL UNIT 		$178.02 1
23 670039356
BRACKET 		$12.55 1
