Crank Mechanism

Maserati Quattroporte (2017+) Diesel

Find Your Part

Maserati Quattroporte (2017+) Diesel - CRANK MECHANISM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
46340637 CRANKSHAFT $2,040.16 To Order
Photo Part No Description Price (each) Stock
46328043 UPPER HALF-BEARING $30.97 To Order
46330019 UPPER HALF-BEARING $35.10 To Order
46328044 UPPER HALF-BEARING $39.67 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
46328046 LOWER HALF-BEARING $33.78 To Order
46330024 LOWER HALF-BEARING $29.88 To Order
46328047 LOWER HALF-BEARING $29.88 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
673000962 SHIM RINGS KIT $72.34 To Order
Photo Part No Description Price (each) Stock
46328176 SCREW $24.70 To Order
Photo Part No Description Price (each) Stock
46328175 TORSION DAMPER $418.28 To Order
Photo Part No Description Price (each) Stock
46328366 TAB $64.75 To Order
Photo Part No Description Price (each) Stock

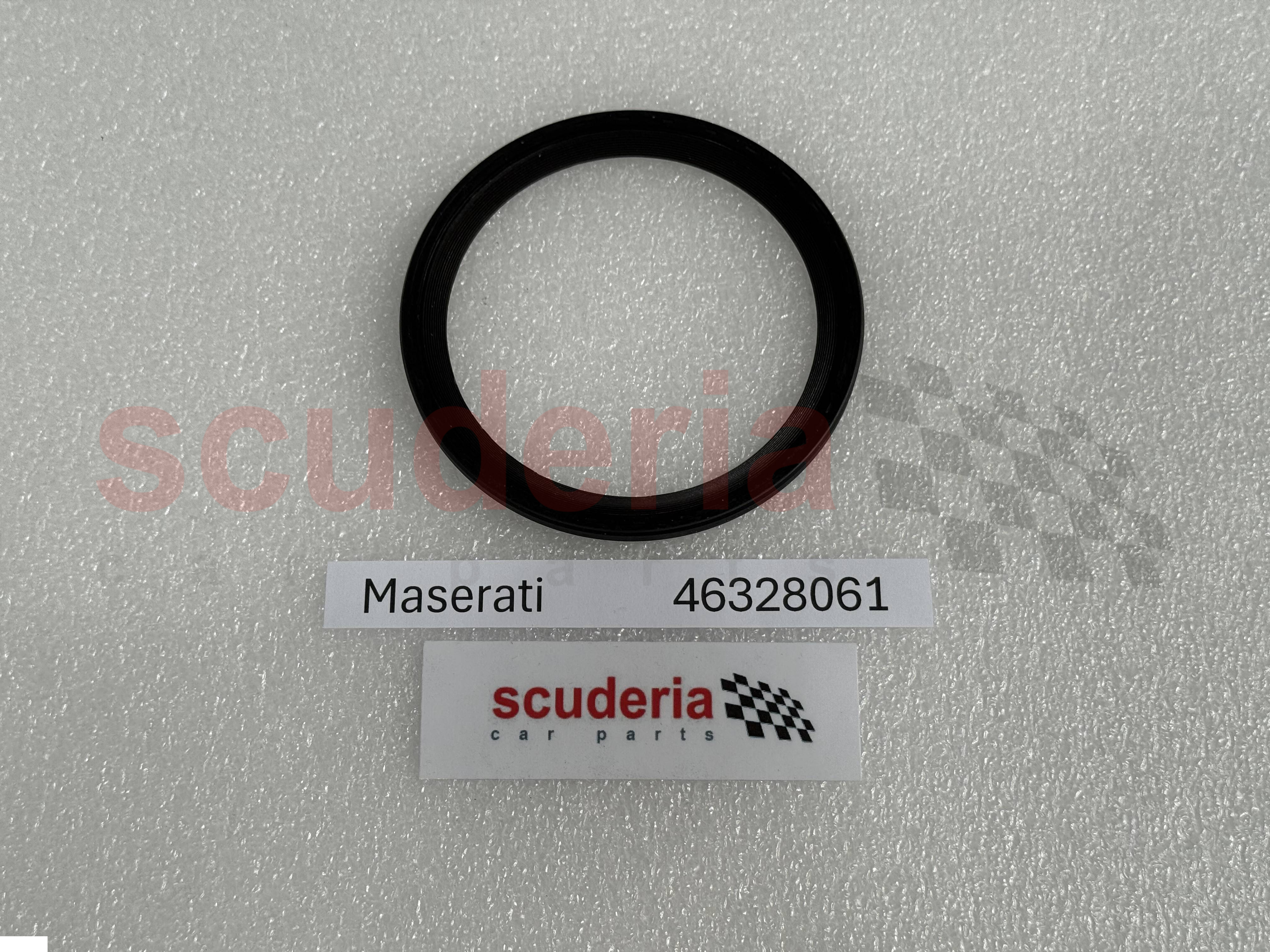

46328061 O-RING CRANKSHAFT $78.07 IN STOCK
Photo Part No Description Price (each) Stock
46328663 FLEXIBLE PIN $1.75 To Order
Photo Part No Description Price (each) Stock
46328322 PICK-UP WHEEL HUB $60.82 To Order
Photo Part No Description Price (each) Stock
46328323 SPACER ON CRANKSHAFT $356.03 IN STOCK
Photo Part No Description Price (each) Stock
673000954 RODS KIT $754.65 To Order
Photo Part No Description Price (each) Stock
46328059 ENGINE PISTON (CL.A) $280.60 To Order
46328067 ENGINE PISTON (CL.B) $285.56 To Order
46328069 ENGINE PISTON (CL.C) $280.60 To Order
Photo Part No Description Price (each) Stock
46328066 CIRCLIP $30.91 To Order
Photo Part No Description Price (each) Stock
46328055 BUSHING $10.92 To Order
Photo Part No Description Price (each) Stock
46328072 CONNECTING ROD HALF-BEARING $27.42 To Order
46330035 CONNECTING ROD HALF-BEARING $27.42 To Order
46328073 CONNECTING ROD HALF-BEARING $24.18 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
46328056 SCREW $5.57 To Order
Photo Part No Description Price (each) Stock
673000960 OIL VALVE KIT $149.71 To Order
View All

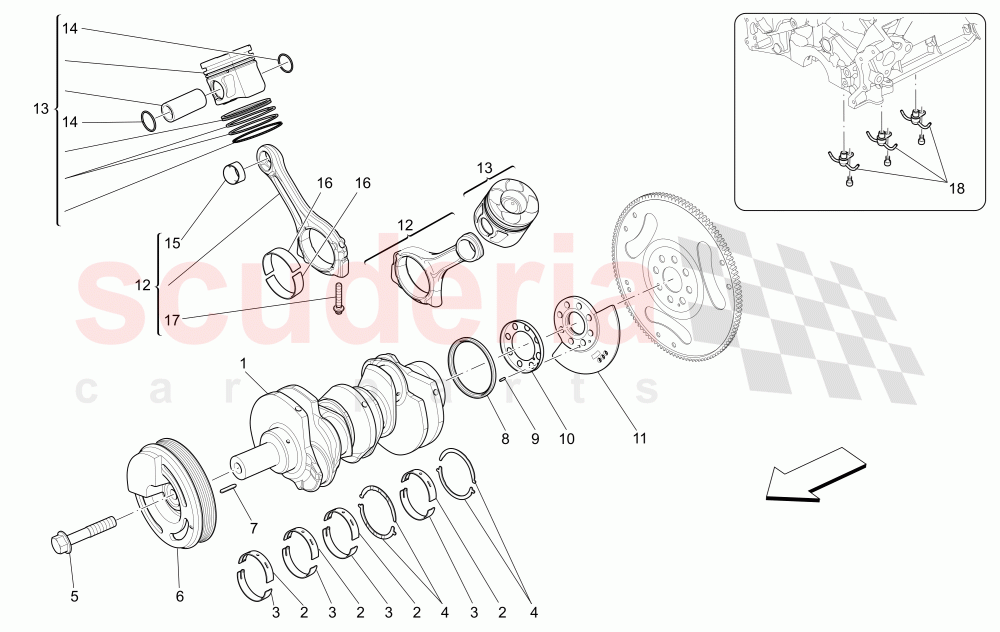

CRANK MECHANISM of Maserati Maserati Quattroporte (2017+) Diesel Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 46340637
CRANKSHAFT 		$2,040.16 1
2 46328043
UPPER HALF-BEARING
Blue 		$30.97 4
2 46330019
UPPER HALF-BEARING
Blue 		$35.10 4
2 46328044
UPPER HALF-BEARING
Yellow 		$39.67 4
2 46330020
UPPER HALF-BEARING
Yellow 		$39.67 4
2 46328042
UPPER HALF-BEARING
Red 		$39.60 4
2 46330018
UPPER HALF-BEARING
Red 		$39.67 4
2 46330021
UPPER HALF-BEARING
Green 		$39.67 4
2 46330188
UPPER HALF-BEARING
Pink 		$44.80 4
3 46328046
LOWER HALF-BEARING
Blue 		$33.78 4
3 46330024
LOWER HALF-BEARING
Blue 		$29.88 4
3 46328047
LOWER HALF-BEARING
Yellow 		$29.88 4
3 46330025
LOWER HALF-BEARING
Yellow 		$33.78 4
3 46328045
LOWER HALF-BEARING
Red 		$33.78 4
3 46330023
LOWER HALF-BEARING
Red 		$33.78 4
3 46330026
LOWER HALF-BEARING
Green 		$33.78 4
3 46330022
LOWER HALF-BEARING
Pink 		$33.78 4
4 673000962
SHIM RINGS KIT 		$72.34 1
5 46328176
SCREW 		$24.70 1
6 46328175
TORSION DAMPER 		$418.28 1
7 46328366
TAB 		$64.75 1
8 46328061
O-RING CRANKSHAFT
IN STOCK 		$78.07 1
9 46328663
FLEXIBLE PIN 		$1.75 1
10 46328322
PICK-UP WHEEL HUB 		$60.82 1
11 46328323
SPACER ON CRANKSHAFT
IN STOCK 		$356.03 1
12 673000954
RODS KIT 		$754.65 1
13 46328059
ENGINE PISTON (CL.A) 		$280.60 6
13 46328067
ENGINE PISTON (CL.B) 		$285.56 6
13 46328069
ENGINE PISTON (CL.C) 		$280.60 6
14 46328066
CIRCLIP 		$30.91 12
15 46328055
BUSHING 		$10.92 6
16 46328072
CONNECTING ROD HALF-BEARING
Blue 		$27.42 12
16 46330035
CONNECTING ROD HALF-BEARING
Blue 		$27.42 12
16 46328073
CONNECTING ROD HALF-BEARING
Yellow 		$24.18 12
16 46330036
CONNECTING ROD HALF-BEARING
Yellow 		$27.42 12
16 46328071
CONNECTING ROD HALF-BEARING
Red 		$27.42 12
16 46330034
CONNECTING ROD HALF-BEARING
Red 		$31.00 12
16 46330037
CONNECTING ROD HALF-BEARING
Green 		$27.42 12
16 46330033
CONNECTING ROD HALF-BEARING
Pink 		$31.00 12
17 46328056
SCREW 		$5.57 12
18 673000960
OIL VALVE KIT 		$149.71 1
