Doors: Mechanisms

Maserati MC20 Leggenda Automatic 3.0 BT V6 2WD 630HP

Illustration Number: 09291

Find Your Part

Maserati MC20 Leggenda Automatic 3.0 BT V6 2WD 630HP - DOORS: MECHANISMS (09291)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670177056 LH EXTERNAL DOOR HANDLE RETAINING BRACKET $126.92 To Order
670177054 RH EXTERNAL DOOR HANDLE RETAINING BRACKET $126.92 To Order
Photo Part No Description Price (each) Stock
670158120 LH DOOR LOCK $203.93 To Order
670158113 RH DOOR LOCK $209.37 To Order
670216681 LH DOOR LOCK $361.23 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
675000573 DOORS LOCK STRIKER $18.45 To Order
Photo Part No Description Price (each) Stock
670216114 LH FRONT POWER WINDOW $525.00 To Order
670216113 RH FRONT POWER WINDOW $525.00 To Order
Photo Part No Description Price (each) Stock
670156861 LH UPPER HINGE $1,460.10 To Order
670156863 RH UPPER HINGE $1,419.96 To Order
Photo Part No Description Price (each) Stock
675001336 SCREW $3.22 To Order
Photo Part No Description Price (each) Stock
670293468 GAS SPRING $231.05 To Order
Photo Part No Description Price (each) Stock
675001430 WASHER $1.72 To Order
Photo Part No Description Price (each) Stock
675001041 SCREW $33.08 To Order
Photo Part No Description Price (each) Stock
670176547 LH BRACKET $45.37 To Order
670173527 RH BRACKET $45.37 To Order
Photo Part No Description Price (each) Stock
670194972 LH DOOR EXTERNAL HANDLE Enquire To Order
670194971 RH DOOR EXTERNAL HANDLE Enquire To Order
Photo Part No Description Price (each) Stock
670177384 LH OPENING/CLOSENING DEVICE $162.72 To Order
Photo Part No Description Price (each) Stock
670230991 LH HANDLE DOOR INSIDE RELEASE Enquire To Order
670230990 RH HANDLE DOOR INSIDE RELEASE Enquire To Order
Photo Part No Description Price (each) Stock
670215414 PIN $50.75 To Order
Photo Part No Description Price (each) Stock
675001442 WASHER $5.16 To Order
Photo Part No Description Price (each) Stock
670006484 SCREW $1.77 To Order
Photo Part No Description Price (each) Stock
675001355 SCREW $2.29 To Order
View All

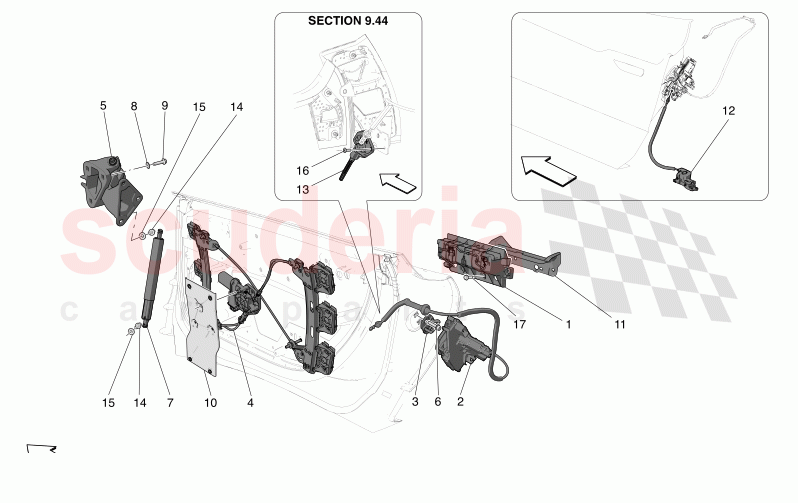

DOORS: MECHANISMS of Maserati Maserati MC20 Leggenda Automatic 3.0 BT V6 2WD 630HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670177056
LH EXTERNAL DOOR HANDLE RETAINING BRACKET 		$126.92 1
1 670177054
RH EXTERNAL DOOR HANDLE RETAINING BRACKET 		$126.92 1
2 670158120
LH DOOR LOCK
EU CN US CD JP ME KO; 		$203.93 1
2 670158113
RH DOOR LOCK
EU CN US CD JP ME KO; 		$209.37 1
2 670216681
LH DOOR LOCK
AU UK JRH IN SA; 		$361.23 1
2 670216679
RH DOOR LOCK
AU UK JRH IN SA; 		$215.87 1
3 675000573
DOORS LOCK STRIKER 		$18.45 2
4 670216114
LH FRONT POWER WINDOW 		$525.00 1
4 670216113
RH FRONT POWER WINDOW 		$525.00 1
5 670156861
LH UPPER HINGE 		$1,460.10 1
5 670156863
RH UPPER HINGE 		$1,419.96 1
6 675001336
SCREW 		$3.22 4
7 670293468
GAS SPRING
FOR THE FIRST REPLACEMENT ONLY, CHANGE THE SPRING PN 670293468 ON BOTH SIDES FOR ASSEMBLY <7000810 AND FOR ASSEMBLY 7000915; 		$231.05 2
8 675001430
WASHER 		$1.72 6
9 675001041
SCREW 		$33.08 6
10 670176547
LH BRACKET 		$45.37 1
10 670173527
RH BRACKET 		$45.37 1
11 670194972
LH DOOR EXTERNAL HANDLE 		- 1 Enquire
11 670194971
RH DOOR EXTERNAL HANDLE 		- 1 Enquire
12 670177384
LH OPENING/CLOSENING DEVICE 		$162.72 1
13 670230991
LH HANDLE DOOR INSIDE RELEASE 		- 1 Enquire
13 670230990
RH HANDLE DOOR INSIDE RELEASE 		- 1 Enquire
14 670215414
PIN 		$50.75 4
15 675001442
WASHER 		$5.16 4
16 670006484
SCREW 		$1.77 4
17 675001355
SCREW 		$2.29 6
