Name: UNDERBODY AND UNDERFLOOR GUARDS
Rating: 5.0 (1 reviews)

View All

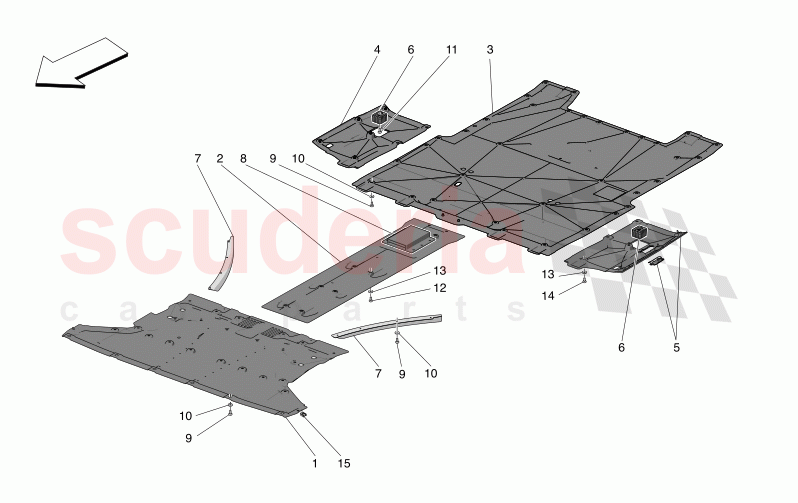

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670158288	FRONT UNDERBODY GUARD	$443.73	To Order

Photo	Part No	Description	Price (each)	Stock
	670215318	CENTRAL UNDERFLOOR GUARD	$197.00	To Order

Photo	Part No	Description	Price (each)	Stock
	670302469	CENTRAL AERODYNAMIC UNDERFLOOR CPL.	$2,691.24	To Order

Photo	Part No	Description	Price (each)	Stock
	670158283	RH CENTER AERODYNAMIC UNDERFLOOR	$87.17	To Order

Photo	Part No	Description	Price (each)	Stock
	670158284	LH CENTER AERODYNAMIC UNDERFLOOR	$102.32	To Order

Photo	Part No	Description	Price (each)	Stock
	670158810	REAR JACKING PAD	$12.54	To Order

Photo	Part No	Description	Price (each)	Stock
	670304672	AIR DAMS	$224.81	To Order

Photo	Part No	Description	Price (each)	Stock
	670308847	SCREW	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	675001364	WASHER	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	675001045	SCREW	$1.72	To Order

Photo	Part No	Description	Price (each)	Stock
	675001383	SCREW	$3.66	To Order

Photo	Part No	Description	Price (each)	Stock
	675001257	WASHER	$1.74	To Order

Photo	Part No	Description	Price (each)	Stock
	675001252	SCREW	$2.59	To Order

Photo	Part No	Description	Price (each)	Stock
	670303713	CLIP	$2.82	To Order

View All

Underbody And Underfloor Guards

Maserati MC20 Leggenda Automatic 3.0 BT V6 2WD 630HP

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	670158288	FRONT UNDERBODY GUARD	670158288 FRONT UNDERBODY GUARD	$443.73	1
2	670215318	CENTRAL UNDERFLOOR GUARD	670215318 CENTRAL UNDERFLOOR GUARD	$197.00	1
3	670302469	CENTRAL AERODYNAMIC UNDERFLOOR CPL.	670302469 CENTRAL AERODYNAMIC UNDERFLOOR CPL. Bespoke Assembly Number 7002375 - 99999999; Not available with: CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE;	$2,691.24	1
4	670158283	RH CENTER AERODYNAMIC UNDERFLOOR	670158283 RH CENTER AERODYNAMIC UNDERFLOOR	$87.17	1
5	670158284	LH CENTER AERODYNAMIC UNDERFLOOR	670158284 LH CENTER AERODYNAMIC UNDERFLOOR	$102.32	1
6	670158810	REAR JACKING PAD	670158810 REAR JACKING PAD	$12.54	2
7	670304672	AIR DAMS	670304672 AIR DAMS	$224.81	1
9	670308847	SCREW	670308847 SCREW	$2.39	74
10	675001364	WASHER	675001364 WASHER	$1.63	74
11	675001045	SCREW	675001045 SCREW	$1.72	2
12	675001383	SCREW	675001383 SCREW	$3.66	12
13	675001257	WASHER	675001257 WASHER	$1.74	22
14	675001252	SCREW	675001252 SCREW	$2.59	10
15	670303713	CLIP	670303713 CLIP	$2.82	2
