Rear Suspension

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP

Illustration Number: 06201

Find Your Part

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP - REAR SUSPENSION (06201)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670108077 LH REAR HUB HOLDER ASSEMBLY $222.09 ARRIVING SOON
670108079 RH REAR HUB HOLDER ASSEMBLY $627.56 To Order
670152652 LH REAR HUB HOLDER ASSEMBLY $1,210.19 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
670308370 REAR SUSPENSION CAMBER ROD $85.26 To Order
670308370 REAR SUSPENSION CAMBER ROD $85.26 To Order
Photo Part No Description Price (each) Stock
670035563 SCREW $10.18 IN STOCK
Photo Part No Description Price (each) Stock
675000584 NUT $6.27 IN STOCK
Photo Part No Description Price (each) Stock
670035573 NUT $3.92 To Order
Photo Part No Description Price (each) Stock
670035572 SPECIAL SCREW $6.10 IN STOCK
670035584 SCREW $4.80 To Order
Photo Part No Description Price (each) Stock
670106334 RH REAR SWINGING ARM $288.31 To Order
Photo Part No Description Price (each) Stock
670106331 LH REAR SUSPENSION ARM $288.31 To Order
Photo Part No Description Price (each) Stock
670035562 SCREW $6.90 To Order
Photo Part No Description Price (each) Stock
675000127 NUT M12 $2.37 IN STOCK
Photo Part No Description Price (each) Stock
670035570 NUT $3.25 IN STOCK
Photo Part No Description Price (each) Stock
670002806 WASHER $6.51 IN STOCK
Photo Part No Description Price (each) Stock
670035569 SCREW $7.03 IN STOCK
Photo Part No Description Price (each) Stock
670038850 REAR STABILISER BAR $617.37 To Order
Photo Part No Description Price (each) Stock
675000140 SCREWM10X95 $2.60 To Order
Photo Part No Description Price (each) Stock
670038692 LH BALL TIE ROD $53.09 ARRIVING SOON
670038693 RH BALL TIE ROD $52.85 To Order
Photo Part No Description Price (each) Stock
670002916 NUT M10 $2.63 IN STOCK
Photo Part No Description Price (each) Stock
670035582 SCREW $4.16 IN STOCK
View All

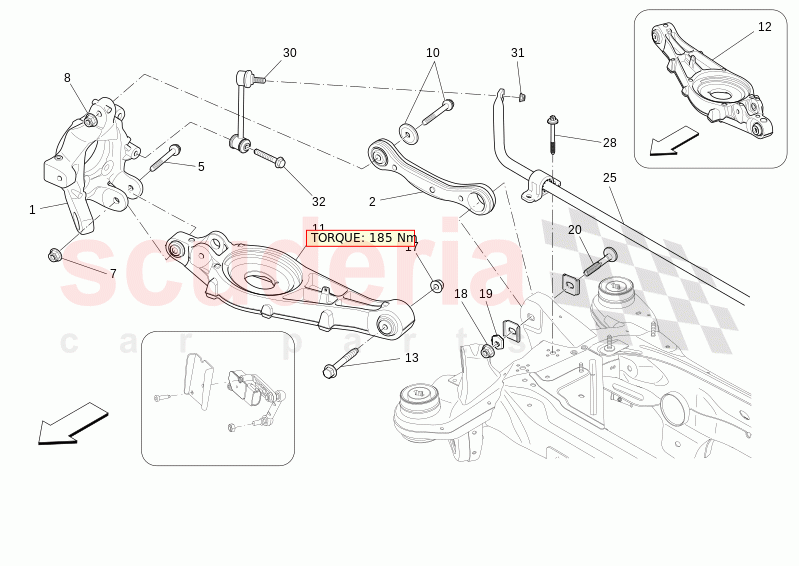

REAR SUSPENSION of Maserati Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670108077
LH REAR HUB HOLDER ASSEMBLY
Not available with: PERFORMANCE BRAKE SYSTEM - FRONT 380 [mm], REAR 345 [mm];
ARRIVING SOON 		$222.09 1
1 670108079
RH REAR HUB HOLDER ASSEMBLY
Not available with: PERFORMANCE BRAKE SYSTEM - FRONT 380 [mm], REAR 345 [mm]; 		$627.56 1
1 670152652
LH REAR HUB HOLDER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6072512 - 99999999; Available with: PERFORMANCE BRAKE SYSTEM - FRONT 380 [mm], REAR 345 [mm] Not available with: STANDARD BRAKE SYSTEM - FRONT 345 [mm], REAR 330 [mm], MEDIUM DUAL CAST BRAKE SYSTEM - FRON 		$1,210.19 1
1 670152673
RH REAR HUB HOLDER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6072512 - 99999999; Available with: PERFORMANCE BRAKE SYSTEM - FRONT 380 [mm], REAR 345 [mm] Not available with: STANDARD BRAKE SYSTEM - FRONT 345 [mm], REAR 330 [mm], MEDIUM DUAL CAST BRAKE SYSTEM - FRON 		$1,210.19 1
2 670308370
REAR SUSPENSION CAMBER ROD 		$85.26 2
2 670308370
REAR SUSPENSION CAMBER ROD 		$85.26 2
5 670035563
SCREW
IN STOCK 		$10.18 2
7 675000584
NUT
IN STOCK 		$6.27 2
8 670035573
NUT 		$3.92 2
10 670035572
SPECIAL SCREW
Not available with: PERFORMANCE BRAKE SYSTEM - FRONT 380 [mm], REAR 345 [mm];
IN STOCK 		$6.10 2
10 670035584
SCREW
Available with: PERFORMANCE BRAKE SYSTEM - FRONT 380 [mm], REAR 345 [mm] ; 		$4.80 2
11 670106334
RH REAR SWINGING ARM 		$288.31 1
12 670106331
LH REAR SUSPENSION ARM 		$288.31 1
13 670035562
SCREW 		$6.90 1
17 675000127
NUT M12
IN STOCK 		$2.37 2
18 670035570
NUT
IN STOCK 		$3.25 2
19 670002806
WASHER
IN STOCK 		$6.51 2
20 670035569
SCREW
IN STOCK 		$7.03 2
25 670038850
REAR STABILISER BAR 		$617.37 1
28 675000140
SCREWM10X95 		$2.60 4
30 670038692
LH BALL TIE ROD
ARRIVING SOON 		$53.09 1
30 670038693
RH BALL TIE ROD 		$52.85 1
31 670002916
NUT M10
IN STOCK 		$2.63 2
32 670035582
SCREW
IN STOCK 		$4.16 2
