Front Suspension

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP

Illustration Number: 06102

Find Your Part

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP - FRONT SUSPENSION (06102)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock

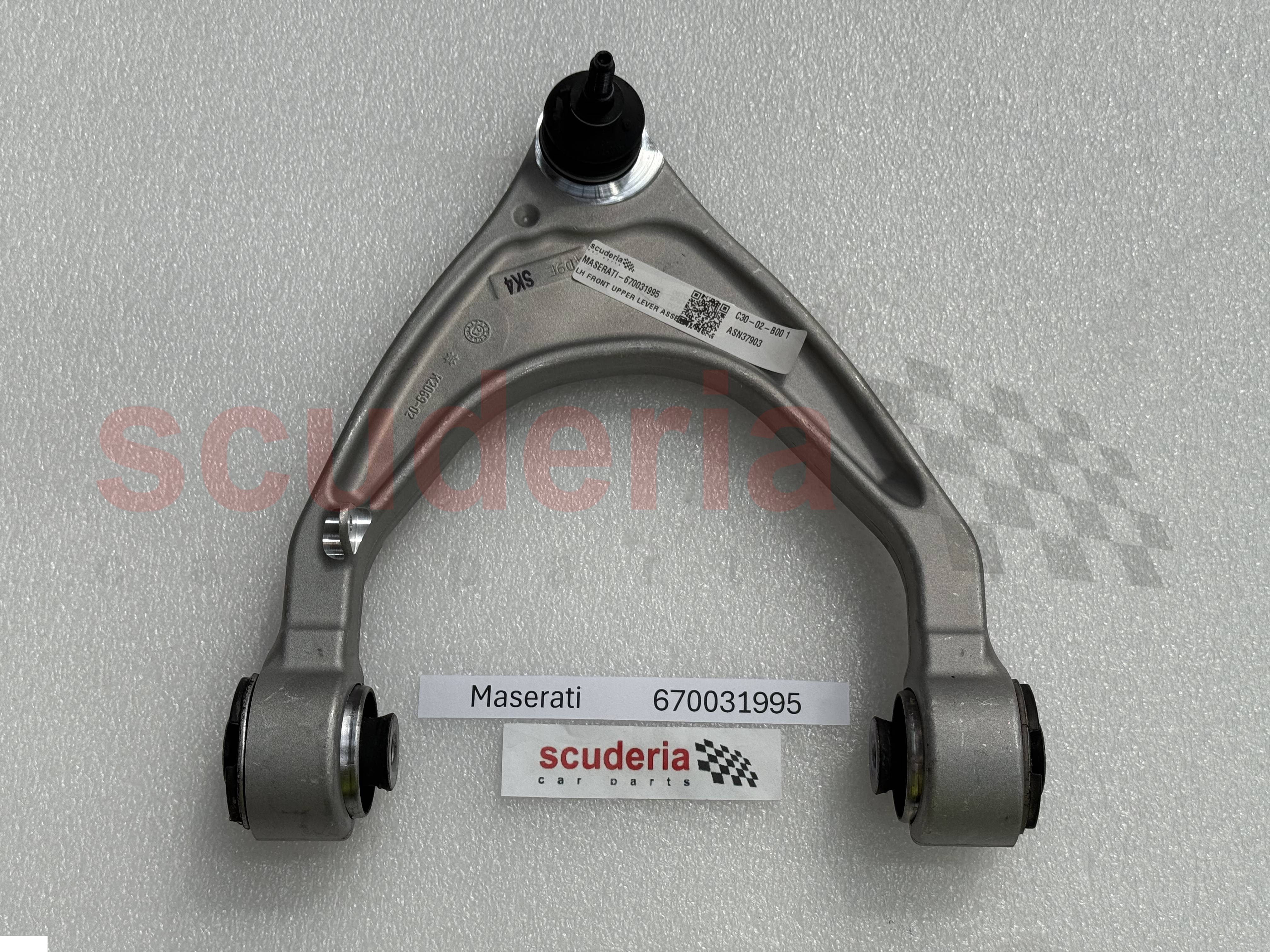

670031995 LH FRONT SUSPENSION UPPER CONTROL ARM $554.68 IN STOCK

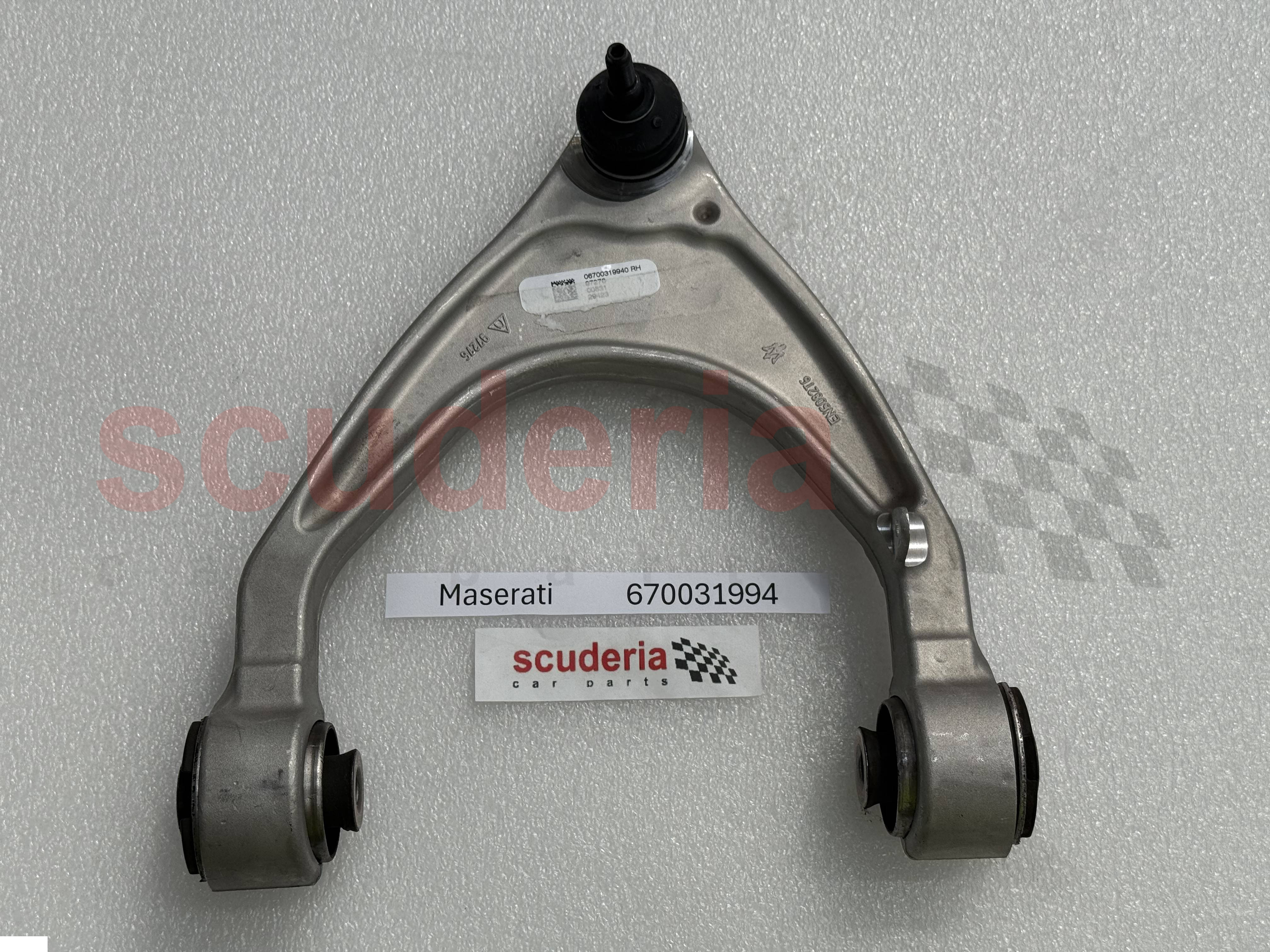

670031994 RH FRONT SUSPENSION UPPER CONTROL ARM $502.89 IN STOCK
Photo Part No Description Price (each) Stock
670213730 LH FRONT LOWER LEVER ASSEMBLY $630.88 IN STOCK
670213730 LH FRONT LOWER LEVER ASSEMBLY $630.88 IN STOCK
670213729 RH FRONT LOWER LEVER ASSEMBLY $633.94 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
670106873 LH FRONT PILLAR ASSEMBLY $704.29 To Order
670106872 RH FRONT PILLAR ASSEMBLY $704.29 To Order
Photo Part No Description Price (each) Stock
670032003 BALL TIE ROD $63.37 IN STOCK
Photo Part No Description Price (each) Stock
670103991 FRONT STABILIZER BAR $351.16 To Order
Photo Part No Description Price (each) Stock
670103997 SCREW $4.37 To Order
Photo Part No Description Price (each) Stock
675000586 NUT $1.54 To Order
Photo Part No Description Price (each) Stock
675000082 NUT M14 $4.69 IN STOCK
Photo Part No Description Price (each) Stock
670002916 NUT M10 $2.62 IN STOCK
Photo Part No Description Price (each) Stock
670035427 SCREW $10.71 IN STOCK
Photo Part No Description Price (each) Stock
675000585 NUT $3.18 IN STOCK
Photo Part No Description Price (each) Stock
670035428 WASHER $3.80 To Order
Photo Part No Description Price (each) Stock
670007895 SCREW M12 $8.08 IN STOCK
Photo Part No Description Price (each) Stock
670104593 REINFORCEMENT BRACKET $29.61 To Order
View All

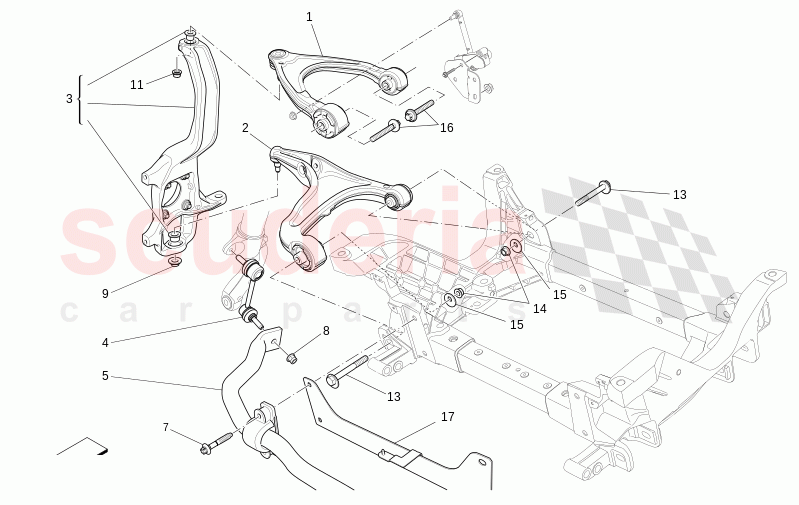

FRONT SUSPENSION of Maserati Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670031995
LH FRONT SUSPENSION UPPER CONTROL ARM
IN STOCK 		$554.68 1
1 670031994
RH FRONT SUSPENSION UPPER CONTROL ARM
IN STOCK 		$502.89 1
2 670213730
LH FRONT LOWER LEVER ASSEMBLY
IN STOCK 		$630.88 1
2 670213730
LH FRONT LOWER LEVER ASSEMBLY
FOR CARS WITH ASSEMBLY <6091895, IN CASE OF FIRST REPLACEMENT, ALSO ORDER THE RIGHT; Bespoke Assembly Number 6079467 - 6091894;
IN STOCK 		$630.88 1
2 670213729
RH FRONT LOWER LEVER ASSEMBLY
IN STOCK 		$633.94 1
2 670213729
RH FRONT LOWER LEVER ASSEMBLY
FOR CARS WITH ASSEMBLY <6091895, IN CASE OF FIRST REPLACEMENT, ALSO ORDER THE LEFT; Bespoke Assembly Number 6039714 - 6091894;
IN STOCK 		$633.94 1
3 670106873
LH FRONT PILLAR ASSEMBLY 		$704.29 1
3 670106872
RH FRONT PILLAR ASSEMBLY 		$704.29 1
4 670032003
BALL TIE ROD
IN STOCK 		$63.37 2
5 670103991
FRONT STABILIZER BAR 		$351.16 1
7 670103997
SCREW 		$4.37 4
8 675000586
NUT 		$1.54 2
9 675000082
NUT M14
IN STOCK 		$4.69 2
11 670002916
NUT M10
IN STOCK 		$2.62 2
13 670035427
SCREW
IN STOCK 		$10.71 4
14 675000585
NUT
IN STOCK 		$3.18 4
15 670035428
WASHER 		$3.80 4
16 670007895
SCREW M12
Bespoke Assembly Number 6035538 - 99999999;
IN STOCK 		$8.08 4
17 670104593
REINFORCEMENT BRACKET
Bespoke Assembly Number 6035538 - 99999999; 		$29.61 1
