Lubrication System: Pump And Filter

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP

Illustration Number: 01613

Find Your Part

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP - LUBRICATION SYSTEM: PUMP AND FILTER (01613)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
853065 OIL PUMP $556.19 IN STOCK
853065 OIL PUMP $556.19 IN STOCK
853065 OIL PUMP $556.19 IN STOCK
Photo Part No Description Price (each) Stock
282397 SCREWM6X25 $2.55 To Order
Photo Part No Description Price (each) Stock

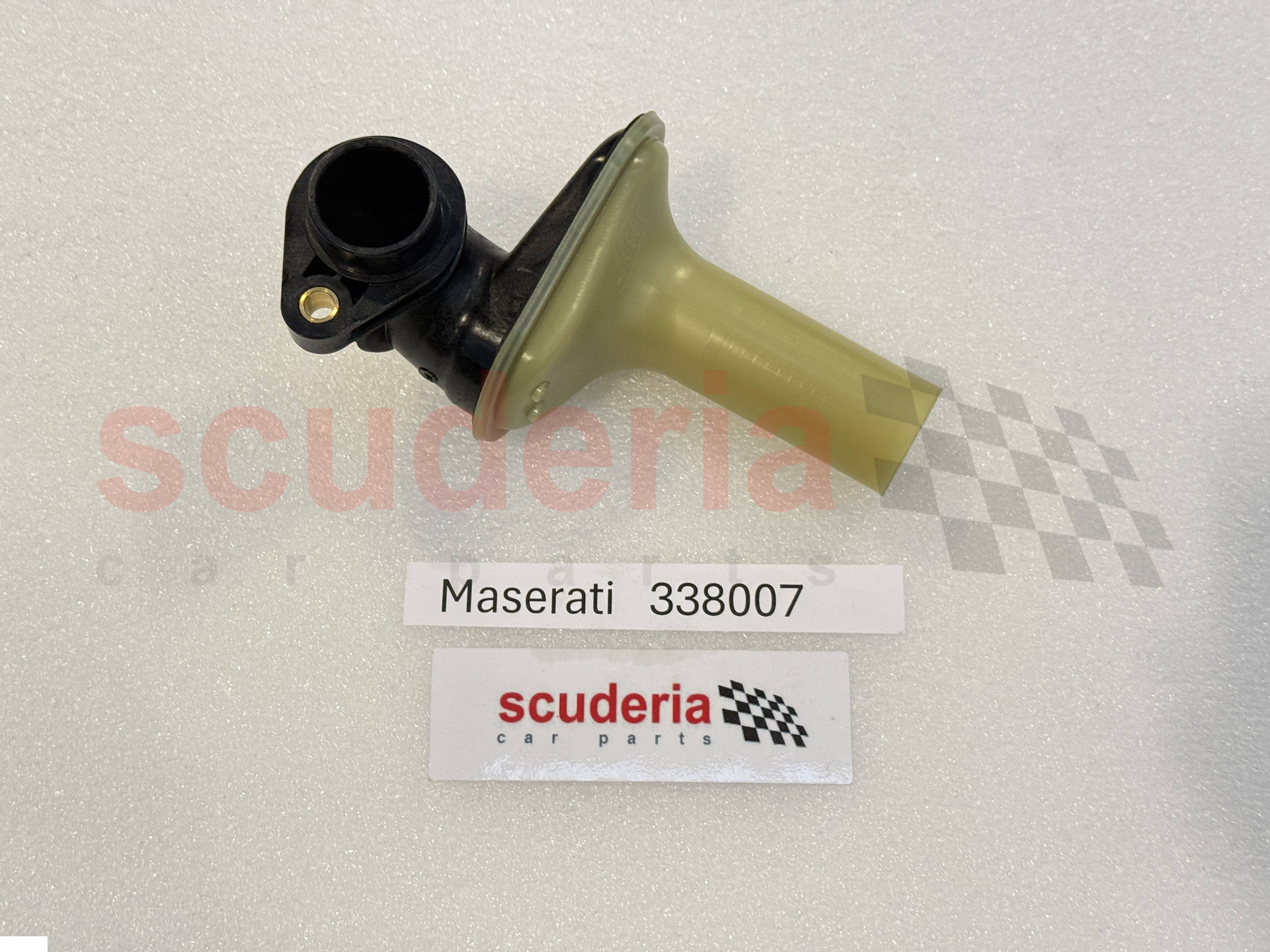

338007 OIL SUCTION FAN $34.32 IN STOCK
338007 OIL SUCTION FAN $34.32 IN STOCK
Photo Part No Description Price (each) Stock
139934 O-Ring $3.29 IN STOCK
Photo Part No Description Price (each) Stock
282397 SCREWM6X25 $2.55 To Order
Photo Part No Description Price (each) Stock
275702 OIL PUMP GUARD $11.25 To Order
Photo Part No Description Price (each) Stock
284021 SCREW M8 X 16 $22.32 IN STOCK
Photo Part No Description Price (each) Stock
282391 SCREWM6X12 $4.09 To Order
Photo Part No Description Price (each) Stock
287292 OIL NONRETURN VALVE $965.62 To Order
Photo Part No Description Price (each) Stock
289393 GASKET OIL PUMP $38.03 To Order
Photo Part No Description Price (each) Stock
328308 OIL PUMP CHAIN $30.05 To Order
328308 OIL PUMP CHAIN $30.05 To Order
Photo Part No Description Price (each) Stock
298937 CPL OIL FILTER SUPPORT $118.53 To Order
Photo Part No Description Price (each) Stock
311401 OIL FILTER $50.53 IN STOCK
Photo Part No Description Price (each) Stock
231622 SCREWM6X35 $1.16 To Order
Photo Part No Description Price (each) Stock
276592 OIL PUMP CONTROL TOOTHED WHEEL $23.11 To Order
Photo Part No Description Price (each) Stock
276594 OIL PUMP CHAIN TIGHTENER $17.46 To Order
Photo Part No Description Price (each) Stock
300526 O.R. GASKETD2.5X11 $3.20 IN STOCK
Photo Part No Description Price (each) Stock
301565 O.R. GASKETD2.62X22 $1.27 IN STOCK
Photo Part No Description Price (each) Stock
673002892 O.R. GASKETD3.5x62 $22.06 IN STOCK
Photo Part No Description Price (each) Stock
763703 OIL FILTER SUPPORT AND CARTRIDGE $424.05 To Order
Photo Part No Description Price (each) Stock
304893 CLIP $2.79 To Order
View All
LUBRICATION SYSTEM: PUMP AND FILTER of Maserati Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 853065
OIL PUMP
IN STOCK 		$556.19 1
1 853065
OIL PUMP
IN STOCK 		$556.19 1
1 853065
OIL PUMP
IN STOCK 		$556.19 1
2 282397
SCREWM6X25 		$2.55 4
3 338007
OIL SUCTION FAN
Bespoke Engine Number 0 - 365107;
IN STOCK 		$34.32 1
3 338007
OIL SUCTION FAN
IN STOCK 		$34.32 1
4 139934
O-Ring
IN STOCK 		$3.29 1
5 282397
SCREWM6X25 		$2.55 1
6 275702
OIL PUMP GUARD
NOT MOUNTABLE WITH THE PN 829830; Bespoke Engine Number 0 - 307399; 		$11.25 1
7 284021
SCREW M8 X 16
IN STOCK 		$22.32 1
8 282391
SCREWM6X12
Bespoke Engine Number 0 - 307399; 		$4.09 2
10 287292
OIL NONRETURN VALVE 		$965.62 1
11 289393
GASKET OIL PUMP 		$38.03 1
12 328308
OIL PUMP CHAIN
Bespoke Engine Number 0 - 318012; 		$30.05 1
12 328308
OIL PUMP CHAIN 		$30.05 1
13 298937
CPL OIL FILTER SUPPORT 		$118.53 1
14 311401
OIL FILTER
INCLUDES PLUG REFERENCE 15;
IN STOCK 		$50.53 1
16 231622
SCREWM6X35 		$1.16 4
17 276592
OIL PUMP CONTROL TOOTHED WHEEL 		$23.11 1
18 276594
OIL PUMP CHAIN TIGHTENER 		$17.46 1
19 300526
O.R. GASKETD2.5X11
IN STOCK 		$3.20 1
20 301565
O.R. GASKETD2.62X22
IN STOCK 		$1.27 1
21 673002892
O.R. GASKETD3.5x62
IN STOCK 		$22.06 1
22 763703
OIL FILTER SUPPORT AND CARTRIDGE
Bespoke Assembly Number 6079467 - 99999999; 		$424.05 1
23 304893
CLIP 		$2.79 1
