Crankcase

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP

Illustration Number: 01003

Find Your Part

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP - CRANKCASE (01003)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
767001 ENGINE BLOCK $6,138.30 To Order
Photo Part No Description Price (each) Stock
275361 BASE SHIELD $80.58 To Order
Photo Part No Description Price (each) Stock
670032042 HIGH LINK ROD $95.20 To Order
Photo Part No Description Price (each) Stock
670007895 SCREW M12 $8.21 IN STOCK
Photo Part No Description Price (each) Stock
670003629 LH ENGINE MOUNT BUSHING $352.45 To Order
670003628 RH ENGINE MOUNT BUSHING $352.45 IN STOCK
Photo Part No Description Price (each) Stock
670038507 SCREW $5.97 To Order
Photo Part No Description Price (each) Stock
670103984 SCREW $8.44 To Order
Photo Part No Description Price (each) Stock
675000096 WASHERD.12.2-28X3 $1.21 To Order
Photo Part No Description Price (each) Stock
670035412 SCREW $5.24 To Order
Photo Part No Description Price (each) Stock
675000247 WASHERD.10.2-25X3 $1.74 To Order
Photo Part No Description Price (each) Stock
10337710 STUD $9.89 To Order
Photo Part No Description Price (each) Stock
670007404 CABLE FOR ENGINE-FRAME EARTH $31.26 To Order
Photo Part No Description Price (each) Stock
300476 CENTERING DOWEL $4.71 To Order
Photo Part No Description Price (each) Stock
279025 CENTERING DOWEL $98.12 To Order
Photo Part No Description Price (each) Stock
282607 SCREWM8X40 $5.97 To Order
Photo Part No Description Price (each) Stock
313719 THREADED PLUG WITH COPPER WASHER $135.00 To Order
Photo Part No Description Price (each) Stock
306027 STUD $26.92 IN STOCK
Photo Part No Description Price (each) Stock
185360 CENTERING DOWEL $6.82 IN STOCK
Photo Part No Description Price (each) Stock
303590 STUD $6.87 To Order
Photo Part No Description Price (each) Stock
303589 STUD $13.17 To Order
Photo Part No Description Price (each) Stock
10337710 STUD $9.89 To Order
Photo Part No Description Price (each) Stock
335495 REAR PLATE $366.30 IN STOCK
335495 REAR PLATE $366.30 IN STOCK
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 $2.62 IN STOCK
Photo Part No Description Price (each) Stock
675000383 SCREWM8X16 $1.27 To Order
Photo Part No Description Price (each) Stock
334627 CRANKSHAFT REAR GASKET $80.44 IN STOCK
Photo Part No Description Price (each) Stock
326558 CRANKSHAFT REAR PLATE SEAL $10.85 To Order
Photo Part No Description Price (each) Stock
675000505 NUTM8 $3.56 To Order
Photo Part No Description Price (each) Stock
670035588 SCREW $9.89 To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.79 To Order
Photo Part No Description Price (each) Stock
673015478 LIGHT ENGINE (LONG BLOCK VERSION) $19,001.27 To Order
673015467 LIGHT ENGINE (LONG BLOCK VERSION) $12,703.16 To Order
View All

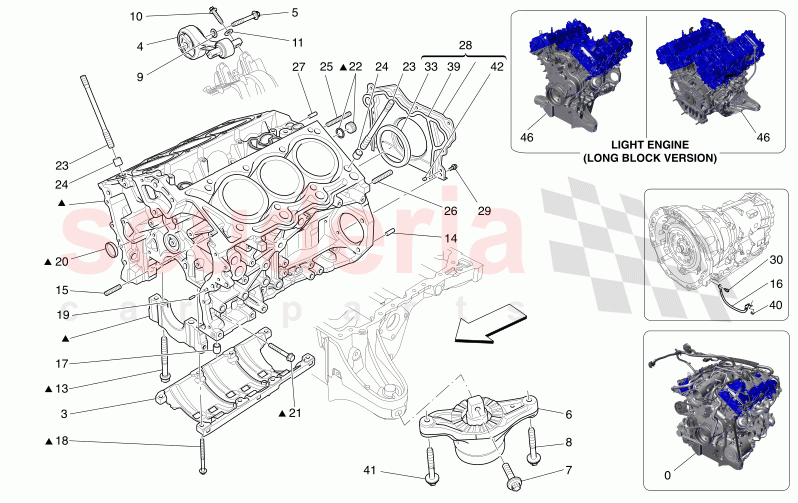

CRANKCASE of Maserati Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 670155122
ENGINE ASSEMBLY
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION; Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final specific Korea / USA Not available with: EU6D Final, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION; 		$32,088.23 1
- 670105051
ENGINE ASSEMBLY
Bespoke Assembly Number 6087717 - 99999999; Available with: EURO 6.4 Not available with: EU6D Final, EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION; 		$22,074.17 1
1 767001
ENGINE BLOCK 		$6,138.30 1
3 275361
BASE SHIELD 		$80.58 1
4 670032042
HIGH LINK ROD 		$95.20 1
5 670007895
SCREW M12
IN STOCK 		$8.21 1
6 670003629
LH ENGINE MOUNT BUSHING 		$352.45 (5% off) 1
6 670003628
RH ENGINE MOUNT BUSHING
IN STOCK 		$352.45 (5% off) 1
7 670038507
SCREW 		$5.97 (2.6% off) 2
8 670103984
SCREW
Bespoke Assembly Number 6053787 - 99999999; 		$8.44 1
9 675000096
WASHERD.12.2-28X3 		$1.21 1
10 670035412
SCREW 		$5.24 2
11 675000247
WASHERD.10.2-25X3 		$1.74 2
14 10337710
STUD 		$9.89 2
16 670007404
CABLE FOR ENGINE-FRAME EARTH 		$31.26 1
17 300476
CENTERING DOWEL 		$4.71 2
19 279025
CENTERING DOWEL 		$98.12 2
21 282607
SCREWM8X40 		$5.97 1
22 313719
THREADED PLUG WITH COPPER WASHER 		$135.00 1
23 306027
STUD
IN STOCK 		$26.92 16
24 185360
CENTERING DOWEL
IN STOCK 		$6.82 4
25 303590
STUD 		$6.87 1
26 303589
STUD 		$13.17 5
27 10337710
STUD 		$9.89 2
28 335495
REAR PLATE
Bespoke Engine Number 0 - 325650;
IN STOCK 		$366.30 1
28 335495
REAR PLATE
IN STOCK 		$366.30 1
29 231617
SCREW M6 X 18
IN STOCK 		$2.62 8
30 675000383
SCREWM8X16 		$1.27 (18.1% off) 1
33 334627
CRANKSHAFT REAR GASKET
IN STOCK 		$80.44 1
39 326558
CRANKSHAFT REAR PLATE SEAL 		$10.85 1
40 675000505
NUTM8 		$3.56 1
41 670035588
SCREW 		$9.89 2
42 102725
CENTERING DOWEL 		$1.79 2
46 673015478
LIGHT ENGINE (LONG BLOCK VERSION)
Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final specific Korea / USA Not available with: EU6D Final, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION; 		$19,001.27 1
46 673015467
LIGHT ENGINE (LONG BLOCK VERSION)
Bespoke Assembly Number 6087717 - 99999999; Available with: EURO 6.4 Not available with: EU6D Final, EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION; 		$12,703.16 1
