Lubrication System: Circuit And Collection

Maserati Levante (2017+) S

Find Your Part

Maserati Levante (2017+) S - LUBRICATION SYSTEM: CIRCUIT AND COLLECTION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
849084 OIL SUMP ASSEMBLY $1,329.12 To Order
Photo Part No Description Price (each) Stock
104280 MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 $12.94 IN STOCK
Photo Part No Description Price (each) Stock
10261860 COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5 $1.20 IN STOCK
Photo Part No Description Price (each) Stock
230171 OIL LEVEL DETECTOR $63.93 IN STOCK
Photo Part No Description Price (each) Stock
282394 SCREWM6X18 $2.52 To Order
Photo Part No Description Price (each) Stock
231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 $2.59 IN STOCK
Photo Part No Description Price (each) Stock
282394 SCREWM6X18 $2.52 To Order
Photo Part No Description Price (each) Stock
16165276 CIRCLIP $1.82 IN STOCK
Photo Part No Description Price (each) Stock
291687 OIL SUMP SHIELD $19.48 To Order
Photo Part No Description Price (each) Stock
295634 SCREWM6X22 $2.69 To Order
Photo Part No Description Price (each) Stock
315073 DIPSTICK $42.29 To Order
Photo Part No Description Price (each) Stock
319585 OIL DIPSTICK HOLDER EXTENSION $74.48 To Order
319585 OIL DIPSTICK HOLDER EXTENSION $74.48 To Order
Photo Part No Description Price (each) Stock
233600 SCREW M6 X 12 $2.48 IN STOCK
Photo Part No Description Price (each) Stock
282370 O.R. GASKET $2.59 IN STOCK
Photo Part No Description Price (each) Stock
293205 ENGINE OIL FILLER CAP $33.12 IN STOCK
Photo Part No Description Price (each) Stock
303589 STUD $12.94 To Order
Photo Part No Description Price (each) Stock
294812 BUSHING $99.70 To Order
Photo Part No Description Price (each) Stock
294029 BUSHING $746.12 To Order
Photo Part No Description Price (each) Stock
299494 BRACKET $13.42 To Order
Photo Part No Description Price (each) Stock
282394 SCREWM6X18 $2.52 To Order
Photo Part No Description Price (each) Stock
223577 THREADED INSERT M22 X 1.5 X 9MM $3.92 IN STOCK
Photo Part No Description Price (each) Stock
306702 O.R. GASKET $6.68 IN STOCK
View All

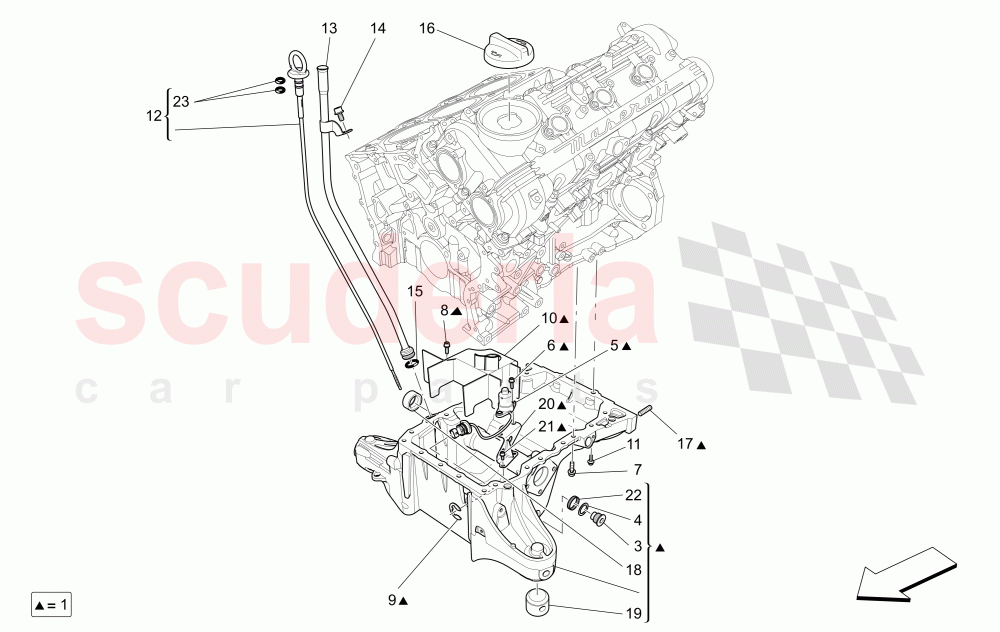

LUBRICATION SYSTEM: CIRCUIT AND COLLECTION of Maserati Maserati Levante (2017+) S Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 849084
OIL SUMP ASSEMBLY 		$1,329.12 1
3 104280
MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5
IN STOCK 		$12.94 1
4 10261860
COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5
IN STOCK 		$1.20 1
5 230171
OIL LEVEL DETECTOR
IN STOCK 		$63.93 1
6 282394
SCREWM6X18
M6X18 		$2.52 2
7 231629
SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30
M8X30
IN STOCK 		$2.59 19
8 282394
SCREWM6X18
M6X18 		$2.52 2
9 16165276
CIRCLIP
IN STOCK 		$1.82 1
10 291687
OIL SUMP SHIELD 		$19.48 1
11 295634
SCREWM6X22
M6X22 		$2.69 2
12 315073
DIPSTICK
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$42.29 1
13 319585
OIL DIPSTICK HOLDER EXTENSION 		$74.48 1
13 319585
OIL DIPSTICK HOLDER EXTENSION 		$74.48 1
14 233600
SCREW M6 X 12
M6X12
IN STOCK 		$2.48 1
15 282370
O.R. GASKET
IN STOCK 		$2.59 1
16 293205
ENGINE OIL FILLER CAP
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$33.12 1
17 303589
STUD 		$12.94 4
18 294812
BUSHING 		$99.70 1
19 294029
BUSHING 		$746.12 2
20 299494
BRACKET 		$13.42 1
21 282394
SCREWM6X18
M6X18 		$2.52 2
22 223577
THREADED INSERT M22 X 1.5 X 9MM
IN STOCK 		$3.92 1
23 306702
O.R. GASKET
IN STOCK 		$6.68 2
