Fuel Pumps And Connection Lines

Maserati Levante (2017+) S

Find Your Part

Maserati Levante (2017+) S - FUEL PUMPS AND CONNECTION LINES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
327905 RH FUEL PIPE WITH INJECTORS $1,293.10 IN STOCK
Photo Part No Description Price (each) Stock

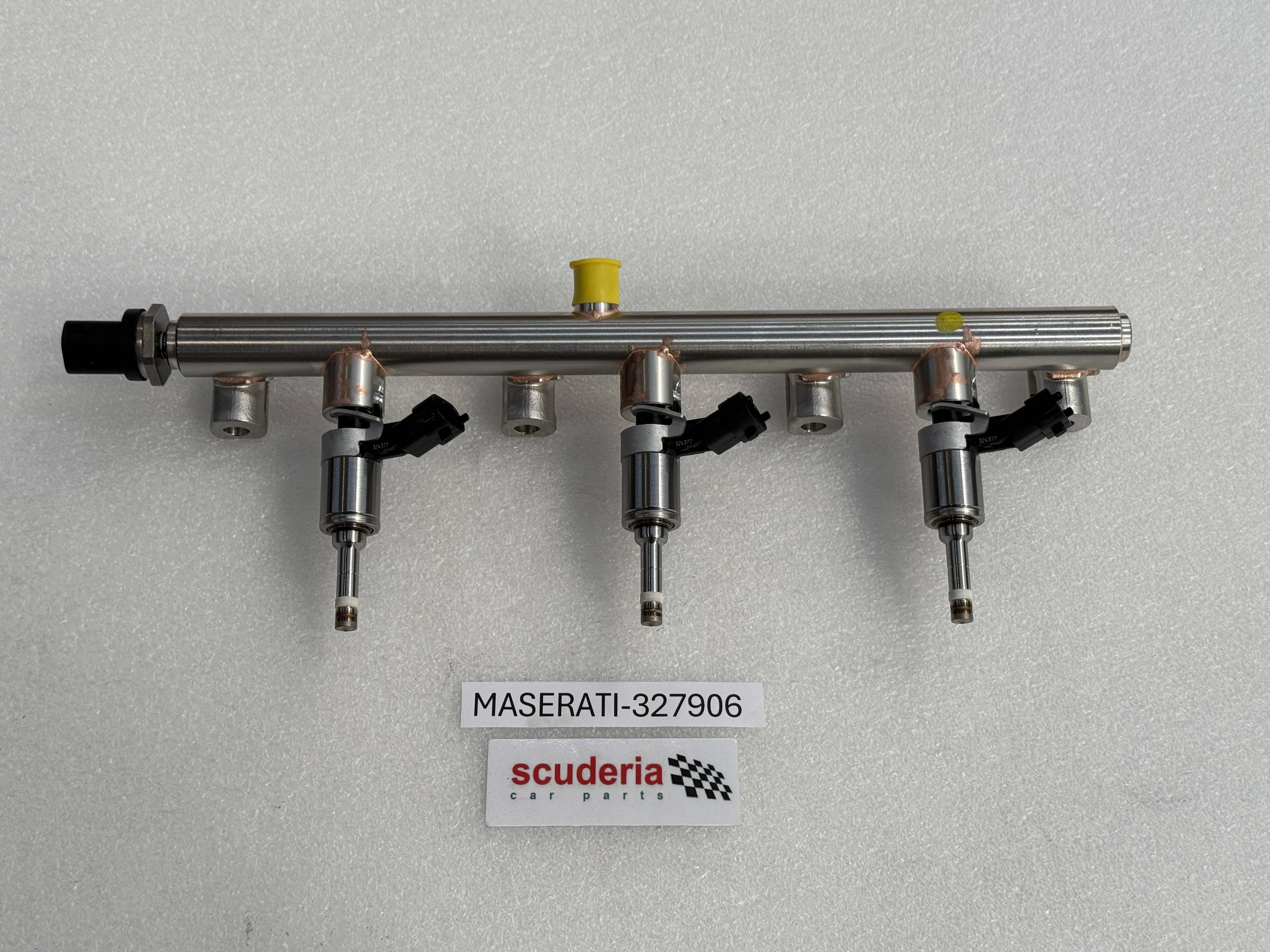

327906 LH FUEL PIPE WITH INJECTORS $1,183.83 IN STOCK
Photo Part No Description Price (each) Stock
285494 SCREWM8X50 $4.91 IN STOCK
Photo Part No Description Price (each) Stock
329202 HIGH PRESSURE FUEL PUMP $874.21 To Order
Photo Part No Description Price (each) Stock
14305434 SCREWM6X25 $1.38 To Order
Photo Part No Description Price (each) Stock
12639724 WASHERD.6.15-11X1 $1.38 To Order
Photo Part No Description Price (each) Stock
309114 CPL. ACOUSTIC COVER $210.51 To Order
Photo Part No Description Price (each) Stock
270601 HIG PRESSURE PUMP BUCKET $52.53 To Order
Photo Part No Description Price (each) Stock
231620 SCREW M6 X 25 $1.72 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW M6 X 22MM $2.59 IN STOCK
Photo Part No Description Price (each) Stock
296209 RH CABLE $262.11 To Order
Photo Part No Description Price (each) Stock
311644 LH CABLE $81.18 To Order
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 $2.59 IN STOCK
Photo Part No Description Price (each) Stock
310550 HIGH-PRESSURE FUEL PIPE BETWEEN PUMP AND DISTRIBUTOR $110.35 To Order
Photo Part No Description Price (each) Stock
298649 DISTRIBUTOR $156.64 To Order
Photo Part No Description Price (each) Stock
282572 RH RAIL-PUMP HIGH-PRESSURE FUEL PIPE $103.44 To Order
Photo Part No Description Price (each) Stock
282571 LH RAIL-PUMP HIGH-PRESSURE FUEL PIPE $87.69 To Order
Photo Part No Description Price (each) Stock
302810 SOUNDPROOFING ELEMENT $57.75 To Order
Photo Part No Description Price (each) Stock
303438 CLIP $11.04 To Order
Photo Part No Description Price (each) Stock
303438 CLIP $11.04 To Order
Photo Part No Description Price (each) Stock
670030185 PLATE $29.27 To Order
Photo Part No Description Price (each) Stock
675000173 SCREWM6X16 $2.09 To Order
Photo Part No Description Price (each) Stock
333908 DAMPER GDI PUMP $14.74 IN STOCK
View All

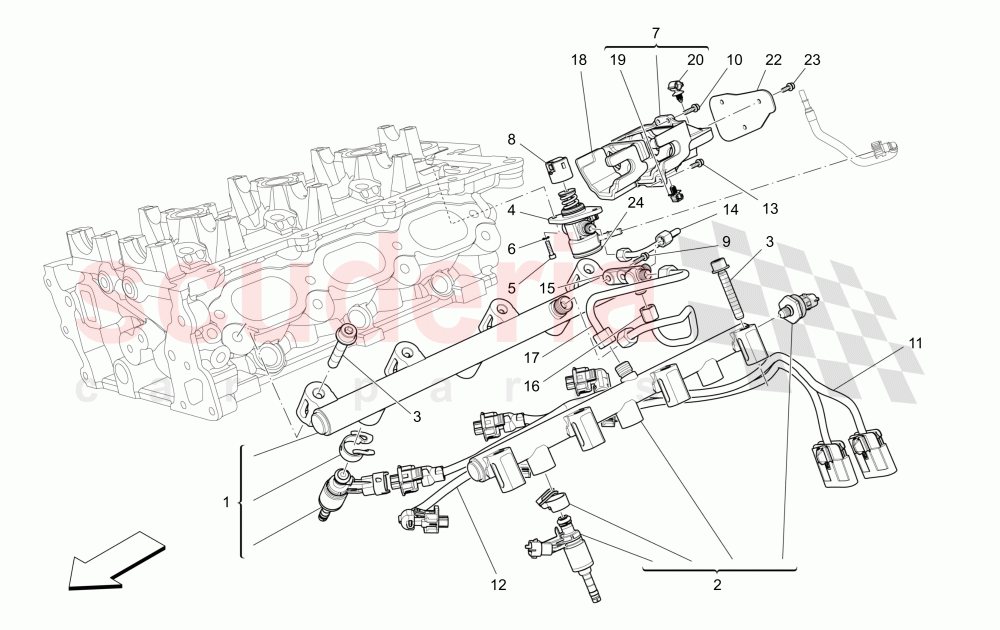

FUEL PUMPS AND CONNECTION LINES of Maserati Maserati Levante (2017+) S Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 327905
RH FUEL PIPE WITH INJECTORS
IN STOCK 		$1,293.10 1
2 327906
LH FUEL PIPE WITH INJECTORS
IN STOCK 		$1,183.83 1
3 285494
SCREWM8X50
M8X50
IN STOCK 		$4.91 8
4 329202
HIGH PRESSURE FUEL PUMP
NBD26 PHP099 PLEASE, ORDER ALSO PN 333908 		$874.21 1
5 14305434
SCREWM6X25
M6X25 		$1.38 2
6 12639724
WASHERD.6.15-11X1
D.6.15-11X1 		$1.38 2
7 309114
CPL. ACOUSTIC COVER 		$210.51 1
8 270601
HIG PRESSURE PUMP BUCKET
Diameter 28 		$52.53 1
9 231620
SCREW M6 X 25
M6X25
IN STOCK 		$1.72 2
10 231619
SCREW M6 X 22MM
M6X22
IN STOCK 		$2.59 2
11 296209
RH CABLE 		$262.11 1
12 311644
LH CABLE 		$81.18 1
13 231617
SCREW M6 X 18
M6X18
IN STOCK 		$2.59 2
14 310550
HIGH-PRESSURE FUEL PIPE BETWEEN PUMP AND DISTRIBUTOR 		$110.35 1
15 298649
DISTRIBUTOR 		$156.64 1
16 282572
RH RAIL-PUMP HIGH-PRESSURE FUEL PIPE 		$103.44 1
17 282571
LH RAIL-PUMP HIGH-PRESSURE FUEL PIPE 		$87.69 1
18 302810
SOUNDPROOFING ELEMENT 		$57.75 1
19 303438
CLIP 		$11.04 1
20 303438
CLIP 		$11.04 1
22 670030185
PLATE 		$29.27 1
23 675000173
SCREWM6X16
M6X16 		$2.09 3
24 333908
DAMPER GDI PUMP
PLEASE, ORDER ONLY IF YOU NEED REPLACE GDI HIGH PRESSURE FUEL PUMP
IN STOCK 		$14.74 1
