Front Doors: Mechanisms

Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV

Illustration Number: 09311

Find Your Part

Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV - FRONT DOORS: MECHANISMS (09311)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
F670167445 LH DOOR OUTER HANDLE Enquire To Order
670167445 LH DOOR OUTER HANDLE Enquire To Order
670267112 LH DOOR OUTER HANDLE Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
670157749 LH EXTERNAL DOOR HANDLE RETAINING BRACKET $230.00 To Order
670157748 RH EXTERNAL DOOR HANDLE RETAINING BRACKET $139.95 To Order
Photo Part No Description Price (each) Stock
670157584 LH FRONT DOOR LOCK $394.91 To Order
670157568 RH FRONT DOOR LOCK $414.43 To Order
Photo Part No Description Price (each) Stock
670157566 TIE ROD $23.15 To Order
Photo Part No Description Price (each) Stock
675002105 FRONT LH WINDOW RUN CHANNEL $15.15 To Order
675002106 FRONT RH WINDOW RUN CHANNEL $15.61 To Order
Photo Part No Description Price (each) Stock
673014105 LH FRONT DOOR CARRIER $503.40 To Order
673014121 RH FRONT DOOR CARRIER $524.00 To Order
Photo Part No Description Price (each) Stock
670175119 DOORS LOCK STRIKER $10.84 To Order
Photo Part No Description Price (each) Stock
675002131 LH UPPER HINGE $51.97 To Order
675002132 RH UPPER HINGE $51.97 To Order
Photo Part No Description Price (each) Stock
675002133 LH LOWER HINGE $51.97 To Order
675002130 RH LOWER HINGE $51.97 To Order
Photo Part No Description Price (each) Stock
675001811 SCREW $0.97 To Order
Photo Part No Description Price (each) Stock
675001318 NUT $1.28 To Order
Photo Part No Description Price (each) Stock
675000005 SCREWM 8x15 $2.36 IN STOCK
Photo Part No Description Price (each) Stock
675000485 SCREWM10 $1.61 To Order
Photo Part No Description Price (each) Stock
675001584 GASKET $2.77 To Order
Photo Part No Description Price (each) Stock
675001528 GASKET $3.42 To Order
Photo Part No Description Price (each) Stock
670006984 SCREW $2.41 To Order
Photo Part No Description Price (each) Stock
675001327 SCREW $0.97 To Order
Photo Part No Description Price (each) Stock
673014107 LH FRONT PRESENTER KIT $544.22 To Order
673014106 RH FRONT PRESENTER KIT $499.26 To Order
Photo Part No Description Price (each) Stock
673014111 LH FRONT GEARMOTOR KIT $134.81 To Order
673014110 RH FRONT GEAR MOTOR KIT $134.81 To Order
Photo Part No Description Price (each) Stock
673014113 SCREW $10.55 To Order
Photo Part No Description Price (each) Stock
675001669 SCREW $0.96 To Order
Photo Part No Description Price (each) Stock
673014112 FRONT HANDLE OPENING CONTROL $63.66 To Order
View All

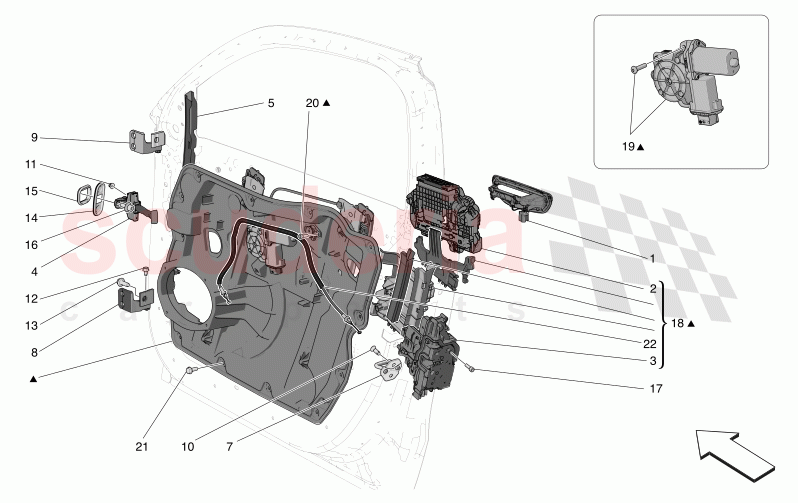

FRONT DOORS: MECHANISMS of Maserati Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 F670167445
LH DOOR OUTER HANDLE
Available with: FUORISERIE DOOR HANDLES ; EU CN US JP ME KO N0; 		- 1 Enquire
1 670167445
LH DOOR OUTER HANDLE
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 99999999; Not available with: FUORISERIE DOOR HANDLES, PLANT SPECIFIC PAINT, FINISHING GLOSSY BLACK, NERISSIMO EDITION CHINA; EU CN US JP ME KO N0; 		- 1 Enquire
1 670267112
LH DOOR OUTER HANDLE
Available with: FINISHING GLOSSY BLACK ; EU CN US JP ME KO N0; 		- 1 Enquire
1 670267112
LH DOOR OUTER HANDLE
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2037685 - 99999999; Available with: BODY COLOR KIT Not available with: FUORISERIE DOOR HANDLES; EU CN US JP ME KO N0; 		- 1 Enquire
1 F670167442
RH DOOR OUTER HANDLE
Available with: FUORISERIE DOOR HANDLES ; EU CN US JP ME KO N0; 		- 1 Enquire
1 670167442
RH DOOR OUTER HANDLE
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 99999999; Not available with: FUORISERIE DOOR HANDLES, PLANT SPECIFIC PAINT, FINISHING GLOSSY BLACK, NERISSIMO EDITION CHINA; EU CN US JP ME KO N0; 		- 1 Enquire
1 670267108
RH DOOR OUTER HANDLE
Available with: FINISHING GLOSSY BLACK ; EU CN US JP ME KO N0; 		- 1 Enquire
1 670267108
RH DOOR OUTER HANDLE
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2037685 - 99999999; Available with: BODY COLOR KIT Not available with: FUORISERIE DOOR HANDLES; EU CN US JP ME KO N0; 		- 1 Enquire
2 670157749
LH EXTERNAL DOOR HANDLE RETAINING BRACKET
EU CN US JP ME KO N0; 		$230.00 1
2 670157748
RH EXTERNAL DOOR HANDLE RETAINING BRACKET
EU CN US JP ME KO N0; 		$139.95 1
3 670157584
LH FRONT DOOR LOCK
EU CN US JP ME KO N0; 		$394.91 1
3 670157568
RH FRONT DOOR LOCK
EU CN US JP ME KO N0; 		$414.43 1
4 670157566
TIE ROD 		$23.15 2
5 675002105
FRONT LH WINDOW RUN CHANNEL 		$15.15 1
5 675002106
FRONT RH WINDOW RUN CHANNEL 		$15.61 1
6 673014105
LH FRONT DOOR CARRIER 		$503.40 1
6 673014121
RH FRONT DOOR CARRIER 		$524.00 1
7 670175119
DOORS LOCK STRIKER 		$10.84 2
8 675002131
LH UPPER HINGE 		$51.97 1
8 675002132
RH UPPER HINGE 		$51.97 1
9 675002133
LH LOWER HINGE 		$51.97 1
9 675002130
RH LOWER HINGE 		$51.97 1
10 675001811
SCREW 		$0.97 4
11 675001318
NUT 		$1.28 4
12 675000005
SCREWM 8x15
IN STOCK 		$2.36 4
13 675000485
SCREWM10 		$1.61 12
14 675001584
GASKET 		$2.77 2
15 675001528
GASKET 		$3.42 2
16 670006984
SCREW 		$2.41 2
17 675001327
SCREW 		$0.97 6
18 673014107
LH FRONT PRESENTER KIT
EU CN US JP ME KO N0; 		$544.22 1
18 673014106
RH FRONT PRESENTER KIT
EU CN US JP ME KO N0; 		$499.26 1
19 673014111
LH FRONT GEARMOTOR KIT 		$134.81 1
19 673014110
RH FRONT GEAR MOTOR KIT 		$134.81 1
20 673014113
SCREW 		$10.55 4
21 675001669
SCREW 		$0.96 24
22 673014112
FRONT HANDLE OPENING CONTROL 		$63.66 2
