Thermal Insulating Panels

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

Illustration Number: 09632

Find Your Part

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - THERMAL INSULATING PANELS (09632)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
675001733 TANK HEAT SHIELD $294.10 To Order
Photo Part No Description Price (each) Stock
675001986 LH HEAT SHIELD $129.87 To Order
Photo Part No Description Price (each) Stock
675001622 SILENCER HEAT SHIELD $36.11 To Order
Photo Part No Description Price (each) Stock
670154175 DRIVE SHAFT SHIELD $42.58 To Order
Photo Part No Description Price (each) Stock
670156596 RH HEAT SHIELD $21.53 To Order
Photo Part No Description Price (each) Stock
675000716 NUT $1.62 To Order
Photo Part No Description Price (each) Stock
670051356 HEAT SHIELD $31.21 To Order
Photo Part No Description Price (each) Stock
670051105 SCREW $2.49 To Order
Photo Part No Description Price (each) Stock
675000047 WASHER $5.91 IN STOCK
View All

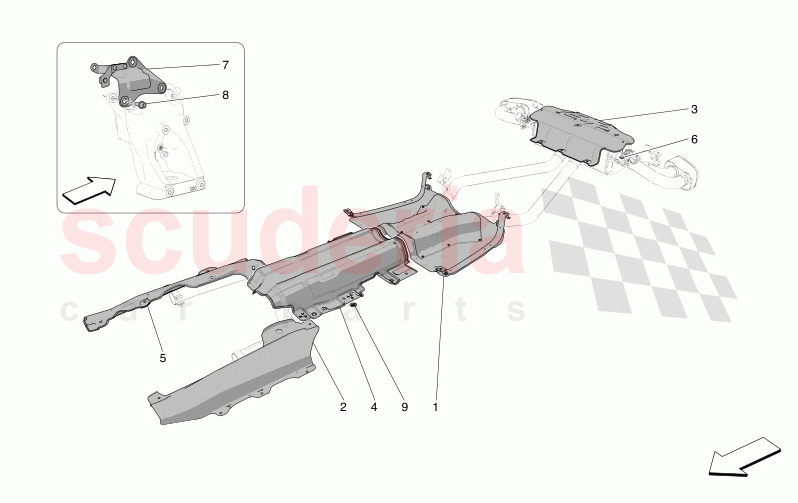

THERMAL INSULATING PANELS of Maserati Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 675001733
TANK HEAT SHIELD 		$294.10 1
2 675001986
LH HEAT SHIELD 		$129.87 1
3 675001622
SILENCER HEAT SHIELD 		$36.11 1
4 670154175
DRIVE SHAFT SHIELD 		$42.58 1
5 670156596
RH HEAT SHIELD 		$21.53 1
6 675000716
NUT 		$1.62 13
7 670051356
HEAT SHIELD 		$31.21 1
8 670051105
SCREW 		$2.49 3
9 675000047
WASHER
IN STOCK 		$5.91 4
