Bodywork And Front Outer Trim Panels

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

Illustration Number: 09001

Find Your Part

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - BODYWORK AND FRONT OUTER TRIM PANELS (09001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670293088 FRONT CROSS MEMBER $463.88 To Order
Photo Part No Description Price (each) Stock
673014263 LH MUDGUARD FRONT LOWER REINFORCEMENT $26.81 To Order
Photo Part No Description Price (each) Stock
670160092 LH INSERT FOR FRONT FENDER $10.32 To Order
Photo Part No Description Price (each) Stock
670217114 LH FRONT FENDER BRACKET $11.92 To Order
Photo Part No Description Price (each) Stock
673016705 LH MUDGUARD SUPPORT BRACKET $29.82 To Order
Photo Part No Description Price (each) Stock
670221171 LH MUDGUARD SUPPORT BRACKET $2.72 To Order
Photo Part No Description Price (each) Stock
670157320 LH FRONT FENDER BRACKET $2.05 To Order
Photo Part No Description Price (each) Stock
670157342 LH MUDGUARD BRACKET FIXING $13.62 To Order
Photo Part No Description Price (each) Stock
670157318 LH UPPER REPORT $12.80 To Order
Photo Part No Description Price (each) Stock
670158066 RH FRONT FENDER BRACKET $1.70 To Order
Photo Part No Description Price (each) Stock
670160091 RH INSERT FOR FRONT FENDER $10.32 To Order
Photo Part No Description Price (each) Stock
673014200 RH MUDGUARD FRONT LOWER REINFORCEMENT $26.55 To Order
Photo Part No Description Price (each) Stock
670217112 RH FRONT FENDER BRACKET $11.92 To Order
Photo Part No Description Price (each) Stock
673016704 RH MUDGUARD SUPPORT BRACKET $29.82 To Order
Photo Part No Description Price (each) Stock
670221170 RH INTERMEDIATE BRACKET $4.74 To Order
Photo Part No Description Price (each) Stock
673016588 FRONT RH MUDGUARD $334.65 IN STOCK
673014259 FRONT RH MUDGUARD ASSEMBLY $325.85 To Order
Photo Part No Description Price (each) Stock
673016589 FRONT LH MUDGUARD ASSEMBLY $325.85 To Order
673016589 FRONT LH MUDGUARD ASSEMBLY $325.85 To Order
Photo Part No Description Price (each) Stock
670157343 RH MUDGUARD BRACKET MUDGUARD FIXING $13.62 To Order
Photo Part No Description Price (each) Stock
670157317 RH UPPER REPORT $12.80 To Order
Photo Part No Description Price (each) Stock
675001750 SCREW $1.20 To Order
Photo Part No Description Price (each) Stock
675001317 SCREW $1.91 To Order
Photo Part No Description Price (each) Stock
675002108 RIVET $1.02 To Order
Photo Part No Description Price (each) Stock
675002124 SCREW $2.24 To Order
Photo Part No Description Price (each) Stock
670177870 RH ENGINE COVER BRACKET $46.04 To Order
Photo Part No Description Price (each) Stock
670182557 LH ENGINE COVER BRACKET $44.32 To Order
Photo Part No Description Price (each) Stock
675001933 SCREW $1.52 To Order
Photo Part No Description Price (each) Stock
673014207 FRONT MUDGUARD BRACKET $4.43 To Order
Photo Part No Description Price (each) Stock
670158078 BODYWORK ASSEMBLY Enquire To Order
670174482 BODYWORK ASSEMBLY Enquire To Order
670158986 BODYWORK ASSEMBLY $13,918.46 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
670005535 BLOCK FRONT BUMPER MOUNTING $7.94 IN STOCK
View All

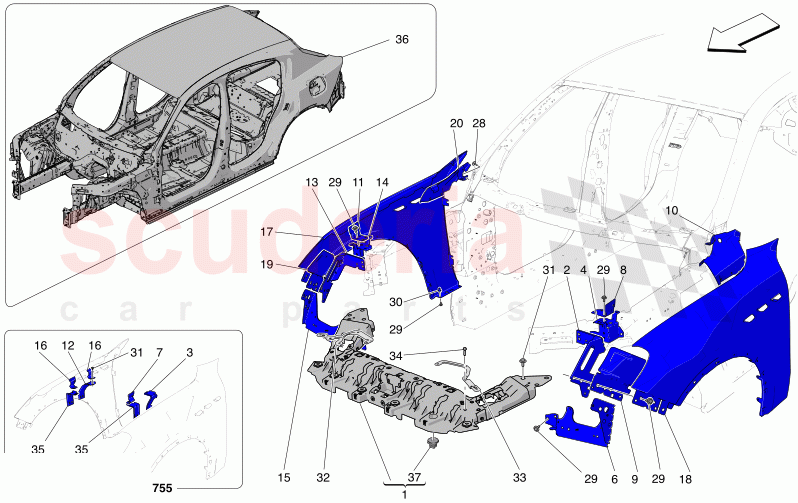

BODYWORK AND FRONT OUTER TRIM PANELS of Maserati Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670293088
FRONT CROSS MEMBER 		$463.88 1
2 673014263
LH MUDGUARD FRONT LOWER REINFORCEMENT 		$26.81 1
3 670160092
LH INSERT FOR FRONT FENDER
Bespoke Assembly Number 0 - 2031755; 		$10.32 1
4 670217114
LH FRONT FENDER BRACKET 		$11.92 1
6 673016705
LH MUDGUARD SUPPORT BRACKET 		$29.82 1
7 670221171
LH MUDGUARD SUPPORT BRACKET
Bespoke Assembly Number 0 - 2031755; 		$2.72 2
8 670157320
LH FRONT FENDER BRACKET 		$2.05 1
9 670157342
LH MUDGUARD BRACKET FIXING 		$13.62 1
10 670157318
LH UPPER REPORT 		$12.80 1
11 670158066
RH FRONT FENDER BRACKET 		$1.70 1
12 670160091
RH INSERT FOR FRONT FENDER
Bespoke Assembly Number 0 - 2031755; 		$10.32 1
13 673014200
RH MUDGUARD FRONT LOWER REINFORCEMENT 		$26.55 1
14 670217112
RH FRONT FENDER BRACKET 		$11.92 1
15 673016704
RH MUDGUARD SUPPORT BRACKET 		$29.82 1
16 670221170
RH INTERMEDIATE BRACKET
Bespoke Assembly Number 0 - 2031755; 		$4.74 2
17 673016588
FRONT RH MUDGUARD
IF THE MUDGUARD SUPPLIED AS A REPLACEMENT DOES NOT HAVE THE BRACKETS POS 16, IT IS STILL POSSIBLE TO INSTALL IT ON THE VEHICLE.; Bespoke Assembly Number 2031756 - 99999999;
IN STOCK 		$334.65 1
17 673014259
FRONT RH MUDGUARD ASSEMBLY
Bespoke Assembly Number 0 - 2031755; 		$325.85 1
18 673016589
FRONT LH MUDGUARD ASSEMBLY
IF THE MUDGUARD SUPPLIED AS A REPLACEMENT DOES NOT HAVE THE BRACKETS POS 7, IT IS STILL POSSIBLE TO INSTALL IT ON THE VEHICLE; Bespoke Assembly Number 2031756 - 99999999; 		$325.85 1
18 673016589
FRONT LH MUDGUARD ASSEMBLY
Bespoke Assembly Number 0 - 2031755; 		$325.85 1
19 670157343
RH MUDGUARD BRACKET MUDGUARD FIXING 		$13.62 1
20 670157317
RH UPPER REPORT 		$12.80 1
28 675001750
SCREW 		$1.20 1
29 675001317
SCREW
Bespoke Assembly Number 2031756 - 99999999; 		$1.91 30
30 675002108
RIVET 		$1.02 2
31 675002124
SCREW 		$2.24 6
32 670177870
RH ENGINE COVER BRACKET 		$46.04 1
33 670182557
LH ENGINE COVER BRACKET 		$44.32 1
34 675001933
SCREW 		$1.52 6
35 673014207
FRONT MUDGUARD BRACKET
Bespoke Assembly Number 0 - 2031755; 		$4.43 2
36 670158078
BODYWORK ASSEMBLY
Not available with: ROOF RAILS, PANORAMA SUNROOF; EU CN JP ME KO N0; 		- 1 Enquire
36 670174482
BODYWORK ASSEMBLY
Available with: ROOF RAILS Not available with: PANORAMA SUNROOF; EU CN JP ME KO N0; 		- 1 Enquire
36 670158986
BODYWORK ASSEMBLY
Available with: PANORAMA SUNROOF ; EU CN JP ME KO N0; 		$13,918.46 1
36 670162085
BODYWORK ASSEMBLY
Not available with: ROOF RAILS, PANORAMA SUNROOF; AU UK JRH IN N8; 		- 1 Enquire
36 670174486
BODYWORK ASSEMBLY
Available with: ROOF RAILS Not available with: PANORAMA SUNROOF; AU UK JRH IN N8; 		- 1 Enquire
36 670162086
BODYWORK ASSEMBLY
Available with: PANORAMA SUNROOF ; AU UK JRH IN N8; 		- 1 Enquire
37 670005535
BLOCK FRONT BUMPER MOUNTING
IN STOCK 		$7.94 6
