LINES of Maserati Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

View All

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - LINES (04202)

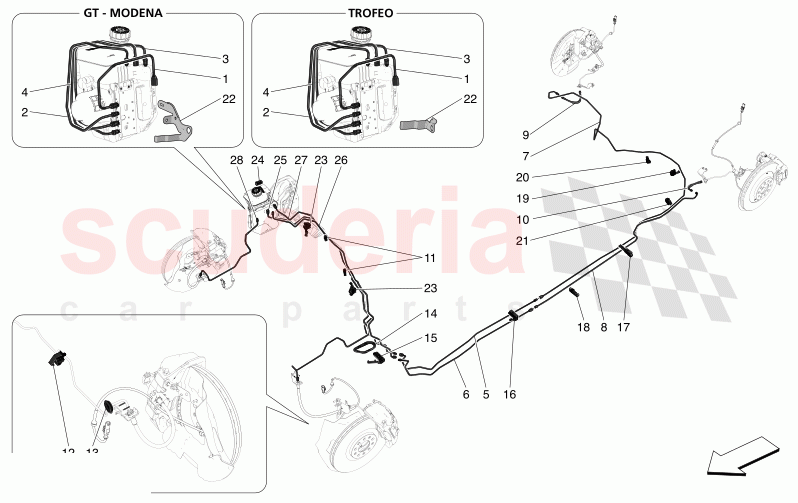

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	675001632	RIGID PIPE FROM CONTROL UNIT TO RH INTERMEDIATE PIPE	$12.60	To Order

Photo	Part No	Description	Price (each)	Stock
	675001618	RIGID PIPE FROM CONTROL UNIT TO LH INTERMEDIATE PIPE	$12.70	To Order

Photo	Part No	Description	Price (each)	Stock
	675001620	RIGID PIPE	$12.70	To Order

Photo	Part No	Description	Price (each)	Stock
	675001619	RIGID PIPE	$12.70	To Order

Photo	Part No	Description	Price (each)	Stock
	675001743	RH INTERMEDIATE RIGID TUBE. 1st section	$10.77	To Order

Photo	Part No	Description	Price (each)	Stock
	675001744	LH INTERMEDIATE RIGID TUBE. 1st section	$10.77	To Order

Photo	Part No	Description	Price (each)	Stock
	670156758	RH INTERMEDIATE RIGID TUBE. 2nd SECTION	$30.36	To Order

Photo	Part No	Description	Price (each)	Stock
	670156757	LH INTERMEDIATE RIGID TUBE. 2nd SECTION	$11.99	To Order

Photo	Part No	Description	Price (each)	Stock
	675001878	HOSE	$8.81	To Order

Photo	Part No	Description	Price (each)	Stock
	675001879	HOSE	$10.47	To Order

Photo	Part No	Description	Price (each)	Stock
	675001569	CLIP	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	675001794	CLIP	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	675000281	GASKET	$3.49	To Order

Photo	Part No	Description	Price (each)	Stock
	675001715	GASKET	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	675001795	CLIP	$3.17	To Order

Photo	Part No	Description	Price (each)	Stock
	675001636	CLIP	$4.43	To Order

Photo	Part No	Description	Price (each)	Stock
	675001662	CLIP	$4.11	To Order

Photo	Part No	Description	Price (each)	Stock
	675001663	CLIP	$4.67	To Order

Photo	Part No	Description	Price (each)	Stock
	675001887	CLIP	$1.84	To Order

Photo	Part No	Description	Price (each)	Stock
	670156764	CLIP	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	670181542	CLIP	$2.58	To Order

Photo	Part No	Description	Price (each)	Stock
	675001628	BRACKET	$27.74	To Order

Photo	Part No	Description	Price (each)	Stock
	675001872	CLIP	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	675001490	CLIP	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	675001625	RH INTERMEDIATE RIGID PIPE	$57.79	To Order

Photo	Part No	Description	Price (each)	Stock
	670175112	LH INTERMEDIATE RIGID PIPE	$50.37	To Order

Photo	Part No	Description	Price (each)	Stock
	670175108	RIGID PIPE FROM CONTROL UNIT TO LH CONNECTION	$47.35	To Order

Photo	Part No	Description	Price (each)	Stock
	670175111	RIGID PIPE FROM CONTROL UNIT TO RH CONNECTION	$47.35	To Order

View All

Diagram Tap to enlarge

Lines

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

Illustration Number: 04202

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - LINES (04202)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	675001632	RIGID PIPE FROM CONTROL UNIT TO RH INTERMEDIATE PIPE	675001632 RIGID PIPE FROM CONTROL UNIT TO RH INTERMEDIATE PIPE AU UK JRH IN N8;	$12.60	1
2	675001618	RIGID PIPE FROM CONTROL UNIT TO LH INTERMEDIATE PIPE	675001618 RIGID PIPE FROM CONTROL UNIT TO LH INTERMEDIATE PIPE AU UK JRH IN N8;	$12.70	1
3	675001620	RIGID PIPE	675001620 RIGID PIPE AU UK JRH IN N8;	$12.70	1
4	675001619	RIGID PIPE	675001619 RIGID PIPE AU UK JRH IN N8;	$12.70	1
5	675001743	RH INTERMEDIATE RIGID TUBE. 1st section	675001743 RH INTERMEDIATE RIGID TUBE. 1st section	$10.77	1
6	675001744	LH INTERMEDIATE RIGID TUBE. 1st section	675001744 LH INTERMEDIATE RIGID TUBE. 1st section	$10.77	1
7	670156758	RH INTERMEDIATE RIGID TUBE. 2nd SECTION	670156758 RH INTERMEDIATE RIGID TUBE. 2nd SECTION	$30.36	1
8	670156757	LH INTERMEDIATE RIGID TUBE. 2nd SECTION	670156757 LH INTERMEDIATE RIGID TUBE. 2nd SECTION	$11.99	1
9	675001878	HOSE	675001878 HOSE	$8.81	1
10	675001879	HOSE	675001879 HOSE	$10.47	1
11	675001569	CLIP	675001569 CLIP AU UK JRH IN N8;	$2.27	2
12	675001794	CLIP	675001794 CLIP AU UK JRH IN N8;	$1.63	1
13	675000281	GASKET	675000281 GASKET	$3.49	2
14	675001715	GASKET	675001715 GASKET	$2.92	1
15	675001795	CLIP	675001795 CLIP	$3.17	1
16	675001636	CLIP	675001636 CLIP	$4.43	3
17	675001662	CLIP	675001662 CLIP	$4.11	1
18	675001663	CLIP	675001663 CLIP	$4.67	2
19	675001887	CLIP	675001887 CLIP	$1.84	1
20	670156764	CLIP	670156764 CLIP	$1.51	5
21	670181542	CLIP	670181542 CLIP	$2.58	2
22	675001628	BRACKET	675001628 BRACKET	$27.74	1
23	675001872	CLIP	675001872 CLIP	$1.70	1
24	675001490	CLIP	675001490 CLIP	$1.51	1
25	675001625	RH INTERMEDIATE RIGID PIPE	675001625 RH INTERMEDIATE RIGID PIPE	$57.79	1
26	670175112	LH INTERMEDIATE RIGID PIPE	670175112 LH INTERMEDIATE RIGID PIPE	$50.37	1
27	670175108	RIGID PIPE FROM CONTROL UNIT TO LH CONNECTION	670175108 RIGID PIPE FROM CONTROL UNIT TO LH CONNECTION	$47.35	1
28	670175111	RIGID PIPE FROM CONTROL UNIT TO RH CONNECTION	670175111 RIGID PIPE FROM CONTROL UNIT TO RH CONNECTION	$47.35	1
