Braking Devices On Front Wheels

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

Illustration Number: 04102

Find Your Part

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - BRAKING DEVICES ON FRONT WHEELS (04102)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670293171 FRONT BRAKE DISC $297.54 IN STOCK
Photo Part No Description Price (each) Stock
675001537 SCREW $2.49 To Order
Photo Part No Description Price (each) Stock
675001679 SCREW $9.20 To Order
Photo Part No Description Price (each) Stock
670301460 LH FRONT CALIPER ASSEMBLY $722.64 To Order
670301462 LH FRONT CALIPER ASSEMBLY Enquire To Order
670301464 LH FRONT CALIPER ASSEMBLY Enquire To Order
...and 21 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
673012866 FRONT BRAKE PADS KIT $396.16 IN STOCK
Photo Part No Description Price (each) Stock
675001585 LH FRONT CALIPER RIGID PIPE $7.97 To Order
675001586 RH FRONT CALIPER RIGID PIPE $7.97 To Order
Photo Part No Description Price (each) Stock
675001676 LH FRONT BRACKET $7.30 To Order
675001677 RH FRONT BRACKET $7.30 To Order
Photo Part No Description Price (each) Stock
675000898 SCREW $5.03 To Order
Photo Part No Description Price (each) Stock
675001063 NUT $1.28 To Order
Photo Part No Description Price (each) Stock
675001738 LH FRONT BRAKE DISC GUARD $26.81 To Order
675001739 RH FRONT BRAKE DISC GUARD $26.81 To Order
Photo Part No Description Price (each) Stock
675001032 SCREW $1.32 To Order
Photo Part No Description Price (each) Stock
675000276 SPRING PLATE $1.00 To Order
Photo Part No Description Price (each) Stock
675001877 FLEXIBLE PIPE TO FRONT CALIPERS $10.41 To Order
Photo Part No Description Price (each) Stock
675001740 LH BRACKET $2.96 To Order
675001741 RH BRACKET $3.87 To Order
Photo Part No Description Price (each) Stock
673010933 BLEEDER SCREW AND PLUG $59.37 To Order
Photo Part No Description Price (each) Stock
675001897 RIVET $2.10 To Order
Photo Part No Description Price (each) Stock
673012869 SPRING AND PINS KIT $33.90 To Order
Photo Part No Description Price (each) Stock
673010936 LH BRACKET AND SCREW $47.62 To Order
673010935 RH BRACKET AND SCREW $47.62 To Order
Photo Part No Description Price (each) Stock
675001523 ADAPTER $95.45 To Order
Photo Part No Description Price (each) Stock
675001839 SCREW $4.77 To Order
View All

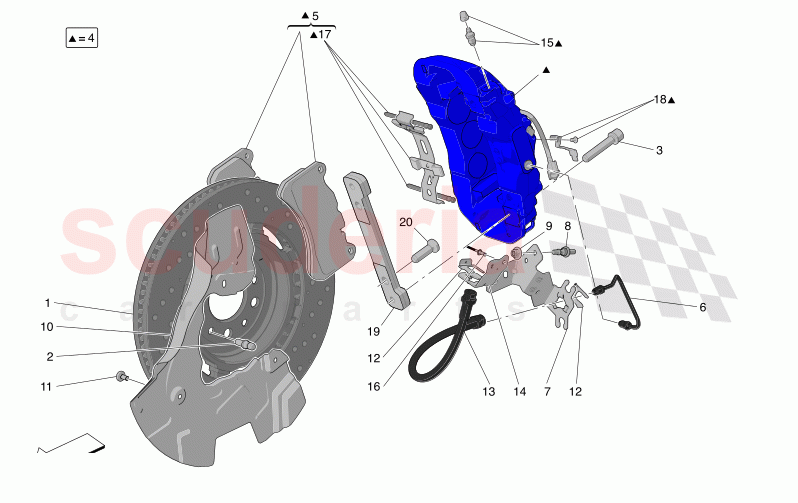

BRAKING DEVICES ON FRONT WHEELS of Maserati Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670293171
FRONT BRAKE DISC
IN STOCK 		$297.54 2
2 675001537
SCREW 		$2.49 2
3 675001679
SCREW 		$9.20 4
4 670301460
LH FRONT CALIPER ASSEMBLY
Available with: FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME Not available with: STANDARD BRAKE CALIPERS, FUORISERIE - WHITE BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8 market.abbr.T0 market.abbr.TX; 		$722.64 1
4 670301462
LH FRONT CALIPER ASSEMBLY
Available with: FUORISERIE - WHITE BRAKE CALIPERS Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, STANDARD BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8 market.abbr.T0 market.abbr.TX; 		- 1 Enquire
4 670301464
LH FRONT CALIPER ASSEMBLY
Available with: FUORISERIE - ORANGE BRAKE CALIPERS Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, STANDARD BRAKE CALIPERS, FUORISERIE - WHITE BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8 market.abbr.T0 market.abbr.TX; 		- 1 Enquire
4 670301458
LH FRONT CALIPER ASSEMBLY
Available with: YELLOW BRAKE CALIPERS ; EU AU UK JP ME JRH IN KO N0 N8 market.abbr.T0 market.abbr.TX; 		$641.26 1
4 670301455
LH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2025680 - 99999999; Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8 m 		$685.74 1
4 670301456
LH FRONT CALIPER ASSEMBLY
Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8 market.abbr.T0 market.abbr.TX; 		$733.48 1
4 670301474
RH FRONT CALIPER ASSEMBLY
Available with: FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME Not available with: STANDARD BRAKE CALIPERS, FUORISERIE - WHITE BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8 market.abbr.T0 market.abbr.TX; 		$722.64 1
4 670301476
RH FRONT CALIPER ASSEMBLY
Available with: FUORISERIE - WHITE BRAKE CALIPERS Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, STANDARD BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8 market.abbr.T0 market.abbr.TX; 		- 1 Enquire
4 670301504
RH FRONT CALIPER ASSEMBLY
Available with: FUORISERIE - ORANGE BRAKE CALIPERS Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, STANDARD BRAKE CALIPERS, FUORISERIE - WHITE BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8 market.abbr.T0 market.abbr.TX; 		- 1 Enquire
4 670301472
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2025622 - 99999999; Available with: YELLOW BRAKE CALIPERS ; EU AU UK JP ME JRH IN KO N0 N8 market.abbr.T0 market.abbr.TX; 		$640.18 1
4 670301469
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2025680 - 99999999; Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8 m 		$685.74 1
4 670301470
RH FRONT CALIPER ASSEMBLY
Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8 market.abbr.T0 market.abbr.TX; 		$733.48 1
4 670292907
LH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2025679; Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8; 		$659.70 1
4 670301458
LH FRONT CALIPER ASSEMBLY
Available with: YELLOW BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8 market.abbr.T0 market.abbr.TX; 		$641.26 1
4 670301457
LH FRONT CALIPER ASSEMBLY
Available with: BRAKE CALIPERS LIGHT BLUE Not available with: STANDARD BRAKE CALIPERS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8; 		- 1 Enquire
4 670301456
LH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2028839; Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8; 		$733.48 1
4 670301457
LH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2027966; Available with: BRAKE CALIPERS LIGHT BLUE Not available with: STANDARD BRAKE CALIPERS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8; 		- 1 Enquire
4 670301458
LH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2025621; Available with: YELLOW BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8; 		$641.26 1
4 670292903
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2025679; Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8; 		$685.74 1
4 670292906
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2025621; Available with: YELLOW BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8; 		$640.18 1
4 670301472
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2025622 - 99999999; Available with: YELLOW BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS; EU AU UK JP ME JRH KO; 		$640.18 1
4 670301471
RH FRONT CALIPER ASSEMBLY
Available with: BRAKE CALIPERS LIGHT BLUE Not available with: STANDARD BRAKE CALIPERS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8; 		- 1 Enquire
4 670301470
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2028839; Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8; 		$733.48 1
4 670301471
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2027966; Available with: BRAKE CALIPERS LIGHT BLUE Not available with: STANDARD BRAKE CALIPERS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP ME JRH IN KO N0 N8; 		- 1 Enquire
5 673012866
FRONT BRAKE PADS KIT
EU AU UK JP ME JRH IN KO N0 N8;
IN STOCK 		$396.16 1
6 675001585
LH FRONT CALIPER RIGID PIPE 		$7.97 1
6 675001586
RH FRONT CALIPER RIGID PIPE 		$7.97 1
7 675001676
LH FRONT BRACKET 		$7.30 1
7 675001677
RH FRONT BRACKET 		$7.30 1
8 675000898
SCREW 		$5.03 4
9 675001063
NUT 		$1.28 2
10 675001738
LH FRONT BRAKE DISC GUARD 		$26.81 1
10 675001739
RH FRONT BRAKE DISC GUARD 		$26.81 1
11 675001032
SCREW 		$1.32 6
12 675000276
SPRING PLATE 		$1.00 4
13 675001877
FLEXIBLE PIPE TO FRONT CALIPERS 		$10.41 2
14 675001740
LH BRACKET 		$2.96 1
14 675001741
RH BRACKET 		$3.87 1
15 673010933
BLEEDER SCREW AND PLUG 		$59.37 4
16 675001897
RIVET 		$2.10 4
17 673012869
SPRING AND PINS KIT 		$33.90 2
18 673010936
LH BRACKET AND SCREW 		$47.62 1
18 673010935
RH BRACKET AND SCREW 		$47.62 1
19 675001523
ADAPTER 		$95.45 2
20 675001839
SCREW 		$4.77 4
