Crank Mechanism

Maserati GranTurismo (2008-2010) S

Find Your Part

Maserati GranTurismo (2008-2010) S - CRANK MECHANISM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
275214 CRANKSHAFT $2,297.74 To Order
275214 CRANKSHAFT $2,297.74 To Order
Photo Part No Description Price (each) Stock
286834 Upper Main Half-Bearing Green $39.04 IN STOCK
268866 UPPER HALF-BEARING $135.17 To Order
286832 UPPER MAIN HALF BEARING BLUE $23.60 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock

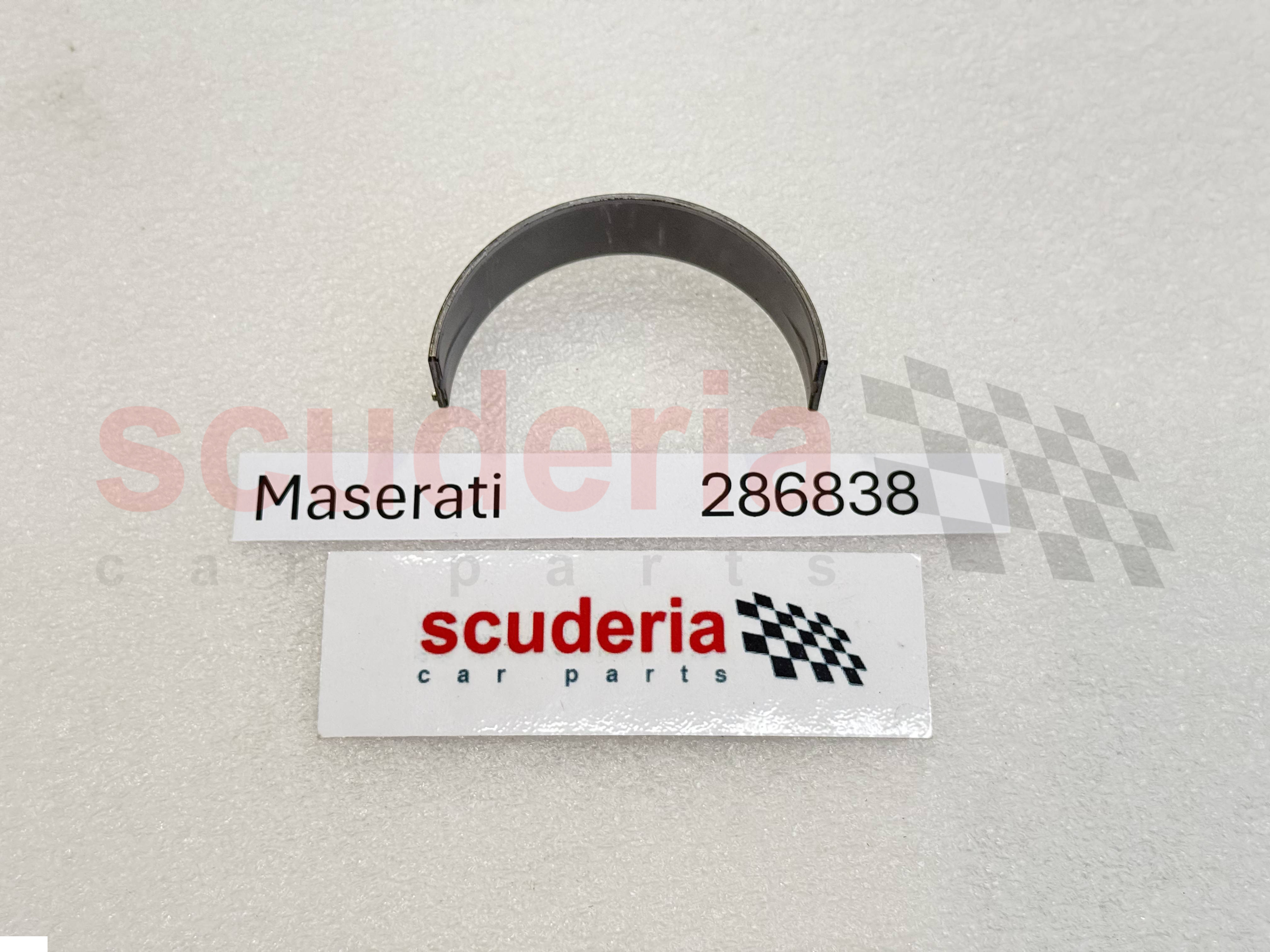

286838 LOWER HALF-BEARING $174.63 IN STOCK
268871 Lower Half-Bearing $131.21 To Order
286836 LOWER HALF-BEARING BLU $15.57 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
261727 SHIM WASHER $98.75 To Order
Photo Part No Description Price (each) Stock
261727 SHIM WASHER $98.75 To Order
Photo Part No Description Price (each) Stock
258347 TORSION DAMPER $1,107.92 IN STOCK
Photo Part No Description Price (each) Stock
263683 WASHER $16.70 To Order
Photo Part No Description Price (each) Stock
196216 Screw For Damper Fixing $84.15 To Order
Photo Part No Description Price (each) Stock
188717 Front Crankshaft Seal D.48-65 $37.83 IN STOCK
Photo Part No Description Price (each) Stock
200323 REAR MAIN OIL SEALING RING D.80-100X10 $45.78 IN STOCK
Photo Part No Description Price (each) Stock

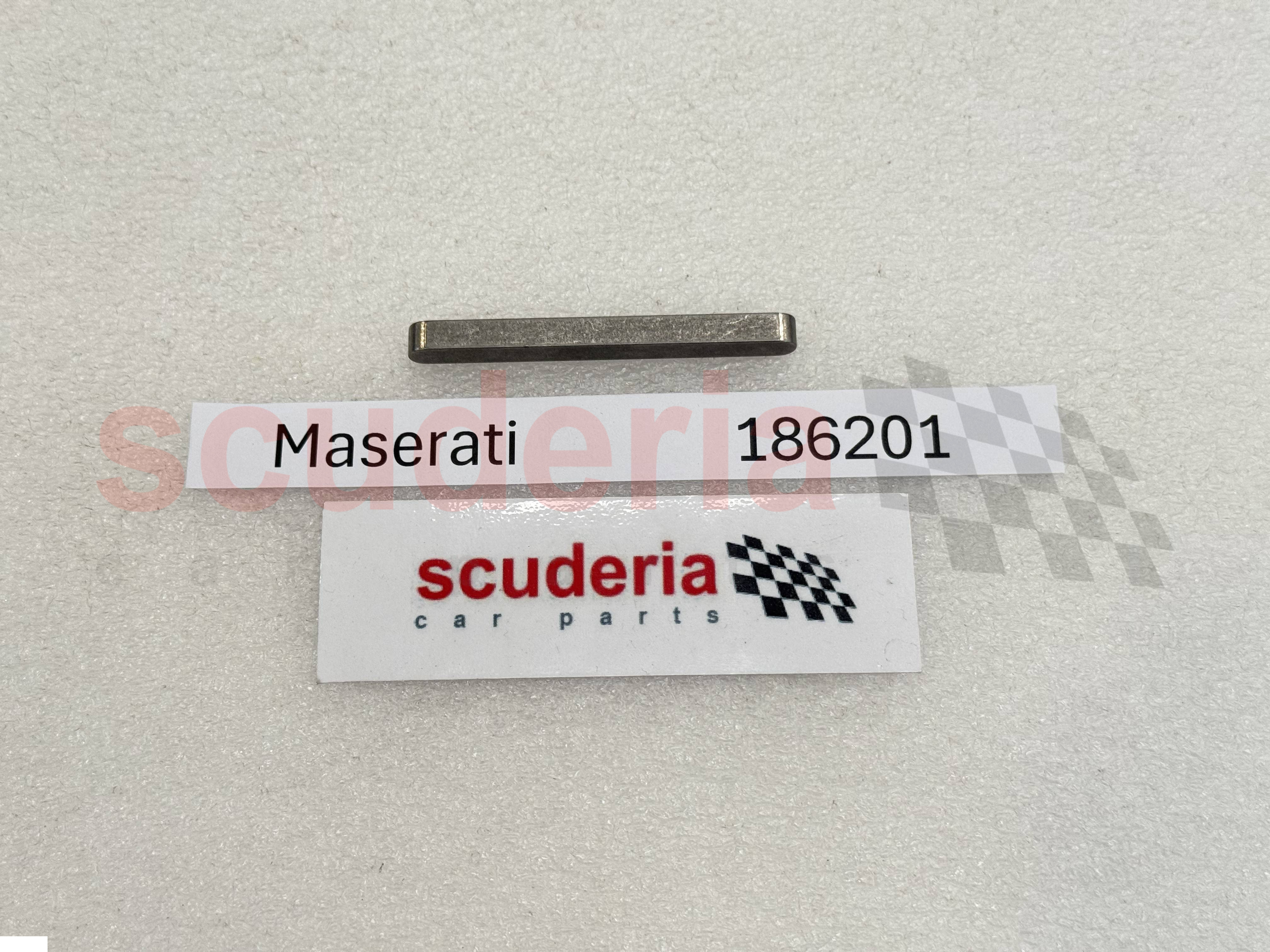

186201 TAB $3.17 IN STOCK
Photo Part No Description Price (each) Stock
244887 CONNECTING ROD SHAFT AND CAP ASSEMBLY Enquire To Order
281167 CONNECTING ROD SHAFT AND CAP ASSEMBLY $167.51 To Order
268163 CONNECTING ROD SHAFT AND CAP ASSEMBLY $175.62 To Order
Photo Part No Description Price (each) Stock
237132 LH SIDE ENGINE PISTON WITH RINGS $2,603.58 To Order

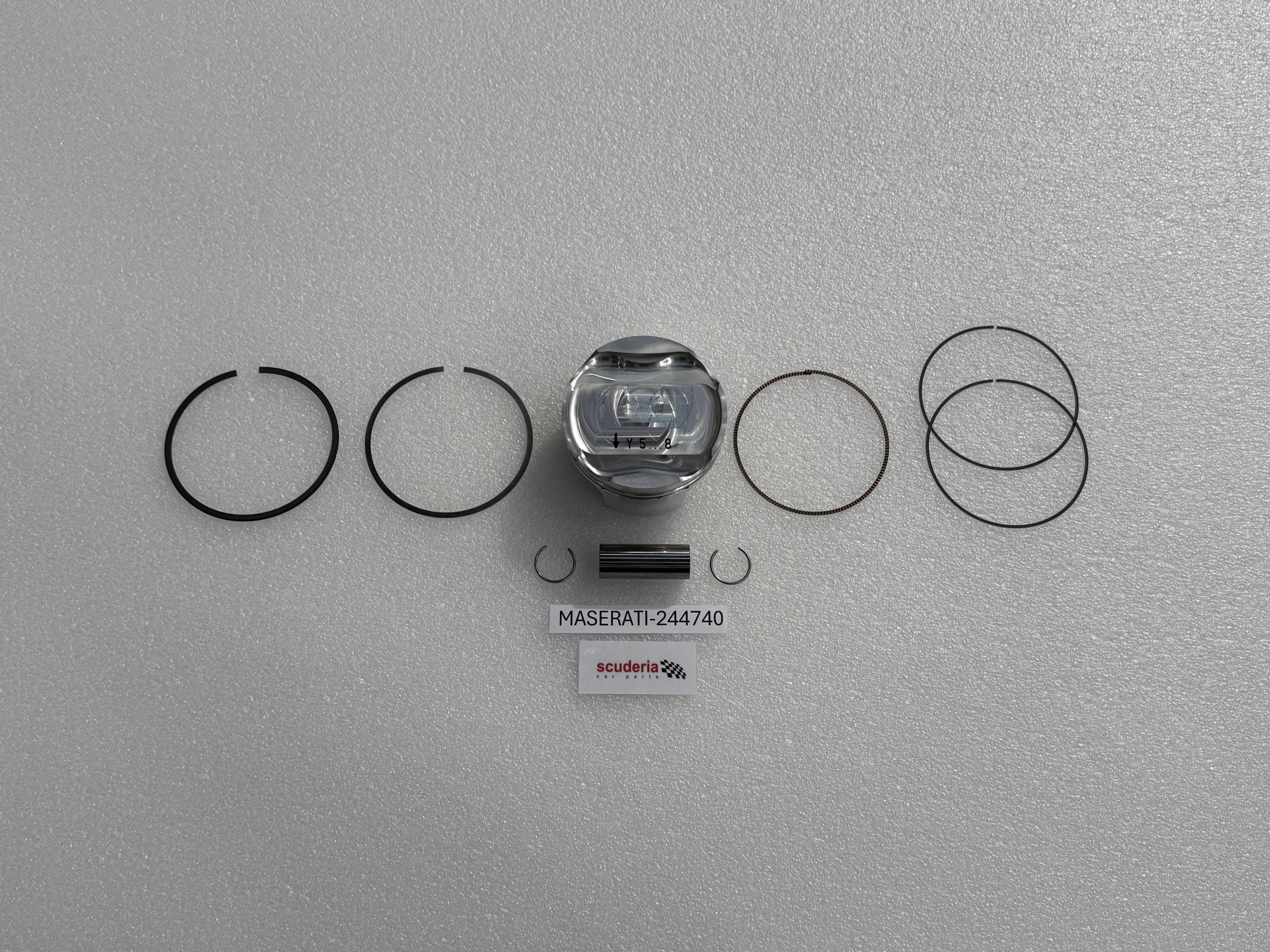

244740 LH SIDE ENGINE PISTON WITH RINGS $708.90 IN STOCK
237131 RH SIDE ENGINE PISTON WITH RINGS $2,603.58 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
206411 SEAL RING $99.41 To Order
Photo Part No Description Price (each) Stock
206412 SEAL RING $145.61 To Order
Photo Part No Description Price (each) Stock
212820 OIL SCRAPER RING $99.41 To Order
Photo Part No Description Price (each) Stock
178890 LOCK RING $9.40 To Order
Photo Part No Description Price (each) Stock
198260 PIN $66.78 To Order
Photo Part No Description Price (each) Stock
215530 CONNECTING ROD TIGHTENING SCREW $73.09 To Order
218371 CONNECTING ROD TIGHTENING SCREW $43.21 IN STOCK
Photo Part No Description Price (each) Stock
204291 CONNECTING ROD HALF-BEARING BLUE $10.35 To Order
261719 CONNECTING ROD HALF-BEARING $111.48 To Order
204290 CONNECTING ROD HALF BEARING RED $52.70 IN STOCK
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
215252 CYLINDERS LINER $1,117.09 To Order
243339 CYLINDERS LINER $724.80 To Order
Photo Part No Description Price (each) Stock
186251 GASKET $5.90 IN STOCK
Photo Part No Description Price (each) Stock
236813 PISTONS COOLING NOZZLE $18.59 To Order
Photo Part No Description Price (each) Stock
11181474 WASHER $1.56 To Order
Photo Part No Description Price (each) Stock
14302921 SCREW $1.56 To Order
Photo Part No Description Price (each) Stock
224608 CENTERING PIN $3.76 To Order
Photo Part No Description Price (each) Stock
103877 GROOVED BALL BEARING D.30-35 $38.46 To Order
Photo Part No Description Price (each) Stock
14325540 THREADED PLUG $6.74 To Order
View All

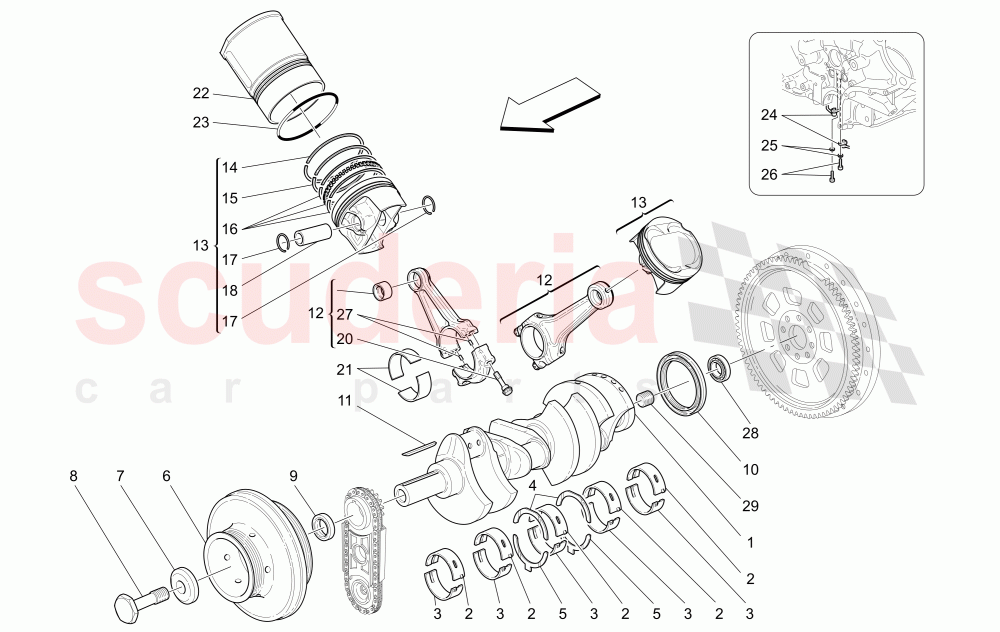

CRANK MECHANISM of Maserati Maserati GranTurismo (2008-2010) S Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 275214
CRANKSHAFT 		$2,297.74 1
1 275214
CRANKSHAFT
IN CASE OF REPLACEMENT OF THE CRANKSHAFT, PLEASE REPLACE ALL ROD AND CRANKCASE BUSHINGS 		$2,297.74 1
2 286834
Upper Main Half-Bearing Green
Green - Standard
IN STOCK 		$39.04 5
2 268866
UPPER HALF-BEARING
Green - Standard 		$135.17 5
2 286832
UPPER MAIN HALF BEARING BLUE
Blue 		$23.60 5
2 268864
UPPER HALF-BEARING
Blue 		$19.38 5
2 286833
UPPER HALF-BEARING
Yellow 		$14.97 5
2 268865
UPPER HALF-BEARING
Yellow 		$19.38 5
3 286838
LOWER HALF-BEARING
Green - Standard
IN STOCK 		$174.63 1
3 268871
Lower Half-Bearing
Green - Standard 		$131.21 5
3 286836
LOWER HALF-BEARING BLU
Blue 		$15.57 5
3 268869
LOWER HALF-BEARING
Blue 		$18.07 5
3 286837
LOWER HALF-BEARING
Yellow 		$16.28 5
3 268870
LOWER HALF-BEARING
Yellow 		$17.67 5
4 261727
SHIM WASHER 		$98.75 2
5 261727
SHIM WASHER 		$98.75 2
6 258347
TORSION DAMPER
IN STOCK 		$1,107.92 1
7 263683
WASHER 		$16.70 1
8 196216
Screw For Damper Fixing 		$84.15 1
9 188717
Front Crankshaft Seal D.48-65
IN STOCK 		$37.83 1
10 200323
REAR MAIN OIL SEALING RING D.80-100X10
IN STOCK 		$45.78 1
11 186201
TAB
IN STOCK 		$3.17 1
12 244887
CONNECTING ROD SHAFT AND CAP ASSEMBLY 		- 8 Enquire
12 281167
CONNECTING ROD SHAFT AND CAP ASSEMBLY 		$167.51 8
12 268163
CONNECTING ROD SHAFT AND CAP ASSEMBLY
Specify car serial number in the order 		$175.62 8
13 237132
LH SIDE ENGINE PISTON WITH RINGS 		$2,603.58 (22.2% off) 1
13 244740
LH SIDE ENGINE PISTON WITH RINGS
IN STOCK 		$708.90 (30.5% off) 1
13 237131
RH SIDE ENGINE PISTON WITH RINGS 		$2,603.58 (22.2% off) 1
13 244739
RH SIDE ENGINE PISTON WITH RINGS 		$961.91 (5.8% off) 1
14 206411
SEAL RING
1st groove 		$99.41 (4.6% off) 8
15 206412
SEAL RING
2nd groove 		$145.61 8
16 212820
OIL SCRAPER RING
3nd groove 		$99.41 (4.6% off) 8
17 178890
LOCK RING 		$9.40 16
18 198260
PIN 		$66.78 (7.6% off) 8
20 215530
CONNECTING ROD TIGHTENING SCREW 		$73.09 16
20 218371
CONNECTING ROD TIGHTENING SCREW
IN STOCK 		$43.21 16
21 204291
CONNECTING ROD HALF-BEARING BLUE
Blue 		$10.35 16
21 261719
CONNECTING ROD HALF-BEARING
Blue 		$111.48 16
21 204290
CONNECTING ROD HALF BEARING RED
Red - Standard
IN STOCK 		$52.70 16
21 261718
CONNECTING ROD HALF-BEARING
Red - Standard 		$25.20 16
21 204292
CONNECTING ROD HALF-BEARING
Black 		$39.46 16
21 261720
CONNECTING ROD HALF-BEARING
Black 		$25.20 16
22 215252
CYLINDERS LINER 		$1,117.09 8
22 243339
CYLINDERS LINER 		$724.80 8
23 186251
GASKET
IN STOCK 		$5.90 24
24 236813
PISTONS COOLING NOZZLE 		$18.59 8
25 11181474
WASHER 		$1.56 8
26 14302921
SCREW 		$1.56 8
27 224608
CENTERING PIN 		$3.76 4
28 103877
GROOVED BALL BEARING D.30-35 		$38.46 1
29 14325540
THREADED PLUG 		$6.74 (36.5% off) 1
