Crankcase

Maserati GranTurismo (2008-2010) S

Find Your Part

Maserati GranTurismo (2008-2010) S - CRANKCASE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
230733 ENGINE BLOCK $3,178.23 To Order
239671 ENGINE BLOCK $3,063.67 To Order
281182 ENGINE BLOCK $3,759.51 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
282753 THREADED PLUG $8.27 To Order
Photo Part No Description Price (each) Stock
176421 CENTERING DOWEL $9.10 To Order
Photo Part No Description Price (each) Stock
217794 STUD $58.40 To Order
219800 STUD $264.78 To Order
217796 STUD $58.40 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
133988 HEX NUT M10 X 1.25 X 8 $1.90 IN STOCK
Photo Part No Description Price (each) Stock
178348 WASHER D.10.2-20 X 2 $3.87 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW M6 X 25 $1.73 IN STOCK
231625 SCREWM6X50 $2.53 To Order
Photo Part No Description Price (each) Stock
268886 CABLE FOR ENGINE-FRAME EARTH $72.33 To Order
Photo Part No Description Price (each) Stock
307477 THREADED PLUG $3.95 To Order
Photo Part No Description Price (each) Stock
10263460 COPPER GASKET D.28-22.3 X 1.5 $1.83 IN STOCK
Photo Part No Description Price (each) Stock
802590 STUD Enquire To Order
Photo Part No Description Price (each) Stock
185360 CENTERING DOWEL $6.59 IN STOCK
Photo Part No Description Price (each) Stock
13546934 STUD $3.18 To Order
254979 STUD Enquire To Order
254982 STUD Enquire To Order
Photo Part No Description Price (each) Stock
100052 CENTERING DOWEL $5.88 To Order
Photo Part No Description Price (each) Stock
177727 CENTERING DOWEL $5.88 To Order
Photo Part No Description Price (each) Stock
231335 GASKET $7.54 To Order

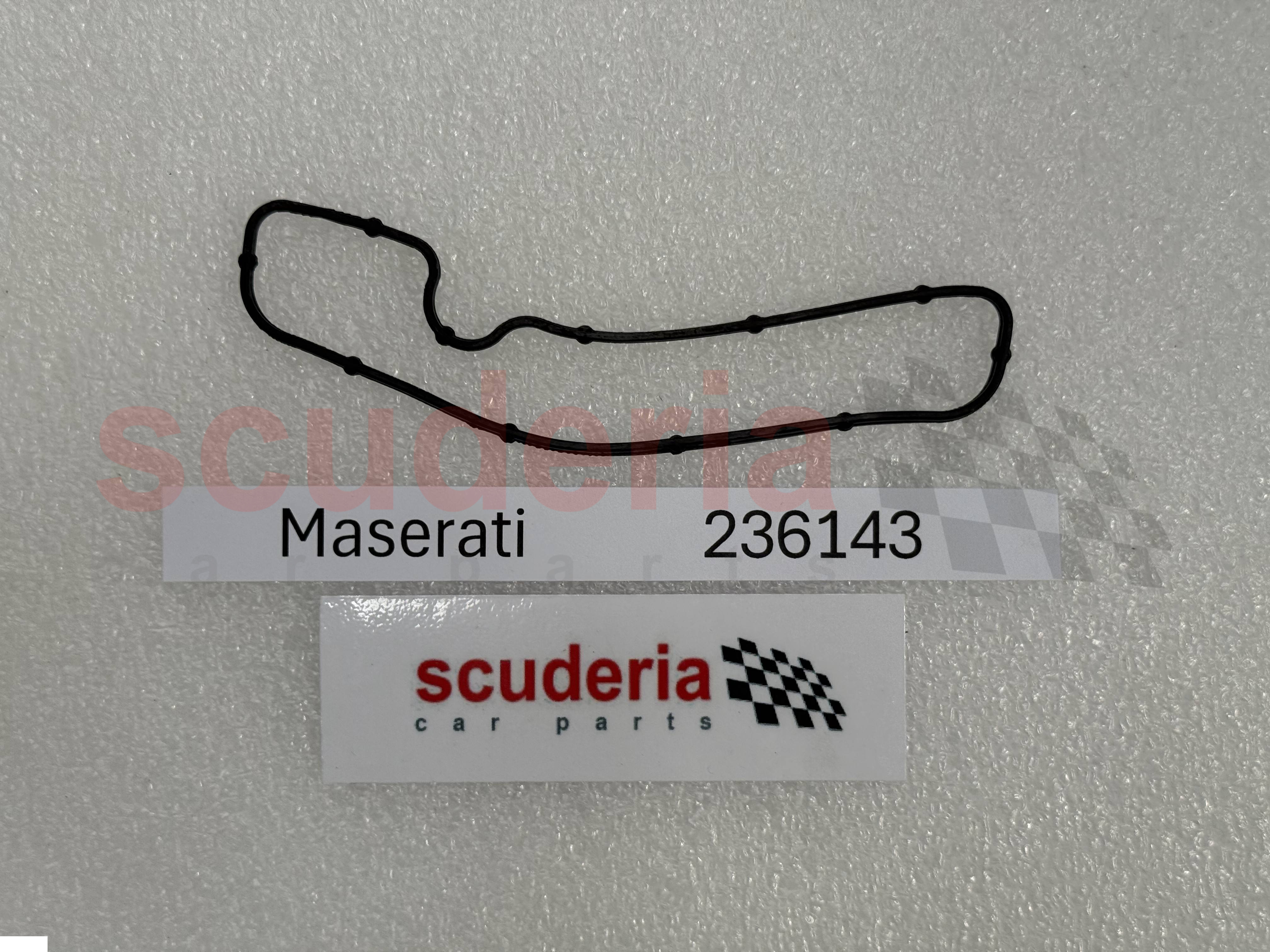

236143 GASKET CRANKCASE $10.71 IN STOCK
Photo Part No Description Price (each) Stock
140071 O-RING 3 X 3 X 1 $1.82 IN STOCK
Photo Part No Description Price (each) Stock
222317 L.H. BRACKET FORMOTOR FIXING $126.61 To Order
222316 R.H. BRACKET FORMOTOR FIXING $126.61 To Order
Photo Part No Description Price (each) Stock
11306934 SCREW $4.04 To Order
Photo Part No Description Price (each) Stock
11190574 WASHERD.10.5-20X2.3 $1.76 IN STOCK
Photo Part No Description Price (each) Stock
226572 Engine Mounting $437.32 ARRIVING SOON
Photo Part No Description Price (each) Stock
177018 NUT $2.65 To Order
Photo Part No Description Price (each) Stock
177764 NUT $1.76 IN STOCK
Photo Part No Description Price (each) Stock

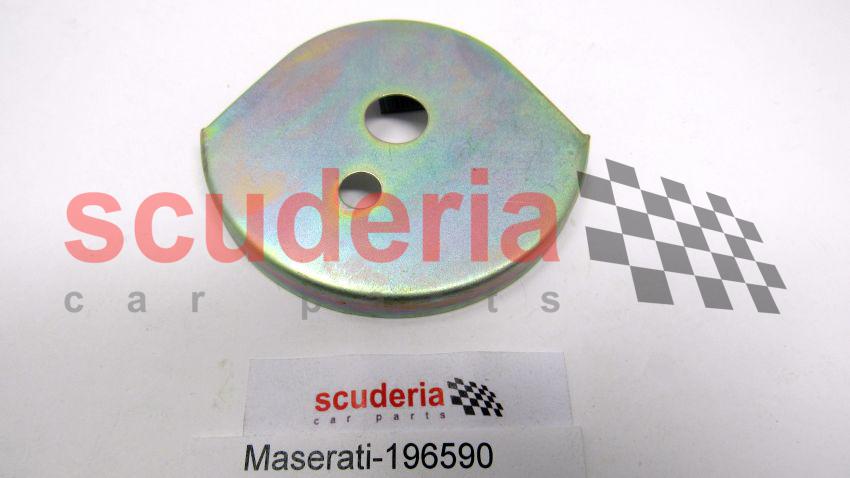

196590 UPPER PROTECTION FOR ENGINE PAD $8.10 IN STOCK
Photo Part No Description Price (each) Stock
198530 BRACKET $139.47 IN STOCK
Photo Part No Description Price (each) Stock
227526 LH HEAT SHIELD $119.35 To Order
227525 RH HEAT SHIELD $132.27 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.34 IN STOCK
Photo Part No Description Price (each) Stock
13833011 SCREW $2.15 To Order
Photo Part No Description Price (each) Stock
255138 BLOW BY VALVE ASSEMBLY $73.19 To Order
Photo Part No Description Price (each) Stock
14303123 SCREW $1.56 To Order
View All
CRANKCASE of Maserati Maserati GranTurismo (2008-2010) S Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 739008000
ENGINE ASSEMBLY
Specify crankshaft spare parts in the order 		$30,979.13 (32.4% off) 1
- 739018000
ENGINE ASSEMBLY
Specify crankshaft spare parts in the order 		$27,293.94 1
1 230733
ENGINE BLOCK 		$3,178.23 (14.5% off) 1
1 239671
ENGINE BLOCK 		$3,063.67 (14.6% off) 1
1 281182
ENGINE BLOCK
Specify car serial number in the order 		$3,759.51 1
1 281187
ENGINE BLOCK
Specify car serial number in the order 		$4,529.69 1
2 282753
THREADED PLUG 		$8.27 2
3 176421
CENTERING DOWEL 		$9.10 2
4 217794
STUD
Lenght 154mm 		$58.40 8
4 219800
STUD
Lenght 184mm 		$264.78 2
4 217796
STUD
Lenght 139mm 		$58.40 8
4 219801
STUD
Lenght 169mm 		$14.95 (40.3% off) 2
5 133988
HEX NUT M10 X 1.25 X 8
M10
IN STOCK 		$1.90 20
6 178348
WASHER D.10.2-20 X 2
D.10.2-20X2.4
IN STOCK 		$3.87 20
7 231620
SCREW M6 X 25
M6X25 M 6X25
IN STOCK 		$1.73 13
7 231625
SCREWM6X50
M6X40 M 6X40 		$2.53 2
8 268886
CABLE FOR ENGINE-FRAME EARTH 		$72.33 1
9 307477
THREADED PLUG 		$3.95 1
10 10263460
COPPER GASKET D.28-22.3 X 1.5
IN STOCK 		$1.83 1
11 802590
STUD 		- 20 Enquire
12 185360
CENTERING DOWEL
IN STOCK 		$6.59 4
13 13546934
STUD
Stud Bolt Lenght 50mm 		$3.18 5
13 254979
STUD
Stud Bolt Lenght 55mm 		- 1 Enquire
13 254982
STUD
Stud Bolt Lenght 60mm 		- 2 Enquire
14 100052
CENTERING DOWEL 		$5.88 2
15 177727
CENTERING DOWEL 		$5.88 2
16 231335
GASKET 		$7.54 (1.8% off) 2
16 236143
GASKET CRANKCASE
IN STOCK 		$10.71 2
17 140071
O-RING 3 X 3 X 1
IN STOCK 		$1.82 1
18 222317
L.H. BRACKET FORMOTOR FIXING 		$126.61 (30% off) 1
18 222316
R.H. BRACKET FORMOTOR FIXING 		$126.61 (30% off) 1
19 11306934
SCREW
TE M 10X1,25X 30 		$4.04 8
20 11190574
WASHERD.10.5-20X2.3
D.10.5-20X2.3
IN STOCK 		$1.76 8
21 226572
Engine Mounting
ARRIVING SOON 		$437.32 2
22 177018
NUT 		$2.65 2
23 177764
NUT
IN STOCK 		$1.76 4
24 196590
UPPER PROTECTION FOR ENGINE PAD
IN STOCK 		$8.10 (3.2% off) 2
25 198530
BRACKET
IN STOCK 		$139.47 2
26 227526
LH HEAT SHIELD 		$119.35 1
26 227525
RH HEAT SHIELD 		$132.27 1
27 14039614
NUT
M6
IN STOCK 		$1.34 2
28 13833011
SCREW 		$2.15 2
29 255138
BLOW BY VALVE ASSEMBLY 		$73.19 4
30 14303123
SCREW 		$1.56 8
